Grid-Tie Solar Inverters: A Comprehensive Guide to On-Grid Solar Power

1.Introduction to Grid-Tie Solar Inverters

As the global shift toward clean and renewable energy accelerates, solar power has emerged as one of the most accessible and scalable solutions. Among the core components of any solar energy system is the inverter, a device that plays a pivotal role in harnessing and utilizing the sun’s energy. Specifically, grid-tie inverters—also known as on-grid inverters—are critical in residential, commercial, and utility-scale solar applications where the system is connected to the public electricity grid.

1.1 What is a Grid-Tie Inverter?

A grid-tie inverter is an electronic device that converts the direct current (DC) electricity produced by solar panels into alternating current (AC) electricity that matches the voltage and frequency of the local utility grid. This transformation is essential because most homes and businesses operate on AC power, and the utility grid itself distributes electricity in this form.

More importantly, grid-tie inverters are designed to synchronize precisely with the grid’s electrical waveform, enabling seamless energy flow between the solar power system and the utility network. This allows homeowners and businesses to consume solar energy in real time and export surplus electricity back to the grid, often earning credits or payments in return.

1.2 Why are Grid-Tie Inverters Important for Solar Power Systems?

Grid-tie inverters are the heart of modern solar power systems connected to the utility grid. Their importance lies in several key functions:

Energy Conversion: They convert unusable DC from solar panels into usable AC for household appliances or grid distribution.

System Efficiency: Modern grid-tie inverters use technologies like Maximum Power Point Tracking (MPPT) to ensure that solar panels operate at their highest efficiency.

Grid Integration: These inverters ensure that the solar system complies with grid standards for voltage, frequency, and safety.

Financial Incentives: Through programs like net metering, grid-tie inverters allow users to feed excess energy into the grid and offset electricity costs, making solar adoption more economically attractive.

1.3 Brief Overview of On-Grid Solar Systems

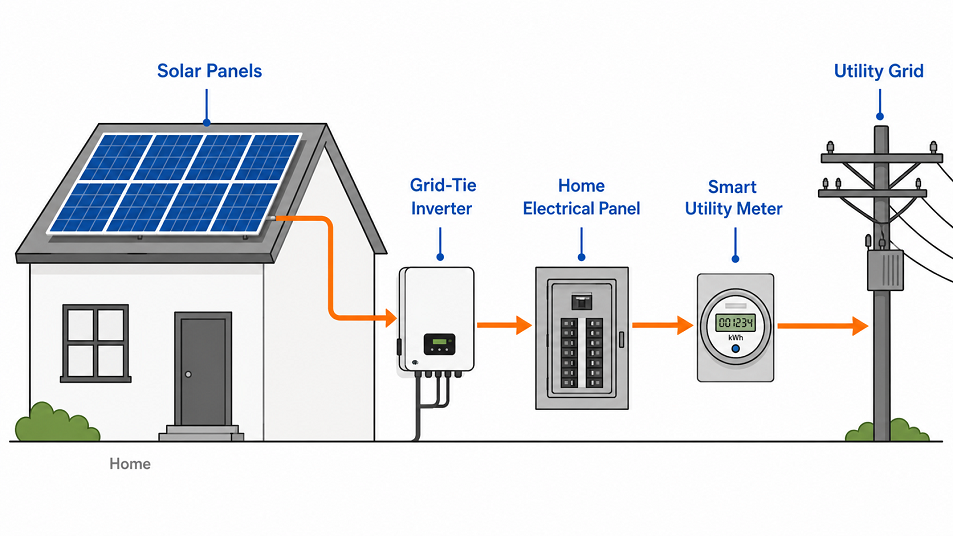

An on-grid or grid-tied solar system is one that is connected to the public electricity grid. These systems typically consist of:

Solar photovoltaic (PV) panels to capture sunlight.

Grid-tie inverter to convert and manage electricity.

Net meter to track energy imports and exports between the home and the grid.

Unlike off-grid systems, which require energy storage (batteries) to function independently, grid-tied systems draw from the utility grid when solar production is low and send excess power back to the grid when production exceeds consumption. This dual flow ensures continuous power availability without the added complexity or cost of battery storage.

Grid-tied systems are particularly popular in urban and suburban areas with reliable grid access. They are typically more affordable, require less maintenance, and can significantly reduce electricity bills while contributing to a greener energy future.

2. How Grid-Tie Inverters Work

At the heart of a grid-tied solar power system is the inverter—an intelligent device that does far more than just convert electricity. It ensures optimal performance, seamless grid integration, and safety for both the user and the broader utility network. Understanding how grid-tie inverters operate provides insight into their critical role in making solar energy practical and efficient.

2.1 DC to AC Conversion Process

Solar panels generate electricity in the form of direct current (DC), where electrons flow in a single direction. However, most electrical appliances and the utility grid operate on alternating current (AC), where the flow of electricity periodically reverses direction. The grid-tie inverter’s primary job is to perform this DC to AC conversion.

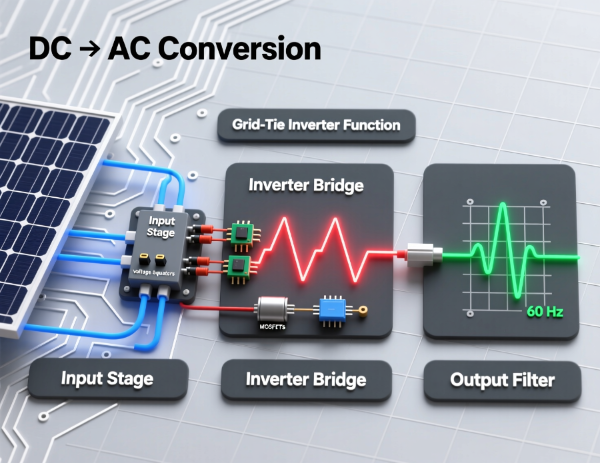

This process involves several internal components:

Input stage that conditions the DC input.

Inverter bridge that rapidly switches electronic components to simulate an AC waveform.

Output filter to smooth the waveform and match the grid’s voltage and frequency.

The result is a clean, grid-compatible AC output that can power a home or business or be exported to the public grid.

2.2 Role of MPPT (Maximum Power Point Tracking)

Solar panel output fluctuates based on sunlight, temperature, and shading. To ensure maximum energy extraction at all times, grid-tie inverters use a technology called Maximum Power Point Tracking (MPPT).

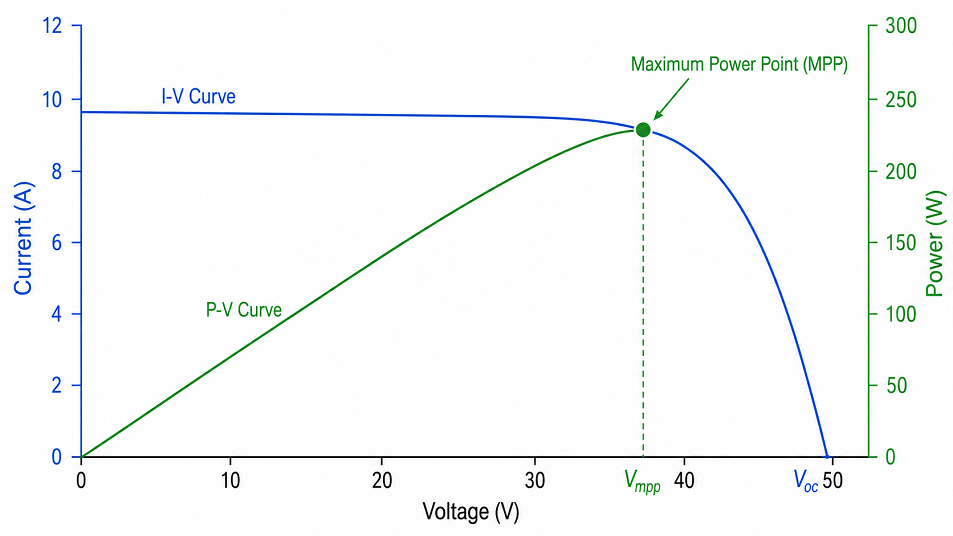

MPPT continuously adjusts the electrical operating point of the panels to find the "sweet spot"—the maximum power point—where the combination of voltage and current yields the highest possible wattage. By dynamically tracking and adjusting to this point in real time, the inverter maximizes the energy harvested from the sun throughout the day.

This feature is especially important in systems with multiple panels experiencing different conditions (e.g., partial shading or orientation differences).

2.3 Synchronization with the Power Grid

For a grid-tied solar system to function safely and effectively, the inverter must synchronize its output with the grid’s voltage, frequency, and phase. This synchronization ensures that the power sent to the grid is in perfect harmony with the utility's electricity, preventing interference or damage.

Key synchronization functions include:

Voltage matching: Ensuring the inverter’s AC output matches the grid’s voltage (typically 120V or 240V).

Frequency matching: Matching the grid’s frequency, usually 50 Hz or 60 Hz depending on the country.

Phase alignment: Aligning the timing of the voltage wave with the grid to ensure smooth energy flow.

In the event of a grid outage, the inverter automatically shuts down its output to prevent “islanding,” a dangerous condition where the system could continue feeding electricity into a de-energized grid. This is a crucial safety feature mandated by electrical standards.

3. Key Features and Components

Modern grid-tie solar inverters are not only efficient power converters—they're intelligent, safety-conscious, and communication-ready devices. Understanding their key features and internal components is essential for selecting the right inverter and ensuring long-term performance.

3.1 Inverter Efficiency and Performance Metrics

One of the most important factors when evaluating a grid-tie inverter is its efficiency—the percentage of DC power from the solar panels that is successfully converted into usable AC power. Most high-quality grid-tie inverters operate at efficiencies between 95% and 98%.

Key performance metrics include:

Peak Efficiency: The highest conversion efficiency the inverter can achieve under optimal conditions.

European Efficiency: A weighted average that accounts for varying solar conditions, giving a more realistic performance measure.

CEC Efficiency: Used by the California Energy Commission; this is another standardized way of evaluating inverter performance across different loads.

Higher efficiency means less energy is lost as heat and more electricity is available for use or export to the grid.

3.2 Voltage and Current Ratings

Each inverter has specific input and output voltage and current ranges that must align with the solar panel array and the utility grid. Key specifications include:

DC Input Voltage Range: This must match the combined voltage of the solar panel strings.

Maximum Power Input: The total wattage the inverter can safely handle.

AC Output Voltage: Typically 120V/240V for residential or 208V/480V for commercial systems.

Maximum Output Current: Determines how much current the inverter can supply to the grid.

Properly matching the inverter’s electrical ratings to your solar system ensures safety, performance, and code compliance.

3.3 Safety Features: Anti-Islanding Protection

Anti-islanding protection is a mandatory safety feature in all grid-tie inverters. In the event of a power outage, the inverter must immediately shut off its output to prevent electricity from flowing into the grid. This is vital for the safety of utility workers who may be repairing lines and assume they are de-energized.

Other common safety features include:

Ground fault detection

Overvoltage and overcurrent protection

Temperature monitoring and shutdown

Arc fault detection

These features ensure the system operates safely and reliably in all conditions.

3.4 Communication Interfaces (e.g., Wi-Fi, Ethernet)

Modern grid-tie inverters often come equipped with built-in or optional communication modules that allow users to monitor and manage system performance in real time.

Common interfaces include:

Wi-Fi for wireless monitoring via mobile apps or web dashboards.

Ethernet for stable, wired connections to home networks.

RS485 or Modbus for integration with third-party monitoring or building energy management systems.

These tools allow system owners and installers to:

Track daily, monthly, and lifetime energy production.

Receive performance alerts and diagnostics.

Monitor environmental impact, such as CO₂ savings.

Advanced inverters may also support remote firmware updates and integration with smart home or energy storage systems.

4. Benefits of Using Grid-Tie Inverters

Grid-tie inverters offer more than just a technical solution for converting solar energy—they unlock a range of economic, environmental, and practical advantages. These benefits make them a smart choice for homeowners, businesses, and institutions looking to harness solar power efficiently.

4.1 Cost Savings through Net Metering

One of the most significant financial incentives for using a grid-tie solar inverter is net metering. This billing arrangement allows solar system owners to export excess electricity to the utility grid and receive credits on their energy bill.

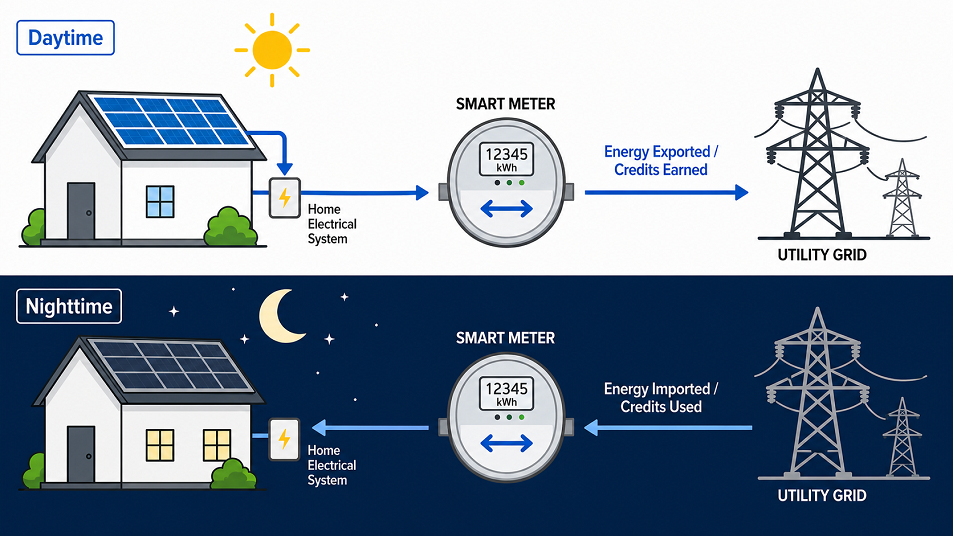

Here’s how it works:

During the day, your solar panels may produce more electricity than your home consumes.

The grid-tie inverter feeds this surplus energy back into the power grid.

Your utility meter “spins backward,” earning you credits for the excess energy.

At night or during low sunlight periods, you draw power from the grid using those credits.

This setup can significantly reduce or even eliminate electricity bills, leading to faster return on investment for the solar system.

4.2 Reducing Carbon Footprint

By enabling clean solar energy to be used in place of fossil fuel-generated electricity, grid-tie inverters help significantly reduce greenhouse gas emissions. Every kilowatt-hour (kWh) of solar power used:

Lowers dependence on coal, natural gas, and other polluting energy sources.

Reduces the carbon footprint of your household or business.

Contributes to climate change mitigation efforts.

For environmentally conscious individuals and organizations, investing in grid-tied solar with a reliable inverter is a powerful way to align daily energy use with sustainability goals.

4.3 Energy Independence

Grid-tie systems empower users to generate their own electricity, reducing reliance on centralized power generation and fluctuating utility prices. While these systems still depend on the grid to function (especially in the absence of energy storage), they:

Allow partial autonomy by producing power locally.

Protect against rising energy costs over time.

Increase resilience when paired with battery storage or hybrid inverter systems.

This level of energy independence is especially valuable in regions with high electricity rates or incentives for distributed energy generation.

5. Types of Grid-Tie Inverters

Grid-tie inverters come in various designs to accommodate different system sizes, layouts, and performance goals. Each type has its own advantages and is suited to specific applications. Understanding these options can help ensure you choose the right inverter for your solar installation.

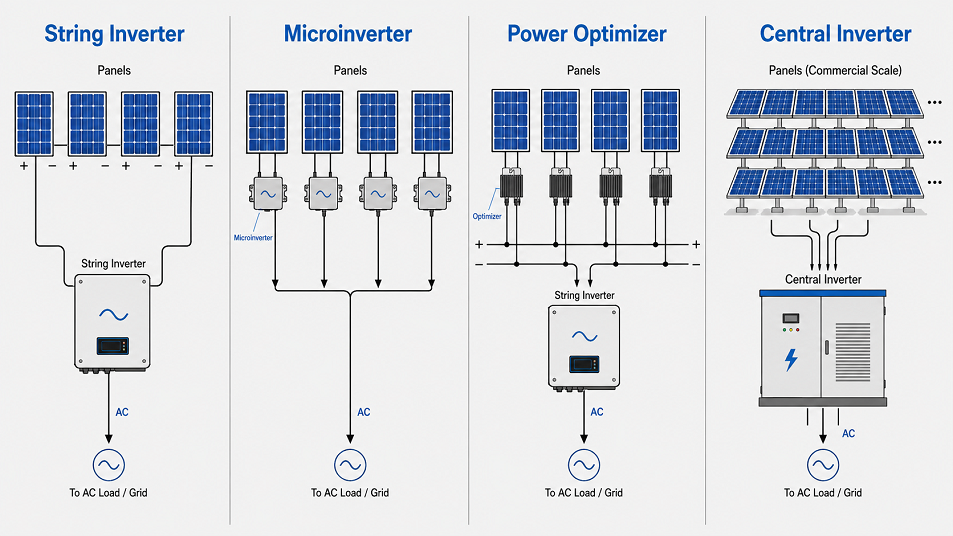

5.1 String Inverters

String inverters are the most common type used in residential and small commercial systems. In this setup, multiple solar panels are connected in a series (called a “string”), and the combined DC output is fed into a single inverter.

Advantages:

Cost-effective and simple to install.

Suitable for rooftops with uniform panel orientation and minimal shading.

Limitations:

Performance of the entire string can be affected if one panel is shaded or underperforming.

Less flexible in installations with complex roof designs or mixed panel orientations.

5.2 Microinverters

Microinverters are small inverters mounted directly on the back of each individual solar panel. Instead of converting power at a central location, each panel has its own inverter.

Advantages:

Panel-level optimization: Shading or failure on one panel does not affect others.

Ideal for rooftops with multiple orientations or partial shading.

Built-in panel-level monitoring.

Limitations:

Higher upfront cost compared to string inverters.

More components mean slightly more complex maintenance.

5.3 Power Optimizers

Power optimizers are a hybrid solution. Like microinverters, they are installed at the panel level, but instead of converting DC to AC, they condition and optimize the DC power before sending it to a central string inverter.

Advantages:

Enhanced performance through MPPT at each panel.

Combines the benefits of microinverters with the cost efficiency of string inverters.

Useful in partially shaded conditions.

Limitations:

Requires a compatible inverter (usually from the same manufacturer).

Slightly more complex wiring and installation.

5.4 Central Inverters

Central inverters are large-scale versions of string inverters, used primarily in commercial or utility-scale solar installations. They aggregate power from many strings of panels into one central unit.

Advantages:

Efficient and cost-effective for large systems.

High capacity (can handle hundreds of kilowatts or even megawatts).

Limitations:

Not suitable for residential or small installations.

Limited flexibility for panel-level optimization or performance monitoring.

6. Choosing the Right Grid-Tie Inverter

Selecting the appropriate grid-tie inverter is a critical step in designing an efficient and reliable solar power system. The right inverter not only ensures optimal performance but also affects long-term savings, system lifespan, and ease of maintenance. Here are some important factors to consider when making your choice.

6.1 Factors to Consider: System Size, Location, and Energy Needs

System Size: The inverter capacity should match the total power output of your solar panels. For smaller residential systems, string inverters or microinverters may be ideal, while larger commercial projects might require central inverters.

Location and Site Conditions: Roof orientation, shading, and climate affect inverter selection. Microinverters or power optimizers work better for roofs with shading or multiple orientations, while string inverters suit uniform, unshaded installations.

Energy Consumption Patterns: Analyze your typical energy usage and peak demand. This helps in sizing the inverter correctly and maximizing solar utilization.

6.2 Evaluating Inverter Specifications

Efficiency: Look for inverters with high peak and weighted efficiency ratings (above 95% is ideal).

Voltage and Current Ratings: Ensure the inverter’s input voltage range aligns with your panel configuration and the output matches your local grid voltage standards.

Safety Certifications: Check for compliance with industry standards such as UL 1741 and IEEE 1547, which guarantee safety and grid compatibility.

Monitoring Features: Choose inverters with integrated communication capabilities for real-time performance tracking and troubleshooting.

6.3 Brand Reputation and Warranty

Manufacturer Reputation: Opt for inverters from well-established brands known for reliability and support.

Warranty: A longer warranty (typically 10-15 years) provides peace of mind and indicates confidence in product durability.

Customer Support: Consider availability of technical support and ease of obtaining replacement parts or service.

7. Installation and Maintenance

Proper installation and ongoing maintenance are essential for maximizing the performance and lifespan of grid tie solar inverters. Whether you choose to hire professionals or attempt a DIY installation, understanding the key aspects involved helps ensure safety, compliance, and system reliability.

7.1 Professional Installation vs. DIY

Professional Installation: Most experts strongly recommend having your grid-tie inverter installed by licensed electricians or certified solar installers. Professional installation guarantees:

Compliance with local electrical codes and safety standards.

Proper wiring and grounding to prevent hazards.

Correct inverter configuration and synchronization with the grid.

Assistance with permits and inspections.

DIY Installation: While some inverters come with user-friendly guides, installing a grid-tie inverter yourself carries significant risks, including:

Potential for improper installation leading to system failure or safety hazards.

Voiding manufacturer warranties.

Non-compliance with utility and local regulations.

For safety and performance, professional installation is highly advised.

7.2 Regular Maintenance Tasks

Grid-tie inverters require minimal maintenance compared to other solar system components, but regular checks help prevent issues and extend system life:

Visual Inspection: Check for physical damage, corrosion, or debris around the inverter.

Cleaning: Keep the inverter and surrounding area free of dust and moisture buildup.

Firmware Updates: Ensure the inverter firmware is up to date for optimal performance and security.

Monitoring: Regularly review system performance through monitoring software or apps to detect anomalies early.

Ventilation: Make sure the inverter’s cooling system (fans or heat sinks) is functioning well to prevent overheating.

7.3 Troubleshooting Common Issues

While grid-tie inverters are generally reliable, some common problems may arise:

Inverter Not Starting or Shutting Down: Could indicate grid issues, faulty wiring, or safety shutdown triggered by anti-islanding protection.

Error Codes or Alerts: Most modern inverters provide diagnostic codes that help identify problems like overvoltage, communication errors, or temperature faults.

Reduced Output: May result from shading, dirty panels, or inverter malfunctions.

Communication Failures: Wi-Fi or Ethernet connections may occasionally drop, affecting remote monitoring.

8. Grid-Tie Inverters for Residential Solar Systems

Residential solar installations are among the most common applications of grid-tie inverters. These inverters enable homeowners to harness solar energy efficiently while remaining connected to the utility grid, offering both cost savings and environmental benefits.

8.1 Typical System Setup

A typical residential grid-tie solar system includes:

Solar panels installed on the roof or property to capture sunlight.

String inverters, microinverters, or power optimizers to convert and manage electricity.

Net meter to measure electricity sent to and drawn from the grid.

Electrical panel where the inverter’s AC output feeds into the home’s electrical system.

This setup allows homeowners to use solar power directly when available and draw from the grid when necessary, maintaining a continuous and reliable power supply.

8.2 Sizing the Inverter for Home Use

Proper inverter sizing is crucial for maximizing efficiency and preventing system issues:

Match inverter capacity to solar array size: Typically, the inverter’s rated output is sized close to the total wattage of the solar panels, often slightly undersized (around 80-125%) to optimize cost and efficiency.

Consider future expansion: If you plan to add more panels later, choose an inverter that can handle increased capacity or install multiple inverters.

Account for household energy usage patterns: Understanding when and how much electricity you use helps in selecting an inverter that can meet your peak demands without oversizing.

8.3 Real-World Examples and Case Studies

Many homeowners have successfully reduced their electricity bills and carbon footprints by installing grid-tied solar systems:

Example 1: A family in California installed a 6 kW solar system with microinverters. They experienced a 70% reduction in their monthly electricity costs and benefited from net metering credits.

Example 2: In Florida, a homeowner used string inverters paired with power optimizers to overcome partial shading from trees, resulting in a 15% higher energy yield compared to traditional string-only setups.

9. Grid-Tie Inverters for Commercial Solar Systems

Commercial solar installations often involve larger and more complex systems compared to residential setups. Grid-tie inverters used in these environments need to handle higher power capacities, offer advanced monitoring, and support scalability to meet growing energy demands.

9.1 Scalability and Inverter Options

Commercial systems can range from tens to thousands of kilowatts, requiring inverters that are scalable and adaptable:

Central Inverters are commonly used for large-scale commercial projects due to their ability to manage vast arrays of solar panels efficiently.

String Inverters with higher capacity ratings may be suitable for medium-sized commercial roofs or facilities.

Microinverters and Power Optimizers can be applied to commercial installations with complex roof layouts or shading challenges, providing panel-level optimization and monitoring.

Scalable inverter solutions allow businesses to expand their solar capacity over time without major equipment overhauls.

9.2 Monitoring and Management

Effective monitoring and management are critical in commercial solar systems to ensure consistent performance and maximize return on investment:

Advanced monitoring platforms provide real-time data on energy production, system health, and fault detection.

Remote management enables facility managers and solar service providers to quickly identify and resolve issues.

Integration with energy management systems (EMS) allows optimization of energy use across the entire commercial facility.

These capabilities help maintain operational efficiency, reduce downtime, and support sustainability goals.

9.3 Commercial Solar Incentives

Many governments and utilities offer specific incentives for commercial solar projects, including:

Tax credits and rebates that reduce upfront costs.

Performance-based incentives (PBIs) rewarding energy production.

Accelerated depreciation benefits to improve financial returns.

10. Safety Standards and Regulations

Grid-tie solar inverters must comply with strict safety standards and regulations to ensure they operate safely and reliably, both for users and utility workers. Adhering to these guidelines is essential for legal compliance, warranty validity, and overall system performance.

10.1 UL 1741 Compliance

UL 1741 is a widely recognized safety standard in North America for inverters, converters, and controllers used in distributed energy systems. This certification ensures that:

The inverter can safely disconnect from the grid during power outages (anti-islanding protection).

Electrical components are protected against hazards such as overvoltage, overcurrent, and short circuits.

The device meets rigorous testing for electrical, mechanical, and thermal safety.

Inverter manufacturers must obtain UL 1741 certification for their products to be accepted by most utilities and for eligibility in incentive programs.

10.2 IEEE 1547 Standards

The IEEE 1547 standard defines the technical requirements for interconnecting distributed energy resources (like solar inverters) with the electric grid. Key aspects include:

Voltage regulation: Inverters must maintain stable voltage levels on the grid.

Frequency control: Ensuring that inverters respond appropriately to grid frequency variations.

Anti-islanding detection: Quickly ceasing power export during grid disturbances.

Communication protocols: For interoperability with utility grid management systems.

Compliance with IEEE 1547 ensures the inverter operates harmoniously within the larger power grid infrastructure.

10.3 Local Electrical Codes

In addition to national and international standards, grid-tie inverters must comply with local electrical codes and regulations, which can vary by country, state, or municipality. These codes often dictate:

Installation practices and wiring methods.

Permitting and inspection procedures.

Utility interconnection requirements.

Working with licensed professionals familiar with local codes helps ensure a safe and legal solar installation.

11. Conclusion

Grid-tie solar inverters are a cornerstone technology in the transition toward clean, sustainable energy. They enable the efficient conversion of solar power into usable electricity, synchronize seamlessly with the utility grid, and unlock financial and environmental benefits for both residential and commercial users.

By understanding the different types of inverters, key features, and critical considerations for selection and installation, solar system owners can maximize their investment and contribute meaningfully to reducing carbon emissions. Compliance with safety standards and staying informed about emerging technologies ensures reliable and future-proof solar solutions.

Looking ahead, advancements in inverter efficiency, smart grid integration, and energy storage compatibility promise to make grid-tie inverters even more versatile and powerful. As renewable energy continues to grow, these inverters will remain essential components in building a resilient, clean energy future.

Whether you are a homeowner, business owner, or solar professional, embracing grid-tie inverter technology is a vital step toward energy independence and environmental stewardship.
