Connect an Inverter to a Battery: DIY Guide & Integrated Solutions

A reliable power backup system is a cornerstone of modern energy independence, whether for weathering grid outages or living off-grid. At the heart of this system lies the crucial connection between an inverter and a battery. This guide provides an in-depth look at how to safely and effectively inverter connect to battery , exploring everything from the feasibility of a DIY approach to the nuances of different system types and the benefits of integrated solutions.

1. Feasibility of Personal Operation: Can You Connect the Inverter to the Battery Yourself?

For many, the question of whether to undertake this task themselves is the first hurdle. The short answer is yes, a DIY connection is often possible, but it requires careful preparation and a realistic assessment of your skills.

1.1. Exploring the Possibility and Practicality of DIY Connections
Connecting an inverter to a battery can be a straightforward process if you are methodical and prioritize safety. The task involves creating a secure electrical circuit between the battery’s direct current (DC) output and the inverter’s DC input. For those comfortable with basic electrical principles, it’s a manageable project that can offer significant cost savings.

1.2. Tools and Materials Needed
A successful installation hinges on having the right equipment. Essential items include:

Wrenches or pliers for tightening terminal connections.
Properly sized cables (rated to handle the voltage and current).
Fuses or circuit breakers for overcurrent protection.
Insulated tools to prevent accidental shocks.
A multimeter to verify voltage and secure connections.
Protective gear, including safety glasses and gloves.

1.3. Common Challenges and When to Seek Professional Assistance
While a basic setup is achievable, complexities can arise. Challenges include calculating the correct cable gauge for your inverter’s wattage, ensuring proper ventilation to prevent overheating, and dealing with multiple batteries in a bank. If you are unfamiliar with electrical wiring, unsure about any step, or if your system is particularly large or complex, it is always best to consult a qualified electrician.

1.4. Required Skills and Assessing User Capability
The average user who can follow technical instructions carefully and has a basic understanding of electrical safety can likely handle this task. Key skills include the ability to distinguish between positive and negative terminals, securely tighten connections, and install safety devices like fuses. However, if you are hesitant or lack experience with electrical work, professional installation is the safer choice.

2. Understanding the Components

Before making any connections, it’s vital to understand the roles of the individual components and how they work together in a battery inverter system .

2.1. The Battery Inverter System: An Overview and Its Function
A battery inverter system’s primary role is to convert the DC electricity stored in a battery into alternating current (AC) electricity. This AC power is the standard form of electricity used by most household appliances. The inverter acts as the bridge, making the stored energy in your battery usable.

2.2. Inverters with Batteries: The Importance of a Combined System for Energy Efficiency
Pairing an inverter with a battery creates a powerful combination for energy management. This setup allows you to store energy—either from the grid during off-peak hours or from renewable sources like solar panels—and use it whenever you need it. This synergy enhances energy self-sufficiency, provides reliable backup power during outages, and can lead to significant savings on electricity bills.

2.3. The Battery in the Inverter: How It Is Housed and Functions
In a typical setup, the battery is a separate unit connected to the inverter via cables. The battery in inverter systems functions by storing electrical energy in a chemical form. When the inverter is active, it draws this stored DC energy from the battery to begin the conversion process to AC power. Some modern solutions offer an all-in-one design where the inverter and battery are integrated into a single, compact unit.

3. Steps to Connect the Inverter to the Battery

Connecting your inverter and battery correctly is crucial for both safety and performance. Following these steps will help ensure a secure and efficient setup.

3.1. A Simple Step-by-Step Guide

Safety First: Before you begin, ensure the inverter is switched off and disconnected from any power source.
Connect the Positive Cable: Attach the red (positive) cable to the positive terminal on the battery and then to the positive terminal on the inverter. Ensure the connections are tight.
Connect the Negative Cable: Attach the black (negative) cable to the negative terminal on the battery and then to the negative terminal on the inverter.
Install a Fuse: For safety, it’s highly recommended to install a fuse or circuit breaker on the positive cable, close to the battery. This protects against overloads and short circuits.
Double-Check Connections: Verify that all connections are secure and that the polarity is correct (positive to positive, negative to negative). Reversing the polarity can cause serious damage to your equipment.

3.2. Safety Precautions

Always wear appropriate safety gear.
Work in a well-ventilated area, as batteries can release hydrogen gas.
Use insulated tools to prevent accidental short circuits.
Never smoke or create sparks near the battery.

3.3. Common Mistakes to Avoid

Using Undersized Cables: Cables that are too thin can overheat and cause a fire hazard.
Reversing Polarity: Connecting the positive and negative terminals incorrectly can permanently damage the inverter and battery.
Loose Connections: Poor connections can lead to inefficient power transfer and potentially create sparks.
Skipping Fuses: Failing to install a fuse or circuit breaker leaves your system vulnerable to power surges.

4. Why Integrated Solutions are Worth Considering: A Recommendation for Easy Setup and Reliability

After learning how to connect an inverter and battery, the next logical step is deciding on the right type of system. Traditionally, this meant buying separate components—a choice that offers customization but comes with significant complexity. You would need to select not just a battery, but also a specific type of inverter, such as a dedicated energy storage inverter for grid-tied charging or a sophisticated solar hybrid inverter with battery management capabilities to handle inputs from panels, the grid, and the battery bank. Building a functional house inverter with battery from these individual parts requires careful matching to ensure compatibility and avoid performance bottlenecks.

This is where modern integrated systems present a far more compelling alternative for most users.

4.1. Recommending Integrated Inverter-Battery Systems for Simplicity and Efficiency

For users seeking a straightforward path to energy independence, we strongly recommend integrated, all-in-one systems. These units combine the inverter, battery, and charging electronics into a single, pre-configured package. They are designed for a "plug-and-play" experience, eliminating the guesswork and technical challenges associated with component-based setups.

4.2. Advantages of Integrated Systems

Choosing an integrated system over separate components offers numerous benefits that directly address the common pitfalls of DIY setups:

Easier Installation: With fewer components and simplified wiring, the installation process is dramatically faster and less prone to user error.
Guaranteed Compatibility: The internal components are engineered to work together seamlessly, ensuring the system operates at peak efficiency and reliability.
Optimized Performance: An all-in-one system is factory-tuned for optimal power conversion and battery management, delivering better overall performance than a mismatched set of components.
Enhanced Safety and Space-Saving: These units are tested as a complete system to meet safety standards and are typically designed to be compact and aesthetically pleasing, saving valuable space.

4.3. Explore How Streamlined Solutions Can Make the Process More Effective

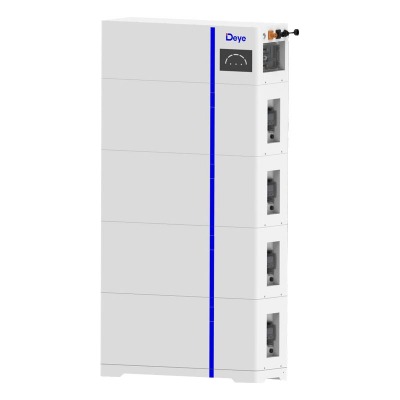

At UniZ Solar, we provide our all-in-one solutions to eliminate the complexities of connecting batteries and inverters. By integrating both the energy storage inverter and the high-capacity battery into a single, compact unit, we’ve made the setup process hassle-free. No more dealing with complicated wiring or compatibility issues—simply choose the model that fits your needs, and the system is ready for a seamless, efficient installation.

5. Troubleshooting and Maintenance Tips

Once your system is up and running, regular maintenance and knowing how to troubleshoot common issues will ensure its longevity and optimal performance.

5.1. Tips for Maintaining a Properly Connected System

Regular Inspections: Periodically check that all connections are tight and free of corrosion.
Keep it Clean: Ensure the inverter and battery are free from dust and debris, and that ventilation openings are not blocked.
Check Water Levels (for lead-acid batteries): If you have flooded lead-acid batteries, check the electrolyte levels regularly and top up with distilled water as needed.
Monitor Performance: Keep an eye on your system’s performance to catch any potential issues early.

5.2. How to Address Common Issues

Inverter Not Turning On: Check the battery connections, ensure the battery is charged, and verify that the fuse or circuit breaker has not tripped.
System Overload: If the inverter shuts down frequently, you may be trying to power too many appliances at once. Reduce the load and try again.
Communication Errors: In more advanced systems, communication issues between the inverter and the battery’s management system (BMS) can occur. This may require checking communication cables or ensuring protocol compatibility. In some cases, a simple restart of both the inverter and battery can resolve the issue.

6. Conclusion

Connecting an inverter to a battery is a foundational step in building a resilient and independent power system. By understanding the components, following safe installation practices, and performing regular maintenance, you can create an efficient and reliable source of power. Whether you choose a DIY approach with separate components or opt for the simplicity of an integrated solution, a properly connected battery inverter system will provide the energy security and peace of mind you need.
