Micro Inverters: Maximize Solar Efficiency

1.Introduction to Micro Inverters

Solar energy systems have become increasingly popular as a clean and sustainable way to generate electricity. At the heart of these systems lies a crucial component responsible for converting the direct current (DC) generated by solar panels into the alternating current (AC) used by household appliances and the power grid. This is where micro inverters come into play.

What Are Micro Inverters?

Micro inverters are small, compact devices that convert DC electricity generated by a single solar panel into AC electricity right at the panel itself. Unlike traditional string inverters—which handle the DC-to-AC conversion for a whole series of panels—micro inverters perform this task individually for each solar module. This modular approach offers greater control and efficiency on a per-panel basis.

How Micro Inverters Work: DC to AC Conversion at the Source

Each micro inverter is attached to the back of a solar panel. As the panel produces DC electricity from sunlight, the micro inverter immediately converts this DC power into AC power. This localized conversion at the source means that each panel operates independently. Therefore, issues affecting one panel, such as shading or dirt, do not drag down the performance of the entire solar array.

By performing DC to AC conversion right at the panel, micro inverters enable maximum energy harvest and improve system reliability.

Brief History and Evolution of Micro Inverter Technology

Micro inverter technology has evolved significantly since its introduction in the early 2000s. Initially, solar systems predominantly used centralized string inverters due to lower upfront costs and simpler designs. However, advancements in semiconductor technology, miniaturization, and power electronics allowed micro inverters to become more affordable and efficient.

Today, micro inverters are widely used in residential and commercial solar installations, especially where shading, complex roof layouts, or module-level monitoring are priorities. Their evolution continues as manufacturers enhance efficiency, reliability, and integration with smart energy management systems.

2.Advantages of Using Micro Inverters

Micro inverters have gained popularity in the solar industry because they offer several distinct advantages over traditional string inverters. These benefits make them a compelling choice for many residential and commercial solar installations.

Increased Energy Production

One of the primary benefits of micro inverters is their ability to maximize energy production. Since each micro inverter operates independently with its respective solar panel, the overall system can continue to produce electricity even if one panel is underperforming due to shading, dirt, or damage. This independence minimizes energy losses that typically occur in string inverter systems, where the performance of the entire string is affected by the weakest panel.

Module-Level Maximum Power Point Tracking (MPPT)

Micro inverters feature module-level MPPT, which optimizes the power output of each individual solar panel. This means each panel operates at its own ideal voltage and current conditions to extract the maximum possible power. In contrast, string inverters apply MPPT to the entire string, which can reduce efficiency when panels have different orientations or shading conditions.

Improved Performance in Shaded Conditions

Shading is one of the biggest challenges in solar energy systems. Even partial shading on one panel can significantly reduce the output of an entire string inverter system. Micro inverters mitigate this problem by isolating the impact of shading to the affected panel only. This ensures that the rest of the solar array continues to perform optimally.

Enhanced Safety Features

Because micro inverters convert DC to AC at the panel, they reduce the amount of high-voltage DC wiring running through the installation. This improves safety by minimizing the risk of electrical arcs and shocks, which can be a concern with traditional string inverter setups that handle higher DC voltages.

Simplified System Design and Installation

Micro inverters simplify the design and installation process for solar systems. Since each panel has its own inverter, system expansion is easier and more flexible. Installers do not need to match panel strings to specific inverter sizes, and the modular design allows for incremental additions without major system reconfiguration.

Module-Level Monitoring and Diagnostics

Many micro inverter systems come with advanced monitoring capabilities that allow homeowners and installers to track the performance of each panel individually. This detailed insight helps quickly identify underperforming or faulty panels, facilitating faster maintenance and ensuring the system operates at peak efficiency over its lifetime.

3. Disadvantages of Using Micro Inverters

While micro inverters offer many benefits in solar energy systems, they also come with certain drawbacks. Understanding these limitations is essential for making an informed decision when designing or investing in a solar PV system.

Higher Upfront Costs
One of the most notable disadvantages of micro inverters is their higher initial cost. Since each solar panel requires its own inverter, the total number of inverters—and consequently, the installation expense—increases. This can make the upfront investment in a micro inverter system significantly higher compared to a string inverter setup, particularly for large-scale installations.

Although micro inverters can offer long-term savings through improved efficiency and monitoring, the initial price point may be a barrier for some homeowners or businesses.

Complexity in Troubleshooting
With more components in play, micro inverter systems can be more complex to troubleshoot. If a problem arises, identifying the faulty micro inverter can require additional diagnostic tools or monitoring software. While module-level monitoring often makes it easier to pinpoint performance issues, physical access to the affected panel—especially on a roof—can complicate repairs.

In contrast, string inverters typically have fewer components and centralized locations, which can simplify maintenance and replacement.

Potential for More Points of Failure
Each micro inverter is an electronic device exposed to the same environmental conditions as the solar panel—heat, cold, moisture, and UV radiation. The more devices installed, the greater the number of potential failure points. While most micro inverters are built to be durable and weather-resistant, the sheer quantity of units in a system increases the statistical likelihood that one might fail over time.

Additionally, since solar micro inverters are mounted directly on the back of solar panels, replacing them can be more labor-intensive than servicing a centrally located string inverter.

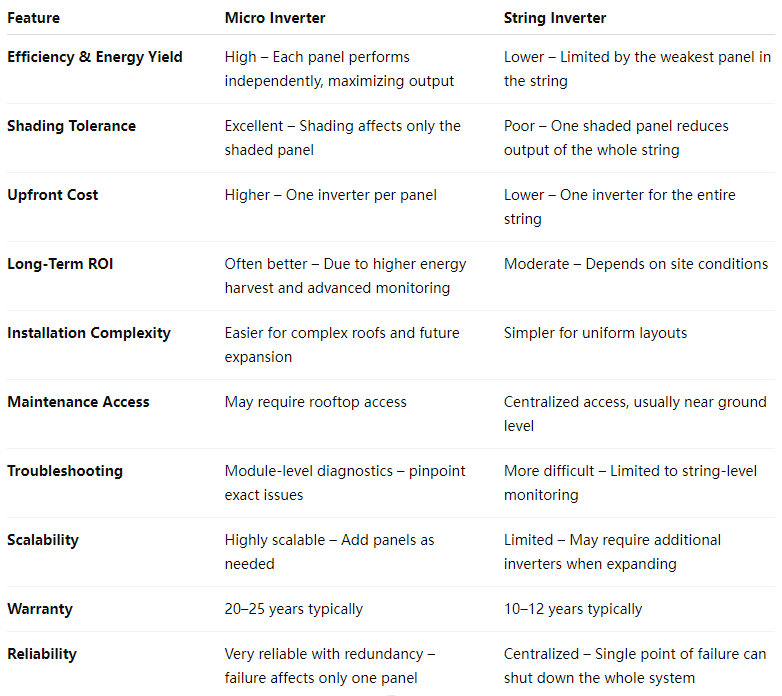

4.Micro Inverter vs. String Inverter: A Detailed Comparison

When designing a solar energy system, one of the most critical decisions is choosing between micro inverters and string inverters. Each technology has its strengths and trade-offs, and understanding the differences can help determine the most suitable solution for your specific needs.

Efficiency and Energy Yield
Micro inverters provide module-level power optimization, meaning each solar panel operates at its own maximum efficiency. This is particularly beneficial in scenarios where panels may be partially shaded or oriented in different directions. If one panel is underperforming, it doesn't affect the rest of the system—ensuring consistent and often higher overall energy yield.

In contrast, string inverters connect multiple panels in series, and the entire string operates at the level of the lowest-performing panel. This makes string inverters more vulnerable to shading, soiling, or panel mismatch, which can reduce overall system output.

Cost Analysis: Upfront vs. Lifetime
String inverters generally have a lower upfront cost and are simpler to install for systems with ideal conditions—such as unshaded, south-facing roofs. This makes them a cost-effective choice for large commercial systems or budget-conscious residential setups.

Micro inverters, while more expensive initially due to the need for one inverter per panel, often deliver better long-term value. The improved energy harvest, reduced impact of shading, and easier troubleshooting can translate into greater returns on investment over the life of the system.

Installation and Maintenance Differences
Micro inverters simplify installation for irregular roof layouts or phased expansions since each panel operates independently. This modular flexibility reduces design constraints. Additionally, maintenance is more streamlined, as monitoring systems can pinpoint issues to a specific panel and inverter.

However, servicing micro inverters may require rooftop access if a failure occurs, which could add labor time. That said, modern micro inverters are highly reliable and come with long warranties to offset this concern.

String inverters are installed in a centralized location, which makes them easier to access and replace. However, identifying the root cause of performance issues can be more time-consuming, as monitoring is typically limited to the entire string rather than individual panels.

Scalability and System Design Flexibility
One of the strongest advantages of micro inverters is scalability. They make it easy to expand a system incrementally—just add more panels and inverters without needing to reconfigure the entire system or worry about inverter sizing.

String inverters, on the other hand, require more upfront planning to ensure proper sizing and compatibility. Adding new panels often means re-evaluating inverter capacity or adding a second inverter.

Warranty and Reliability
Micro inverters typically come with longer warranties, often 20–25 years, reflecting their durability and panel-level deployment. Manufacturers have invested in making micro inverters robust to withstand outdoor conditions, and their decentralized nature ensures that a failure in one doesn’t compromise the whole system.

String inverters, while reliable, usually offer shorter warranties—around 10–12 years. Their centralized design means that if the inverter fails, the entire system goes offline until it is replaced or repaired.

5.Key Features to Consider When Choosing a Micro Inverter

Choosing the right micro inverter is essential for maximizing the performance, reliability, and long-term value of your solar energy system. While all micro inverters perform the same basic function—converting DC to AC—there are several key specifications and features that can greatly influence your system’s efficiency and durability.

Efficiency Ratings

One of the most important metrics to consider is the inverter efficiency, typically expressed as a percentage. This rating tells you how much of the solar panel's DC electricity is successfully converted into usable AC electricity. Most high-quality micro inverters have efficiencies between 95% and 97.5%. Even small differences in efficiency can have a significant impact on energy yield over the life of the system.

Operating Temperature Range
Micro inverters are installed outdoors and must endure varying weather conditions. It's critical to choose a model with a wide operating temperature range, especially if your region experiences extreme heat or cold. High ambient temperatures can reduce inverter efficiency and lifespan if the device is not designed to withstand such conditions.

Warranty Terms and Conditions
Micro inverters are a long-term investment, and a robust warranty is a good indicator of product reliability. Most reputable manufacturers offer warranties ranging from 10 to 25 years, aligning with the typical lifespan of solar panels. Be sure to read the fine print—some warranties may exclude certain types of damage or require specific installation practices to remain valid.

Grid Compliance and Certifications
Depending on your location, your inverter must comply with local grid codes and safety standards. Look for certifications such as UL 1741 (for the U.S.), IEC 62109, or CE marking to ensure the product meets regulatory requirements. Compliance ensures not only safety but also eligibility for rebates or incentives in many regions.

Monitoring Capabilities
One of the standout features of micro inverters is module-level monitoring. This allows you to view performance data for each individual panel, making it easier to detect and diagnose issues. Some micro inverters come with integrated communication modules, while others require separate hardware or apps. Reliable, user-friendly monitoring platforms can provide valuable insights into system performance, energy production, and potential faults in real time.

6.Installation and Maintenance of Micro Inverters

Micro inverters offer a streamlined and flexible approach to solar system design, but proper installation and regular maintenance are essential to ensure optimal performance and longevity. This section provides a practical overview of how micro inverters are installed, along with tips for maintaining them over time.

Step-by-Step Installation Guide
System Design and Planning
Before installation, create a layout that considers the orientation, tilt, and shading of each solar module. Ensure the selected micro inverters are compatible with the panels and meet local electrical codes.

Mounting the Solar Panels and Inverters
Each micro inverter is mounted directly beneath or near its corresponding solar panel on the racking system. The inverters are typically attached using bolts or brackets provided by the manufacturer.

Connecting the Inverters
Micro inverters are connected in parallel using trunk cables or daisy-chain configurations. These cables are routed through junction boxes and conduit systems, leading to the main service panel or an AC combiner box.

Wiring and Grounding
Secure all electrical connections according to manufacturer instructions. Proper grounding is critical for safety and is often achieved using integrated grounding clips or separate grounding wires.

System Testing and Commissioning
Once all inverters are installed and connected, the system is powered on and tested. Most micro inverters include LED indicators and connect to a monitoring platform, allowing installers to verify that each unit is operating correctly.

Grid Connection and Final Inspection
After testing, the system is connected to the grid, if applicable. Local permitting authorities or utility companies may require an inspection before final approval.

Best Practices for Wiring and Connections
Use manufacturer-approved connectors and tools to ensure secure, weatherproof connections.

Avoid over-tightening conduit fittings or bending cables sharply, which can damage insulation.

Label all cables and breakers for future troubleshooting.

Maintain clear documentation of wiring layouts and inverter serial numbers.

Troubleshooting Common Issues
While micro inverters are generally reliable, issues can occasionally arise:

No Power Output from a Module: Could be due to a faulty micro inverter or connection issue. Use the monitoring system to pinpoint the affected unit.

Communication Failure: Often caused by a weak internet connection or misconfigured gateway. Resetting or relocating the gateway device may resolve the issue.

Grid Disconnection Warnings: Some inverters may temporarily disconnect if voltage or frequency falls outside grid standards—check utility parameters and settings.

Maintenance Tips for Long-Term Performance
Visual Inspections: Periodically check panels and wiring for damage, corrosion, or debris.

Software Updates: Ensure the monitoring system is updated to maintain compatibility and performance.

Panel Cleaning: Clean solar panels as needed, especially in dusty or pollen-heavy environments, to maximize energy production.

Monitoring Alerts: Set up automatic notifications to catch performance drops or inverter faults early.

7. Cost Analysis: Micro Inverters vs. String Inverters

When considering a solar energy system, one of the most important factors is cost—not just the initial investment, but the long-term return on that investment. Micro inverters and string inverters differ significantly in both their upfront pricing and the financial benefits they can deliver over time. Understanding these differences is essential for making an informed decision.

Initial Investment
In general, micro inverters have a higher upfront cost than string inverters. This is because a micro inverter is required for each solar panel, whereas a single string inverter can manage the output of multiple panels at once. As a result, the equipment and labor costs for a micro inverter system are usually higher—sometimes by 20–30% or more, depending on system size and configuration.

However, this cost difference is often justified by the added features of micro inverters, such as module-level monitoring, independent operation of panels, and easier system expansion.

Long-Term Savings and ROI
While micro inverters may be more expensive initially, they can offer superior long-term returns through enhanced energy production. Because each panel operates independently, the system is less affected by shading, dirt, or performance degradation of individual modules. This can translate into higher overall energy yield—especially in environments with variable sunlight or complex roof layouts.

Additionally, the ability to monitor performance at the module level makes it easier to identify and address issues promptly, reducing downtime and improving long-term system reliability. Over the lifespan of a solar system (typically 25 years or more), these benefits can significantly improve the return on investment (ROI).

Factors Affecting Cost: System Size, Location, and Rebates
Several factors can influence the overall cost-effectiveness of a micro inverter system:

System Size: For smaller residential systems, the cost difference between micro and string inverters is less pronounced. As system size increases, string inverters may offer more attractive economies of scale.

Location: In areas with frequent shading, partial sun exposure, or multiple roof angles, micro inverters often provide greater energy gains, making them more cost-effective over time.

Incentives and Rebates: Some regions offer incentives that reduce the net cost of advanced inverter technologies, including micro inverters. These can help offset the higher initial expense.

8. Micro Inverters and the Future of Solar Energy

As the global demand for clean and decentralized energy sources continues to grow, micro inverters are poised to play a pivotal role in shaping the future of solar power. Their unique capabilities—especially in terms of energy optimization, safety, and smart integration—make them a forward-looking solution for both residential and commercial solar installations.

Integration with Smart Grids
One of the most promising aspects of micro inverter technology is its compatibility with smart grids. Smart grids use digital communication and automation to manage electricity more efficiently, enabling two-way communication between energy producers and consumers. Micro inverters, with their module-level data monitoring and control, fit seamlessly into this model.

They can help utilities and homeowners better manage energy production and consumption in real time. For instance, during peak demand periods or grid disturbances, micro inverters can enable solar systems to respond dynamically—such as reducing output or supporting voltage regulation—improving overall grid stability and resilience.

Advancements in Micro Inverter Technology
Recent years have seen rapid improvements in micro inverter technology. These include:

Higher efficiency ratings, allowing more of the sun’s energy to be converted into usable electricity.

Improved thermal management, reducing overheating risks and extending the operational life of the devices.

Greater durability and longer warranties, with some models offering up to 25-year coverage.

Built-in energy storage compatibility, allowing easy integration with batteries and enabling hybrid solar systems.

These innovations not only enhance performance and reliability but also help reduce installation complexity and long-term maintenance costs.

The Role of Micro Inverters in Residential and Commercial Solar
Micro inverters are increasingly favored in residential solar systems due to their ease of installation, individual panel monitoring, and safety advantages—such as reduced DC wiring and automatic shutdown features. They are especially useful in homes with complex rooflines or partial shading.

In the commercial sector, micro inverters are gaining traction for small to mid-sized systems where granular control, high uptime, and flexibility are valued. As commercial users become more focused on energy independence, detailed analytics, and smart system integration, micro inverters offer a scalable and future-proof solution.

9. Conclusion

As the solar energy industry continues to evolve, micro inverters have emerged as a key technology offering distinct advantages for both residential and commercial systems. By enabling module-level optimization, improved energy yield, and greater design flexibility, micro inverters provide a modern solution to many of the limitations associated with traditional string inverter systems.

However, it's important to weigh these benefits against the potential drawbacks, such as higher initial costs and the possibility of more complex maintenance due to the distributed nature of the components. While each system has its own needs and constraints, the long-term performance gains and safety features of micro inverters often justify their adoption—especially in systems where partial shading, irregular roof orientations, or monitoring granularity are factors.

Ultimately, whether micro inverters are the right choice depends on your specific solar project goals, budget, and site conditions. For those seeking maximum efficiency, modular scalability, and detailed performance data, micro inverters present a compelling case as the future-ready foundation of a smart solar energy system.
