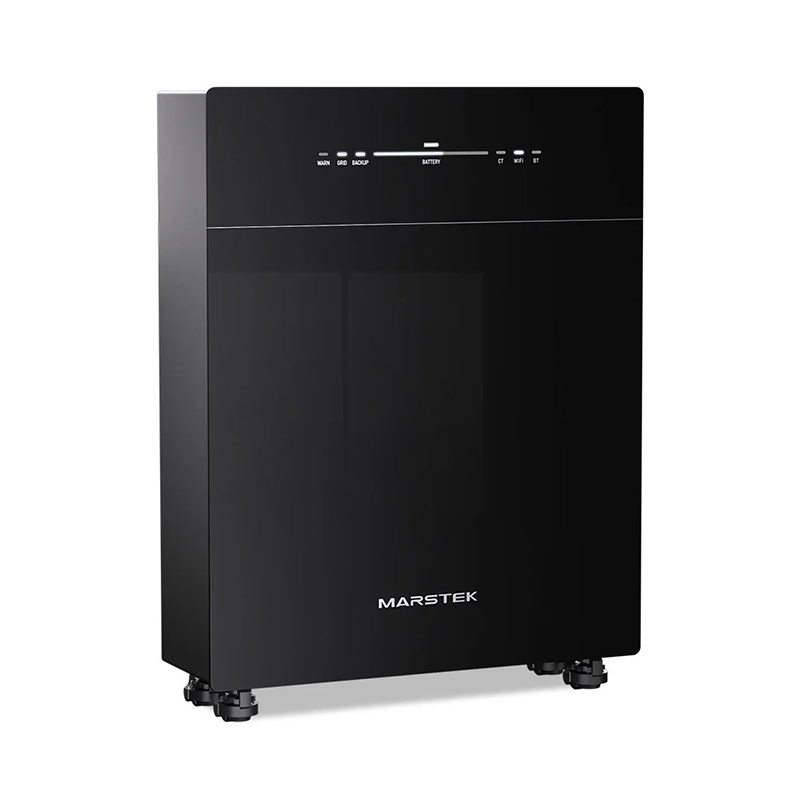

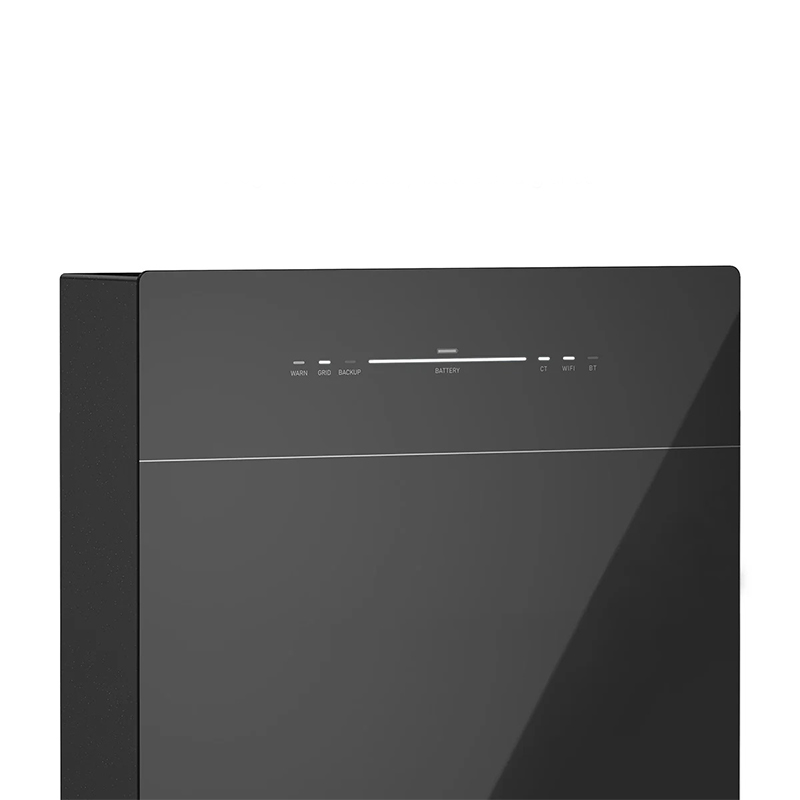

MARSTEK VENUS E AC Battery ESS
1499-1699 €/pcVAT excluded
- Product Description
+39 3444606026/+31610999937
· 2500W AC input, high-speed charging
· 800W/2500W on-grid output, peak shaving and vally filling

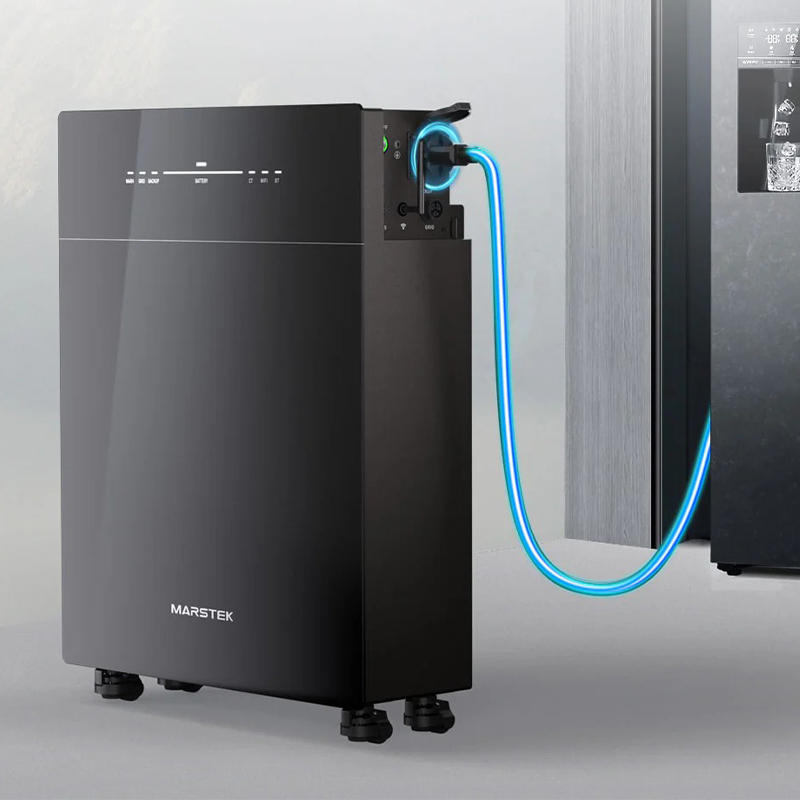

· Max. 2500W off-grid output, backup during power outages

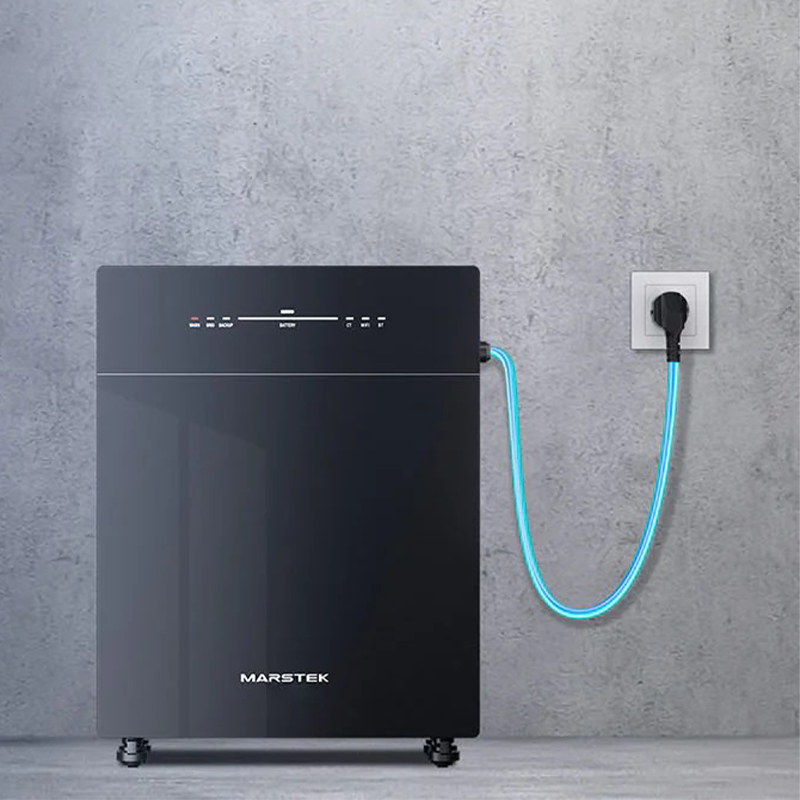

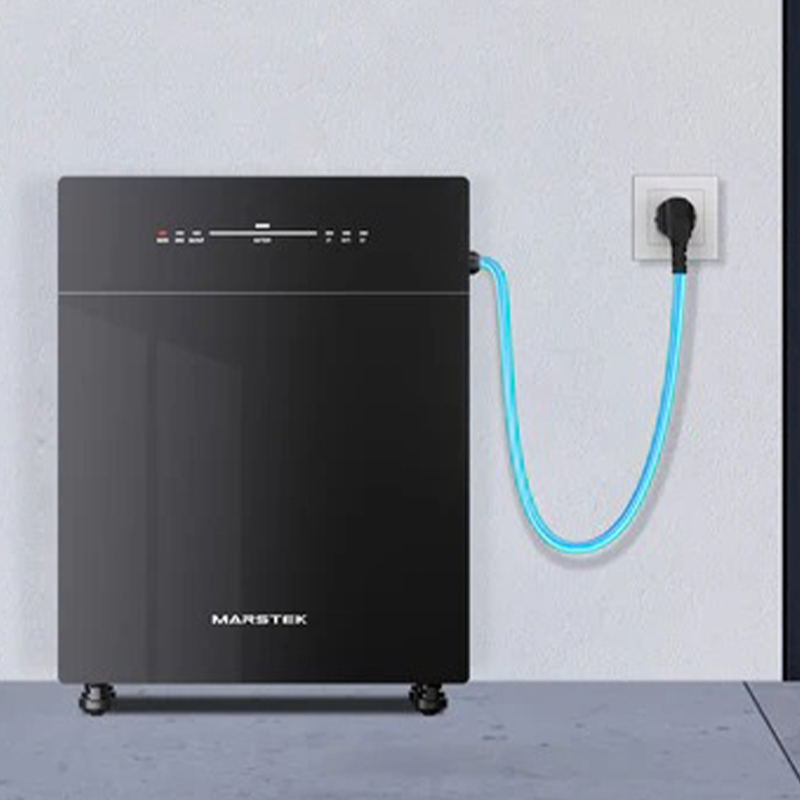

· Plug & Play
· 10-year warranty

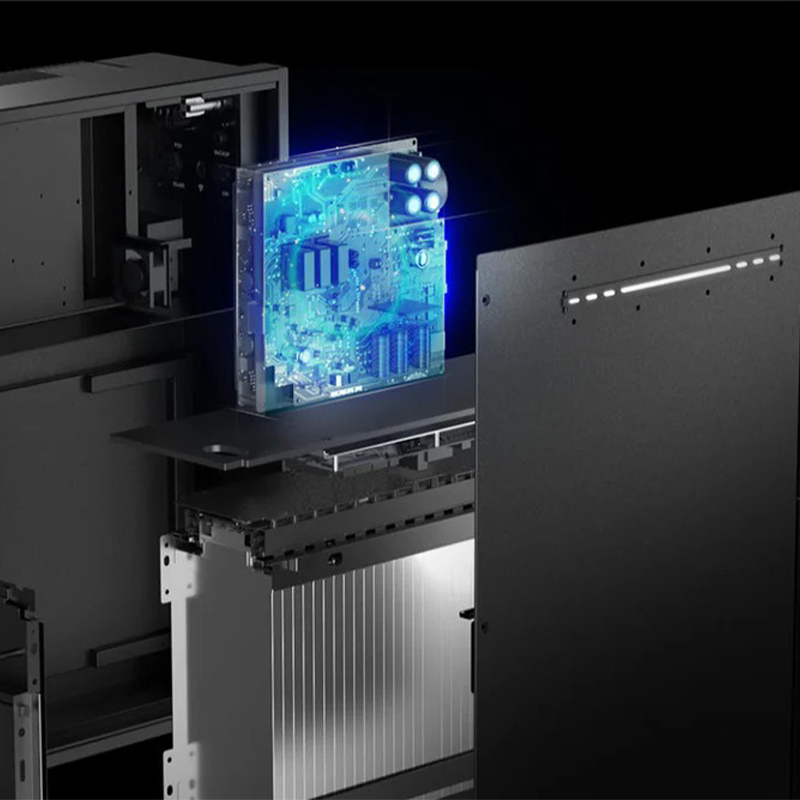

800W/2500W On-Grid Output
Please note that an upgrade to 2500W on-grid output power should only be carried out in compliance with local regulations and by a qualified specialist.

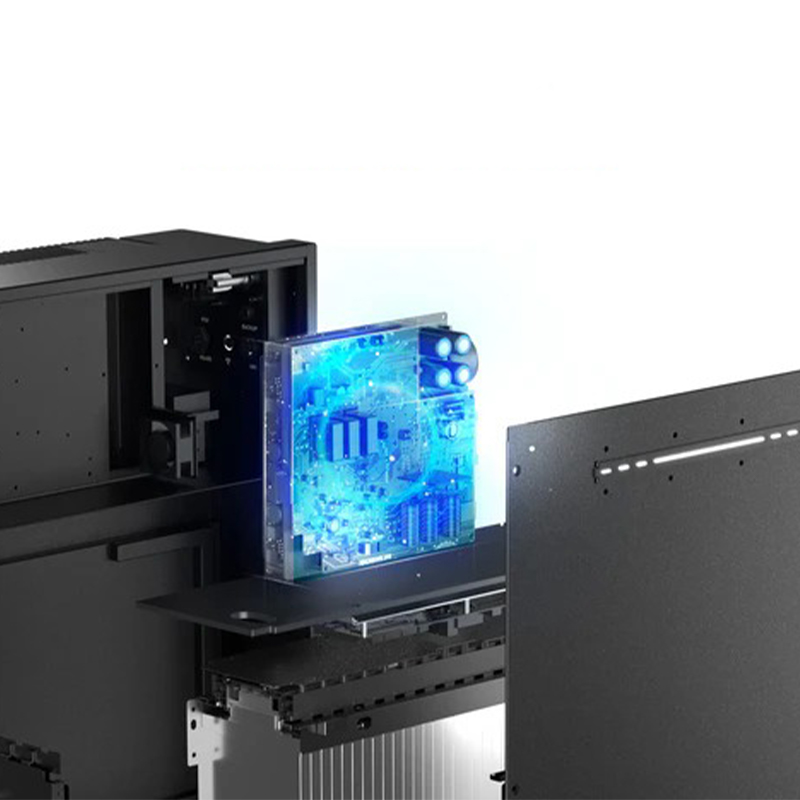

2500W Fast Charging
Venus supports 2500W AC fast charging. Adding Significant Charge in Just one hour.

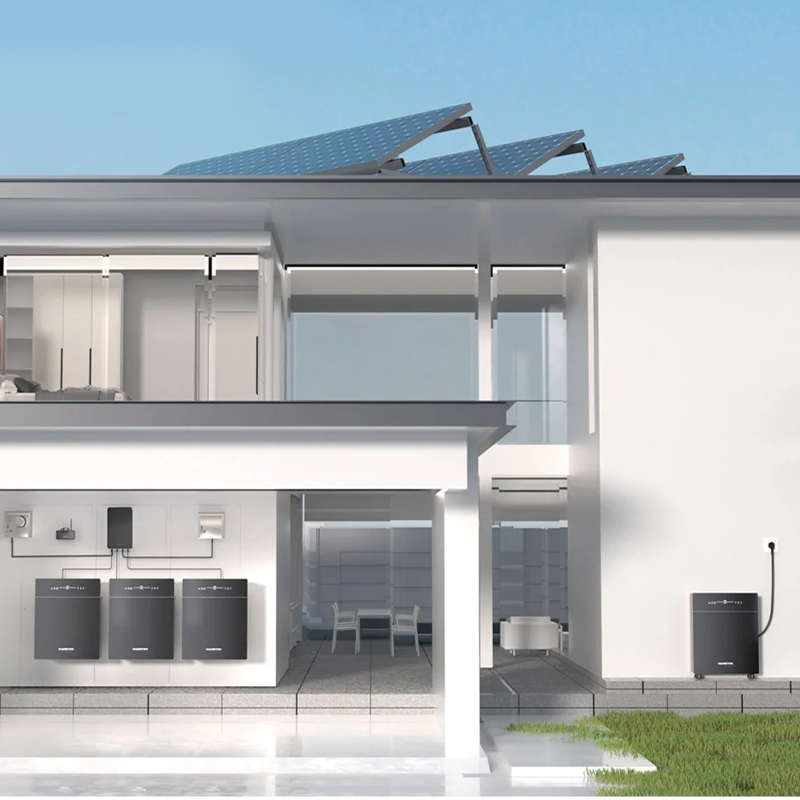

Capacity & Power Expandable

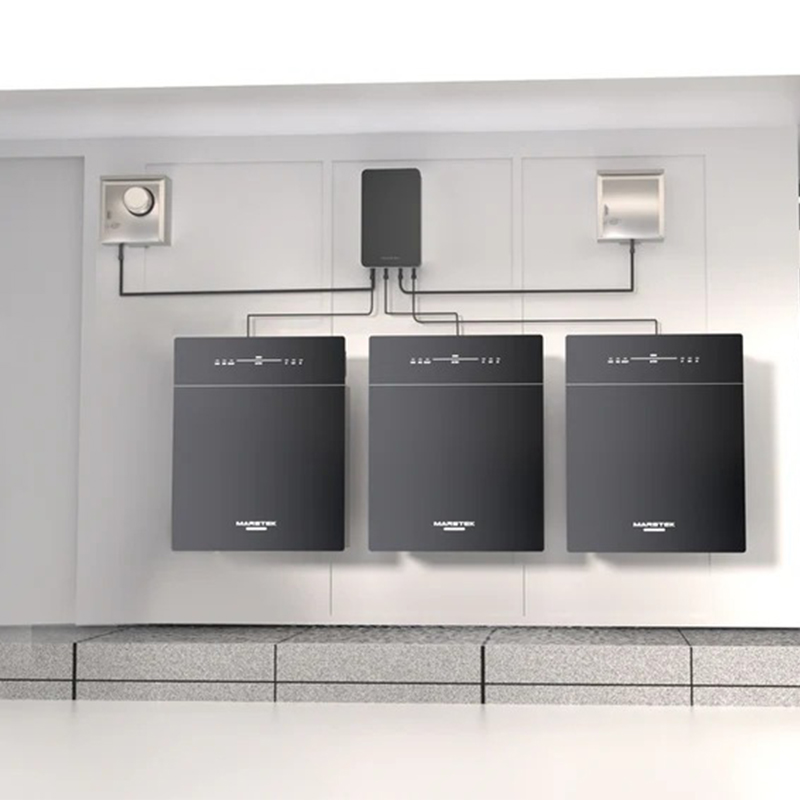

Up to 3 Venus can be connected to each phase, resulting in a maximum output of 7.5 kW and a capacity of 15.36 kWh.
| Model | MARSTEK VENUS-E |
| Battery Info | |
| Rated Voltage | 51.2V(16S) |
| Capacity | 5120Wh |
| Life Cycle (Times) | >6000 (25°C) |
| Battery Type | LiFePO4 |
| DoD | 90% |
| AC Input / Output (On Grid) | |
| Rated Input Power | 2.5kVA |
| Rated Output Power | 2.5kVA/800VA |
| Operating Phase | L/N/PE |
| Rated Grid Voltage | 230V |
| Grid Voltage Range | 187V～253V |
| Rated Grid Frequency | 50Hz |
| Rated Grid Output Current | 10.9A |
| Power Factor | >0.99 (Default) / 0.8 leading..0.8 lagging (Adjustable) |
| THDi | <3% |
| Back-up (Off Grid) | |
| Rated Output Power | 2.5kVA |
| Max. Apparent Output Power | 3.5kVA, 10s |
| Rated Grid Voltage | 230V |
| Rated Output Current | 10.9A |
| Rated Output Voltage Frequency | 50Hz |
| THDu(Linear Load) | <3% |
| Efficiency | |
| Battery-AC Side Max. Efficiency | >93.5% |
| Protection | |
| Protection Level | Ⅰ |
| Overvoltage/Voltage Withstand Level | DC Ⅱ/AC Ⅲ |
| General | |
| Isolation Type | Isolated |
| Operating Temperature Range | -20°C ～+ 55°C(Storage -30°C ～+ 85°C) |
| Relative Humidity | 0～95% |
| Ingress Protection | IP65 |
| Cooling Strategy | Natural Convection |
| Max. Operating Altitude | 2000m |
| On-grid Connection Standard | NFEN50549-1,VDE4105/0124,G98,CE10-21,PETREE,PN-EN50549-1/-2,TORR25,UNE217001/217002,NTS631,AS47772 |
| Regulatory/EMC | IEC62040,IEC62477,IEC/EN 61000-6-1/-2-/3-/4,IEC/EN 61000-3-2/-3,EN 300 328,EN 301 489 -1/-17,EN 50665,CB 62619 |
| Dimension | 480*153*624mm |
| Weight | 58±0.5kg |
| Additional Data | |
| On-grid AC Connection | Three-wire Household Plug (Euro16A) |
| Back-up Connection | Three-hole socket (Euro socket) |
| Display | LED |
| Supported Communication Interface | LAN/WIFI/ Bluetooth /RS485 |
| Model | MARSTEK JUPITER-C+ |
| Energy Storage Unit (Stack) | |
| Battery Energy | 2.56kWh |
| Life Cycle | >6000(25°C) |
| Battery Type | LiFePO4 |
| Battery Capacity | 50Ah |
| Number of Energy Storage Unit | 3PCS (max) |
| Total Capacity of The Product | 2.56~10.24kWh |
| PVInput | |
| Maximum Input Power | 2400w |
| Operating Voltage Range | 16~60V |
| Maximum Input Short Circuit Current(Single Channel) | 20A |
| MPPT Track Number | 4 |
| MPPT Efficiency | 99.80% |
| AC Output | |
| Rated Output Power | 800vA |
| Working Phase | L/N/PE |
| Rated Grid Voltage | 230v |
| Rated Grid Frequency | 50Hz |
| Rated Grid Output Current | 3.48A |
| Power Factor | >0.99(default),0.8lagging...0.8leading(adjustable) |
| THDi | <3% |
| Efficiency | |
| Battery Side-AC Side Maximum Efficiency | >96.5% |
| Basic Parameters | |
| Ambient Temperature Range | -20~+60℃(Storage-30～+85℃) |
| Relative Humidity | 0-95% |
| IP Level | IP65 |
| Cooling Method | Natural Cooling |
| Maximum Altitude | 2000m |
| General | |
| Grid connection | BC01 |
| Photovoltaic connection | MC4 |
| Off-gridport | European Socket |
| Display | Touchable HD Screen |
| Communication | Bluetooth,WIFI&RS-485(WaterproofAviationPlug） |
| On-grid Connection Standard | VDE 4105/0124,NF EN50549-1,CEI0-21,PETREE,PN-EN 50549-1/-2,PEA 1165-2020 |
| Regulatory/EMC | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2-/3-/4, IEC/EN 61000-3-2/-3, EN 300 328, EN 301 489 -1/-17,EN 50665,EN 62920, CB 62619,EN 50549-1 |
| Model | B2500-D |
| General | |
| Capacity | 2240wh |
| Cell Chemistry | LiFePO4 |
| Lifecycle | 6000+ Cycles to 80% Capacity |
| Storage Temp. | 14°F~131°F(-10°C~55°C) |
| Operating Temp. | 14°F~122°F(-10°C~50°℃) |
| Material | ABS +PC +Metal |
| Weight | 20士0.5kg |
| Dimensions | 295*175*350mm |
| Battery Management System | OVP,UVP,OCP,SCP,OTP,UTP,etc |
| Wireless | BT 4.2+ WIFI2.4G |
| MC4*2 PVINPUT | |
| Power | 800w*2 Max |
| Voltage Range | 12V-59V |
| Max.Input Current | 13.5A*2 |
| MC4*2OUTPUT | |
| Power | 400w*2 Max |
| Voltage Range | 16V~40V |
| Max.Output Current | 15A Max |
| Additional Data | |
| Protection Rated | IP65 |
| Standards | EN IEC 62109-1/-2, EN IEC 61000-6-1/3, IEC 62619:2022,WEEE,RoHS, REACH |
| Model | MARSTEK VENUS-D |
| Energy Storage Unit (Stack) | |
| Adaptive Energy Storage Unit | MST-E2.5ST-D |
| Number of Energy Storage Unit | 6PCS (Max) |
| Total Capacity of the Product | 2.56kWh~15.36kWh |
| PVInput | |
| Maximum Input Power | 4000W |
| MPPT Operating Voltage Range | 25V~55V |
| Maximum Input Current (Single Channel) | 32A |
| MPPT Track Number | 4 |
| MPPT Efficiency | 99.80% |
| Back-up (Off-grid) | |
| Rated Output Power | 2200vA |
| Peak Output Power | 2400VA,60s |
| Rated Output Voltage | 230v |
| THDu (Linear Load) | ≤3% |
| AC Input/Output | |
| Rated Output Power | 2200VA/800VA&2200VA |
| Working Phase | L/N/PE |
| Rated Grid Voltage | 230v |
| Rated Grid Frequency | 50Hz |
| Rated Grid Output Current | 9.57A/3.48A&9.57A |
| Power Factor | > 0.99(default), 0.8lagging...0.8leading(adjustable) |
| THDi | <3% |
| Efficiency | |
| Battery Side-AC Side Maximum Efficiency | >94.5% |
| Basic Parameters | |
| Ambient Temperature Range | -20℃~+60°C (Storage-30℃~+85°℃) |
| Relative Humidity | 0－95%6 |
| IP Level | IP65 |
| Cooling Method | Natural Cooling |
| Maximum Altitude | 2000m |
| General | |
| Grid connection | BC01 |
| Photovoltaic connection | MC4 |
| Off-grid port | European Socket |
| Display | LED |
| Communication | Bluetooth,WIFI & RS-485, EtherNet |
| Model | MST-E2.5ST-D |
| Battery Parameter | |
| Rated Voltage | 51.2V (16S) |
| Battery Energy | 2.56kWh |
| Life Cycle | >6000(25°C) |
| Battery Type | LiFePOs |
| Depth of Discharge | 90% |
| Battery Capacity | 50Ah |
| Basic Parameters | |
| Ambient Temperature Range | -20°C ～+60°C (Storage -30°C～ +85°C) |
| Relative Humidity | <95% |
| IP Level | IP65 |
| Cooling Method | Natural Cooling |
| Maximum Altitude | 2000m |
| Communication Mode | CAN, RS-485 |
| Model | MARSTEK VENUS-E |
| Battery Info | |
| Rated Voltage | 51.2V(16S) |
| Capacity | 5120Wh |
| Life Cycle (Times) | >6000 (25°C) |
| Battery Type | LiFePO4 |
| DoD | 90% |
| AC Input / Output (On Grid) | |
| Rated Input Power | 2.5kVA |
| Rated Output Power | 2.5kVA/800VA |
| Operating Phase | L/N/PE |
| Rated Grid Voltage | 230V |
| Grid Voltage Range | 187V～253V |
| Rated Grid Frequency | 50Hz |
| Rated Grid Output Current | 10.9A |
| Power Factor | >0.99 (Default) /0.8 leading..0.8 lagging(Adjustable) |
| THDi | <3% |
| Back-up (Off Grid) | |
| Rated Output Power | 2.5kVA |
| Max. Apparent Output Power | 3.5kVA, 10s |
| Rated Grid Voltage | 230V |
| Rated Output Current | 10.9A |
| Rated Output Voltage Frequency | 50Hz |
| THDu(Linear Load) | <3% |
| Efficiency | |
| Battery-AC Side Max. Efficiency | >93.5% |
| Protection | Ⅰ |
| Protection Level | DC Ⅱ /AC Ⅲ |
| Overvoltage/Voltage Withstand Level | |
| General | Isolated |
| Isolation Type | -20°C ～+ 55°C(Storage-30°C ～+ 85°C) |
| Operating Temperature Range | 0～95% |
| Relative Humidity | IP65 |
| Ingress Protection | Natural Convection |
| Cooling Strategy | 2000m |
| Max. Operating Altitude | NFEN50549-1,VDE4105/0124,G98,CE10-21,PETREE,PN-EN50549-1/-2,TORR25,UNE217001/217002,NTS631,AS47772 |
| On-grid Connection Standard | IEC62040,IEC62477,IEC/EN 61000-6-1/-2-/3-/4,IEC/EN 61000-3-2/-3,EN 300 328,EN 301 489 -1/-17,EN 50665,CB 62619 |
| Regulatory/EMC | |
| Dimension | 480*153*624mm |
| Weight | 58±0.5kg |
| Additional Data | |
| On-grid AC Connection | Three-wire Household Plug (Euro16A) |
| Back-up Connection | Three-hole socket (Euro socket) |
| Display | LED |
| Supported Communication Interface | LAN/WIFI/ Bluetooth / RS485 |
