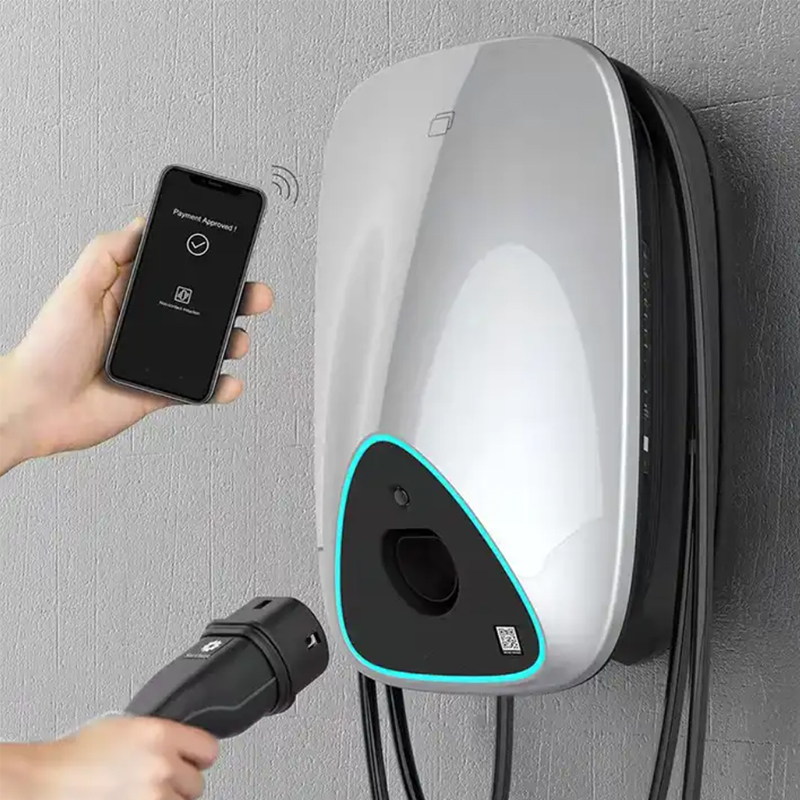

22KW EV CHARGER A022KS1-E-2 CHARGING SOCKET

410 ~480€/pcVAT excluded

Inquiry Us Add Product
PREV: 22KW EV CHARGER A022KP1-E-2 CHARGING PLUG NEXT: 22KW DOUBLE-OUTPUT EV CHARGER AT022-DP CHARGING PLUG
  • Product Description

Uni Z International B.V.+31610999937

Uni Z International B.V.[email protected]

This is an advanced charging solution for electric vehicles. With a high power output of 22kW and a 32A Type 2 socket, this charger enables fast and efficient charging. It allows for remote monitoring and control of charging sessions. Users can access real-time data, set charging schedules, and track energy consumption through compatible mobile applications or online platforms, enhancing convenience and optimizing charging efficiency.
Power: 22kW
output Current: Max.32A
output Voltage: 400V AC
Type 2 cable charging connector
Compliant with OCPP 1.6(JSON)/2.0
App operation or RFID authentication or plug, play & 4G
Protection Grade: lP55
-30~50℃ Wide Operating Temperature
Warranty time: 3 years
● Setting Current: you can set the current when the power grid is overloaded.
● Controlling Stop & Start: Control the Stop &Start by your phone, you can control it in anywhere.
● Making an Appointment for Charging: If you want the electric vehicle to be charged at night, it is a good choice that you make an appointment for the charging by APP, it is very convenient.
● Record: you can check the charging record by APP at any time.
MODEL A022KS1-E-2
TYPE CHARGING SOCKET
INPUT
Wiring Scheme 3P+N+PE
Voltage 400Vac, ±20%
Maximum Current 32A
Frequency 50/60HZ
OUTPUT
Voltage 400Vac, ±20%
Maximum Current 32A
Rated Power 22kW
USER INTERFACE & CONTROL
Connector Type Type 2 socket
RFID Reader Mifare ISO/IEC 14443 A
Start Mode Plug&Play/RFID card/App
COMMUNICATION
WiFi, Bluetooth Yes
4G Optional
OCPP OCPP 1.6JSON, OCPP 2.0 optional
ENVIRONMENT
Installation Wall-mount / Post-mount
Operating Temperature  -30℃~50℃
Operating Humidity 5% ~ 95% No condensation
Operating Altitude ≤2000m
DIMENSION AND WEIGHT
Product Dimension 320*190*144.5 mm
Product Weight 2.0kg
SAFETY
IP protection rating IP55
IK protection rating IK08
Residual Current Detection AC 30mA/DC 6mA
Electrical Protection Over current protection. Residual current protection. Ground protection. Surge protection.
Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
EMC Class B
Certification CE
Certification Standard EN/IEC 61851-1: 2019, EN/IEC 61851-21-2: 2021
