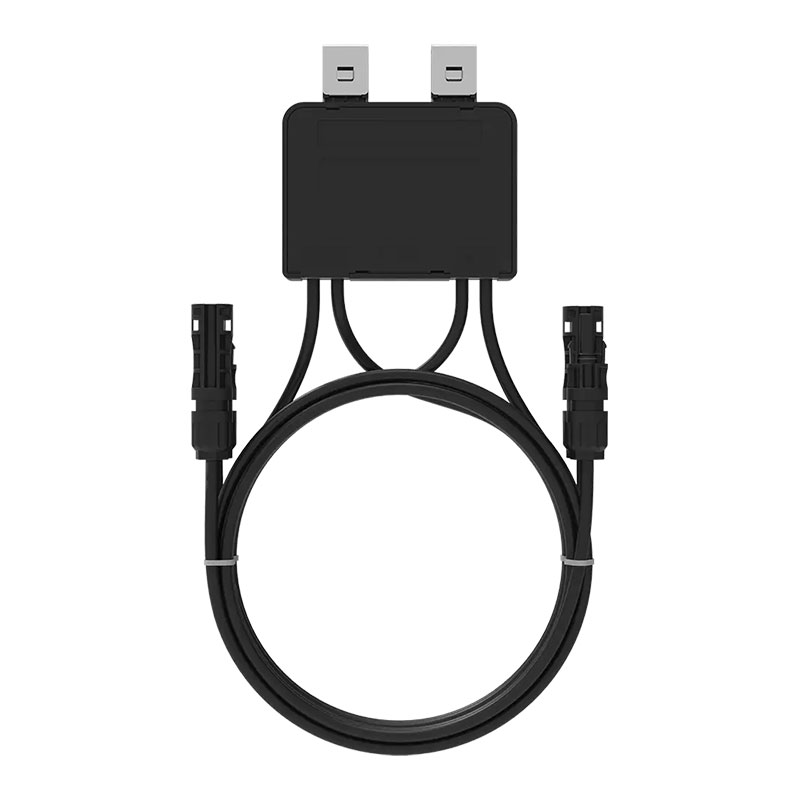

Deye SUN-XL02-B 700W, 80V, 15A, IP68, PLC

25~30 €/pcVAT excluded

Inquiry Us Add Product

PREV: Deye SUN-XL02-A 700W, 80V, 15A, IP68, NO COMMUNICATION NEXT: No next product

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

Increase in power generation capacity: Module-level maximum power point tracking (MPPT) can increase power generation by 5% to 25%. Monitoring: Real-time monitoring of the operation status of each photovoltaic module allows for timely detection of issues and precise troubleshooting[1]. Stable and reliable communication: Using photovoltaic cables carrier communication eliminates the need for additional communication cables[1]. Rapid shutdown function: Quickly reduces the DC voltage of the photovoltaic array to a safe range[1]. *This function is only available when used with Optimizer Concentrators.

Model	SUN-XL02-B
Project	Parameter
Maximum input power(W)	700W
Maximum input voltage(V)	80V
MPPT voltage range (V)	12-80V
Maximum input current (A)	15A
Peak conversion efficiency	99.50%
Installation specifications dimensions(mm)	105x105x22mm
Weight (g)	660g
Cable	4.0mm² input 70cm output 100cm
Connector	MC4 Or Compatible with MC4
Operating temperature range	-401 ~ +851
Level of protection	IP68
Product certification	CE
Communication mode	PLC
