GB-SL (EU)

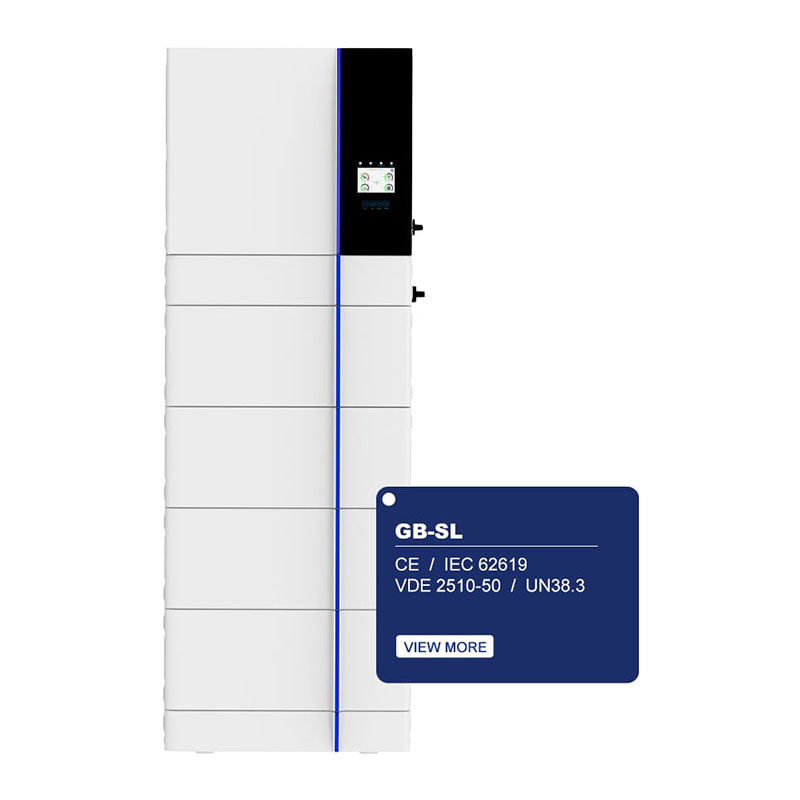

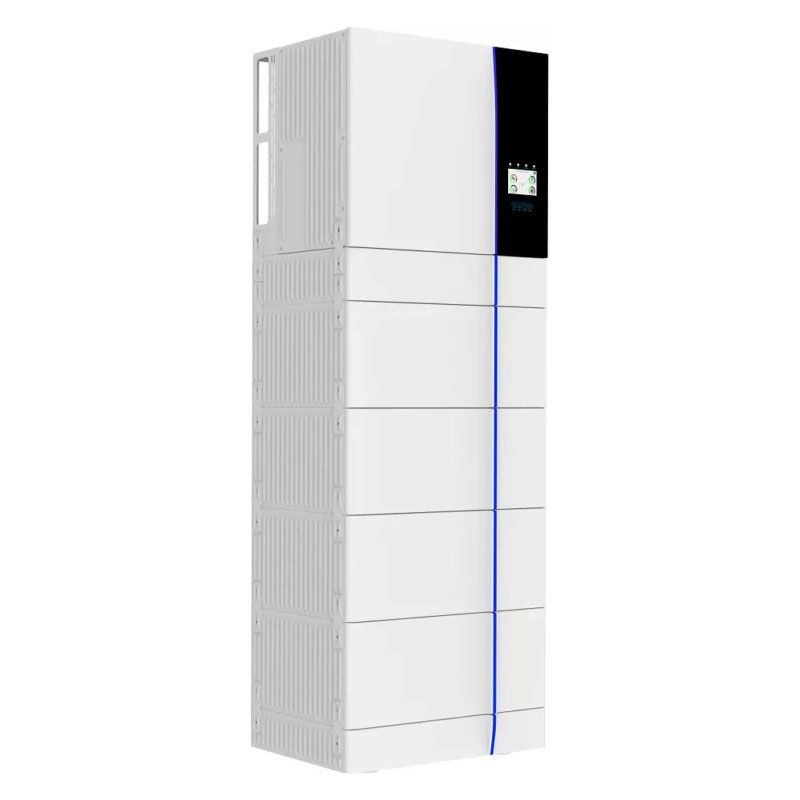

The Deye GB-SL5K/6K/8K/10K/12K/15K/20K-EU All-in-One Hybrid Inverter is a cutting-edge solution for your energy needs. This innovative product seamlessly integrates solar power, battery storage, and grid management into a single, beautifully designed unit.

Key Features: 1. Integrated Design: The all-in-one design combines functionality and aesthetics, making it perfect for various installation scenarios. 2. High Power Output: With models ranging from 5kW to 20kW, this inverter series can deliver up to 100% unbalanced output per phase and a maximum output of 60% rated power. 3. Parallel Operation: Connect up to 10 units in parallel for both on-grid and off-grid applications, ensuring a reliable and scalable energy solution. 4. Versatile Battery Compatibility: Compatible with a wide range of lithium-ion batteries, with voltages ranging from 160V to 700V. 5. Efficient MPPT: Two MPP trackers with a high efficiency of 99.9% ensure optimal solar energy harvesting. 6. Generator and AC Coupling Support: Seamlessly integrate with diesel generators and AC-coupled systems for enhanced energy management. 7. Wide Operating Temperature Range: Designed to operate in temperatures from -20°C to 60°C, with an optional heating function for low-temperature environments. 8. Advanced Protection: Equipped with comprehensive protection features, including PV input lightning protection, anti-islanding, reverse polarity protection, and more.

The Deye GB-SL5K/6K/8K/10K/12K/15K/20K-EU All-in-One Hybrid Inverter is compatible with the GB-LM4.0 battery modules, which feature LiFePO4 chemistry and a modular design for flexible energy storage capacity. The high-voltage battery cluster control box (GB-LB) ensures optimal performance and safety. With a 5-year warranty for the inverter and a 10-year warranty for the battery modules, Deye offers peace of mind and long-lasting performance. Choose the Deye GB-SL5K/6K/8K/10K/12K/15K/20K-EU All-in-One Hybrid Inverter for a reliable, efficient, and future-proof energy management solution.

Model	GB-S5K-EU	GB-S6K-EU	GB-S8K-EU	GB-S10K-EU	GB-S12K-EU	GB-S15K-EU	GB-S20K-EU
Battery Input Data
Battery Type	LI-ION
Battery Voltage Range (V)	160~700
Max. Charging Current (A)	30		37
Max. Discharging Current (A)	30		37
Number of battery input	1
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	6500	7800	10400	13000	15600	19500	26000
Max. DC Input Voltage (V)	1000
Start-up Voltage (V)	150
MPPT Range (V)	150-850
Full Load DC Voltage Range (V)	195-850	195-850	260-850	325-850	340-850	420-850	500-850
Rated DC Input Voltage (V)	600
PV Input Current (A)	20+20				26+20		26+26
Max. PV ISC (A)	30+30				39+30		39+39
No.of MPP Trackers	2
No.of Strings per MPP Tracker	1+1				2+1		2+2
AC Output Data
Rated AC Output and UPS Power (W)	5000	6000	8000	10000	12000	15000	20000
Max. AC Output Power (W)	5500	6600	8800	11000	13200	16500	22000
AC Output Rated Current (A)	7.6/7.3	9.1/8.7	12.2/11.6	15.2/14.5	18.2/17.4	22.8/21.8	30.4/29
Max.AC Output (Off-grid) Current(A)	8.4/8	10/9.6	13.4/12.8	16.7/16	20/19.2	25/24	33.4/31.9
Max. Three-phase Unbalanced Output Current(A)	13	13	18	22	25	30	35
Max. Continuous AC Pass through (A)	40				80
Peak Power (off grid)	1.5 time of rated power, 10 S
Generator input/Smart load/AC couple current (A)	7.6/40/7.6	9.1 / 40 / 9.1	12.2 / 40 / 12.2	15.2 / 40 / 15.2	18.2 / 80 / 18.2	22.8 / 80 / 22.8	30.4 / 80 / 30.4
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type	Three Phase
DC injection current (mA)	<0.5%ln
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97%
MPPT Efficiency	99.90%
Protection
Integrated	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection, Arc Fault Circuit Interruption (AFCI optional)
Output Over-Voltage Protection	DC Type II/AC Type III
Certifications and Standards	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98,
Grid Regulation	VDE 0126-1-1, RD 1699, C10-11
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (°C)	40~60°C, >45°C derating
Cooling	Free cooling		Smart cooling
Communication with BMS	CAN
Warranty	5 years

Model		GB-LM4.0
Battery System Data
Cell Chemistry		LiFePO4
Module Energy (kWh)		4.09
Module Nominal Voltage (V)		102.4
Module Capacity (Ah)		40
Battery Module Qty in series. (Optional)		2	3	4	5	6
System Nominal Voltage (V)		204.8	307.2	409.6	512	614.4
System Operating Voltage (V)		179.2~691.2 \|
System Energy (kWh)		8.18	12.27	16.36	20.45	24.54
System Usable Energy (kWh)¹		7.36	11.04	14.72	18.4	22.08
Charge/ 2 Discharge Current (A)	recommend	20
	max	40
	peak	50@2min
Working Temperature(°C)		Charge：-20~55/Discharge:-20~60
Communication Port		CAN2.0/RS485
Thermal Management		Natural Cooling
Recommend Depth of Discharge		90%
Cycle Life		25±2℃，0.5C/0.5C,70%EOL≥6000
3 Warranty		10 years
Certification		CE/IEC 62619/VDE 2510-50/UN38.3
Other Data
Humidity		5~85%RH
Altitude (m)		<2000
IP Rating of Enclosure		IP65
Noise (dB)		<55
Storage Temperature (°C)		0~35
Dimension (W/D/H,mm)		5403851100	5403851320	5403851540	5403851760	5403851980
Weight Approximate (kg)		137	176	215	254	293
Installation Location		Floor Mount

1 DC Usable Energy, test conditions: 90% DOD, 0.2C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
2 The current is affected by temperature and SOC.
3 The warranty is due whichever reached first of warranty period or life cycle power.

System Components

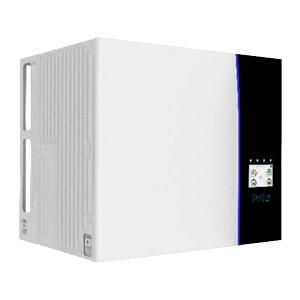

GB-S5K/6K/8K/10K/12K/15K/20K-EU	Hybrid inverter
Dimension (W/D/H)	540385450mm
Weight Approximate	39.8kg

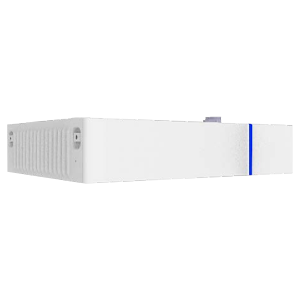

GB-LB	High voltage battery cluster control box
Operating Voltage	120~750Vdc
Nominal Charge/Discharge Current	40A
Max.Charge/Discharge Current	50A
Operating Temperature Range	-20~65°C
Ingress Protection	IP65
Dimension (W/D/H)	540385110mm
Weight Approximate	12kg

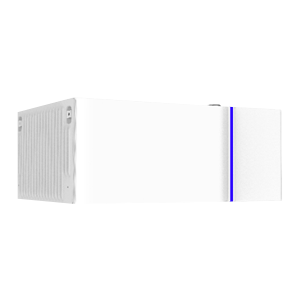

GB-LM4.0	4.09 kWh battery module
Battery Type	LiFePO4(LFP)
Nominal Voltage	102.4Vdc
Rated Capacity	40Ah
Rated Energy	4.09kWh
Max. Charge/Discharge Current	40A
Peak Charge/Discharge Current	50A
Charge Temperature	0~55°C
Discharge Temperature	-20°C~55°C
Storage Temperature	0C~35°C
Ingress Protection	IP65
Dimension (w/D/H)	540385220mm
Weight Approximate	39kg

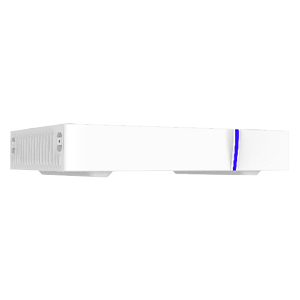

GB-LBase	Battery module base
Dimension (W/D/H)	540385100mm
Weight Approximate	7kg
