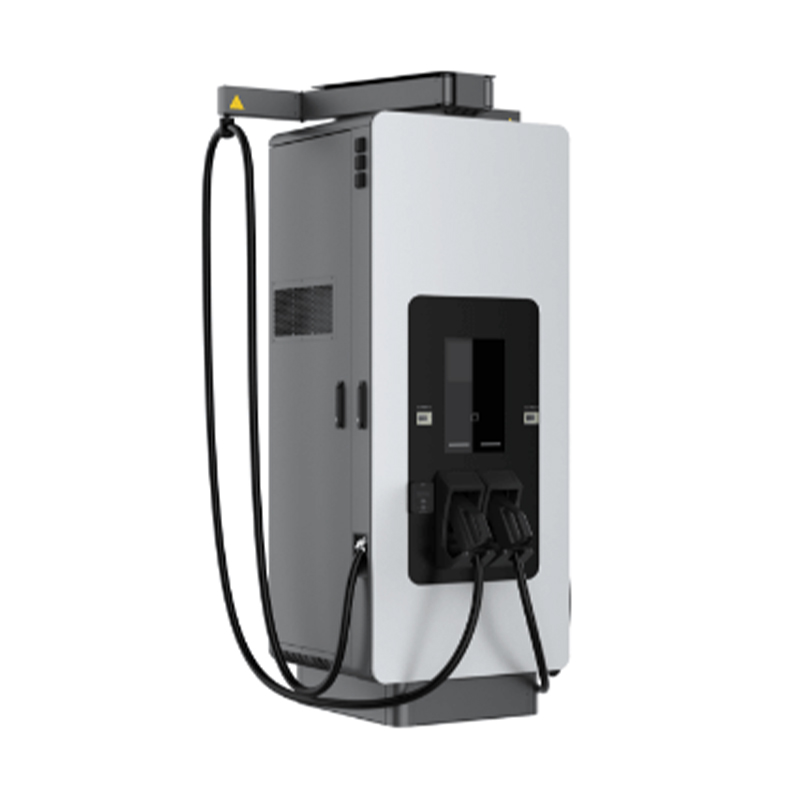

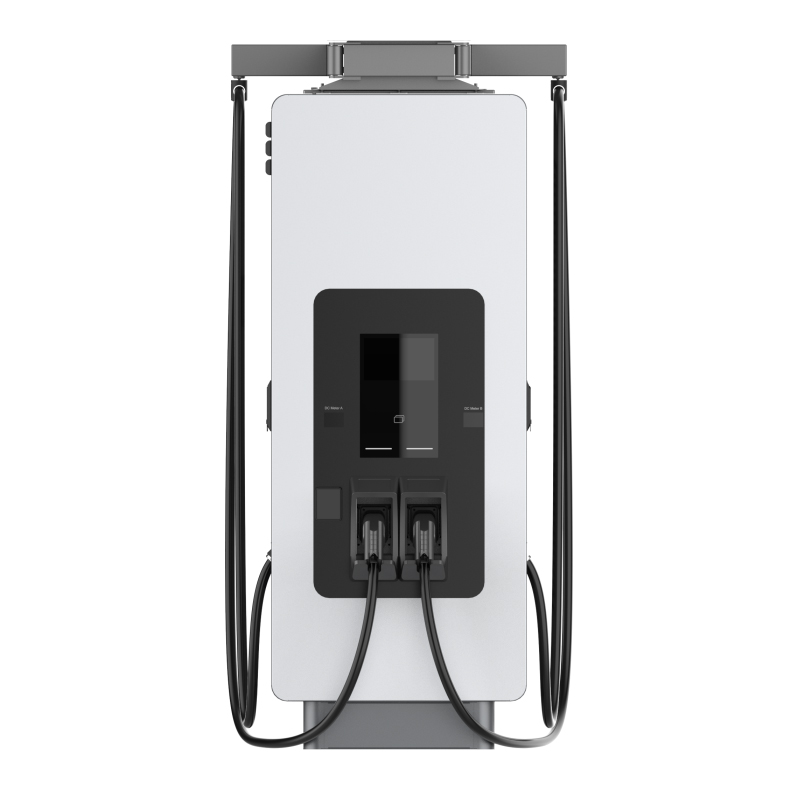

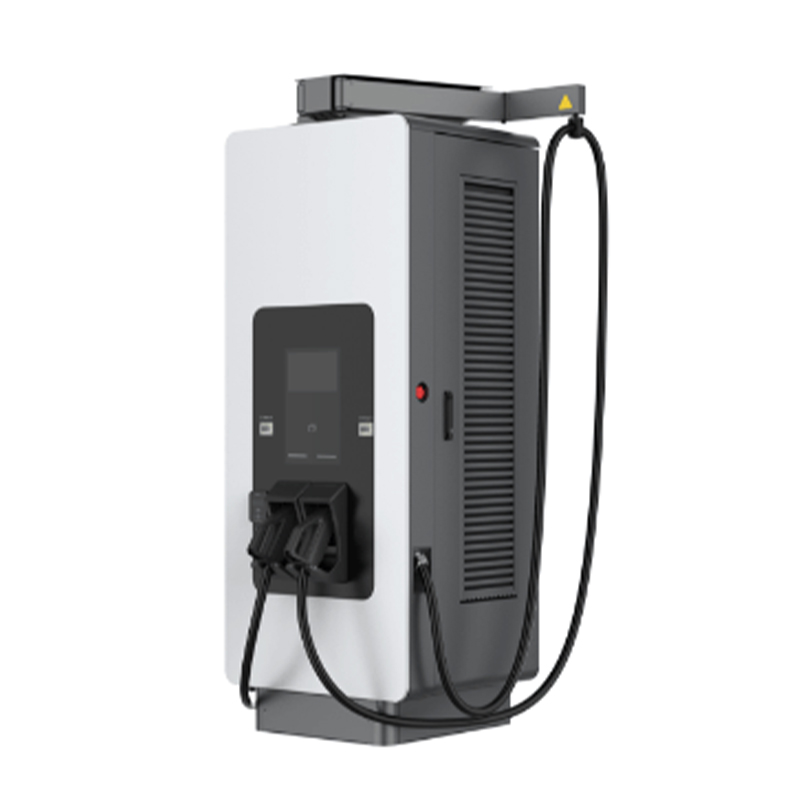

DC EV Charging Pile 180kW GBT EVSE

Name: DC EV Charging Pile 180kW GBT EVSE
Rating: 5 (99 reviews)

customizedVAT excluded

Inquiry Us Add Product

PREV: DC EV Charging Pile 60kW GBT EVSE NEXT: DC EV Charging Pile 240kW GBT EVSE

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

Public fast DC EV charging stations are high-level EV charging stations designed for fast and efficient charging times. Capable of delivering up to 180 kW of power, it can charge electric vehicles quickly and efficiently. The charging station is an important part of the charging infrastructure for electric vehicles, making it easier for drivers to travel long distances without worrying about running out of battery.

It is a basic DC Fast EV charger station. It is easy to install, stable in performance, and provides a complete protection function. The LCD display can show the charging status, and user friendly. It supports GSM/3G/4G/Ethernet communication with a party system for remote monitoring/maintain/upgrade. The charger can optionally be equipped with a column support installed outdoors.

• Over 94% peak efficiency & 250A high output current.

• 200-1000Vdc wide output voltage range.

• Dual GB/T DC connectors are installed.

• Connect to any backend based on OCPP 1.6J protocol.

• Robust all-weather enclosure for indoor and outdoor use.

Flexibility

CCS2 and CHAdeMO are optional to meet different EV requirements.

Convenience

Equipped with a status light and a 10.4-inch touch screen, easy to use.

Smart O&M

Remote monitoring and diagnosis, firmware OTA upgrading (OCPP1.6J).

Smart Load Management

Smart power distribution according to each EV’s demand.

General Information
Input Rating	380Vac±15%, 3 Phases, 50/60Hz, L1+L2+L3+N+PE
Power Factor	≥0.99 @ Full Load
Efficiency	≥94% @ Full Load (Peak)
Grid Type	TN-S, TN-C-S
Output Interface	2 x GB/T DC
Output Power	180kW max./connector, 180kW max. in total (150kW max. & 120kW max. are optional)
Output Voltage	200-1000Vdc
Output Current	DC 500A max., DC 250A max./connector
User Interface
Display	7-inch touch screen
Support Language	Simplified Chinese, English (Other languages available upon request)
Button and Switch	Emergency button
User Authentication	RFID card, App
RFID Reader	ISO/IEC 14443 A Mifare RFID reader
Communication
Network Interface	4G, Ethernet
Protocol (EVSE&Backend)	OCPP 1.6J
Protocol (EVSE&EV)	GB/T 27930-2015
Environmental
Operating Temperature	-20℃ to 50℃
Storage Temperature	-40℃ to 70℃
Humidity	5% to 95% no condensation
Altitude	≤2000m above sea level
Mechanical
IP Rating	IP54
IK Rating	IK10
Cooling	Forced Air
Charging Cable Length	5m (7m optional)
Dimensions (WxHxD)	8501890750mm
Weight	Approx. 380kg (excluding power modules)
Installation	Ground mounting
Certification and standards
Standards	GB/T 18487.1-2015, NB/T 33001-2018, NB/T 33008.1-2018, GB/T 27930-2015, GB/T 18487.2-2017
Certification	GBT Type Test Report
