Deye SUN-80K-G04P3-EU-AM4 Suppliers, Company

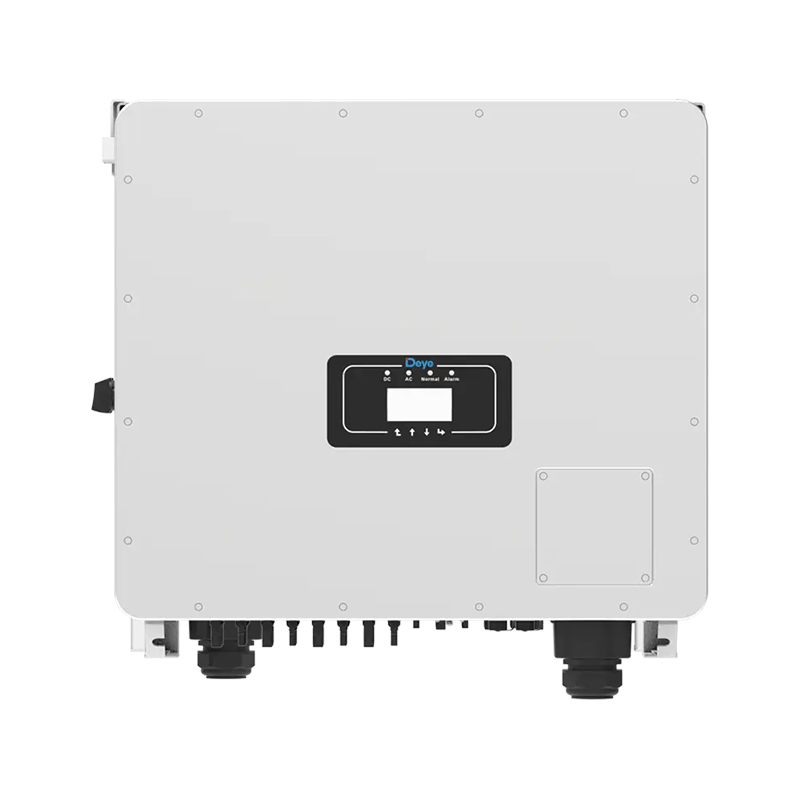

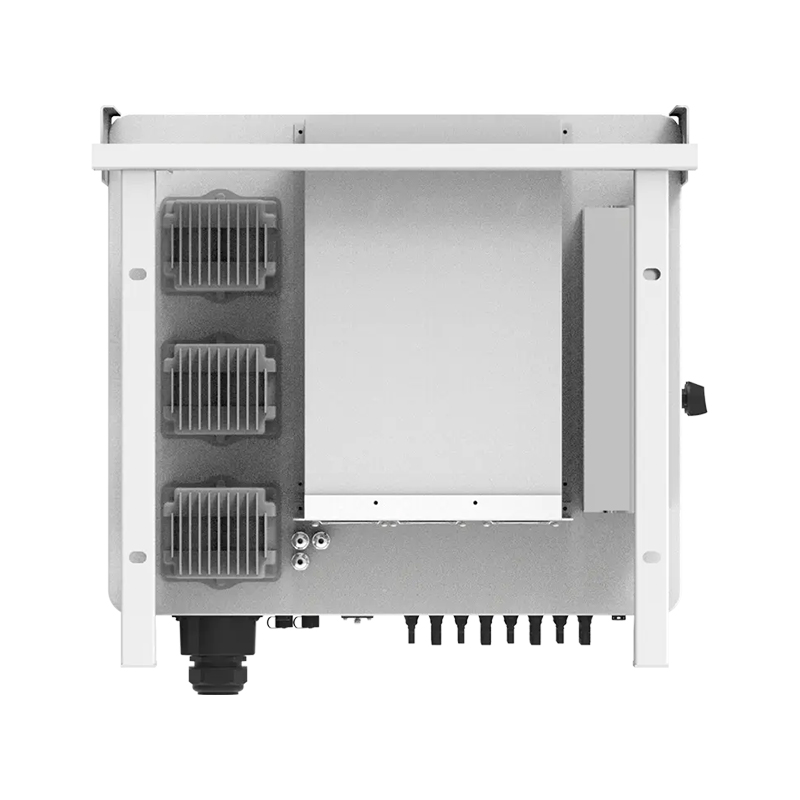

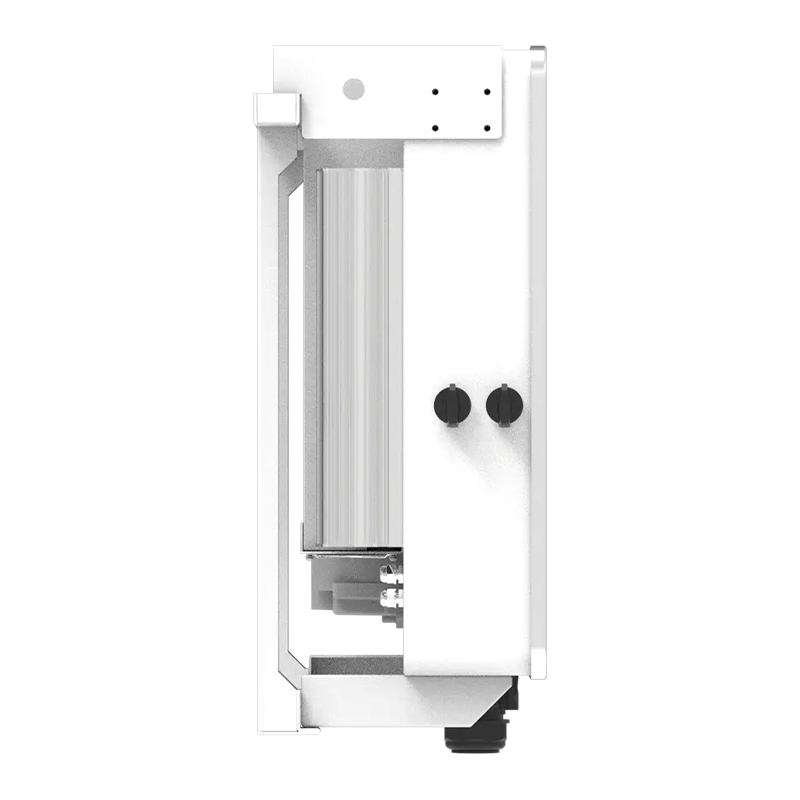

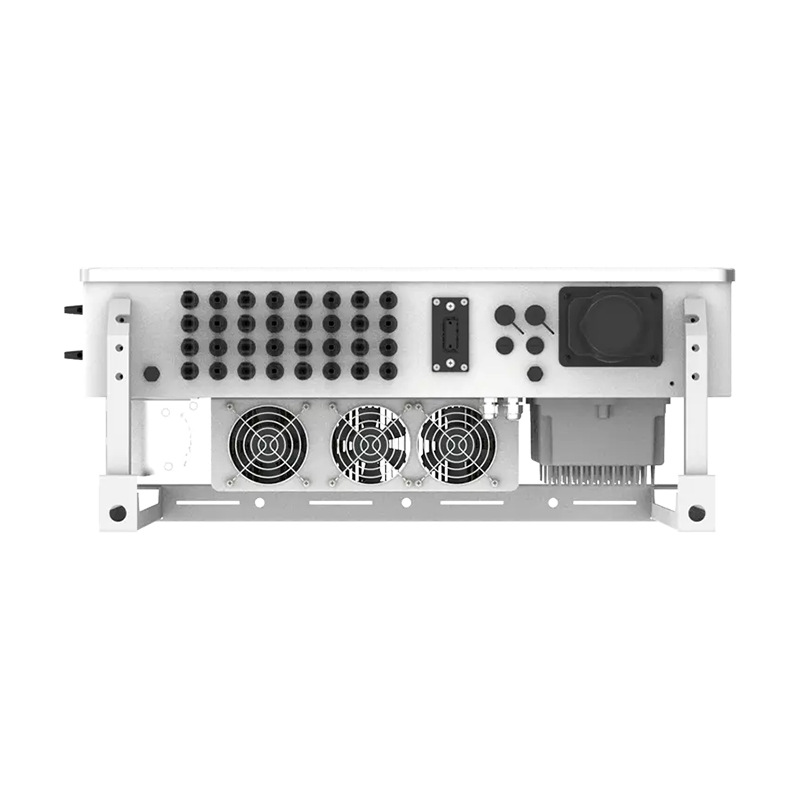

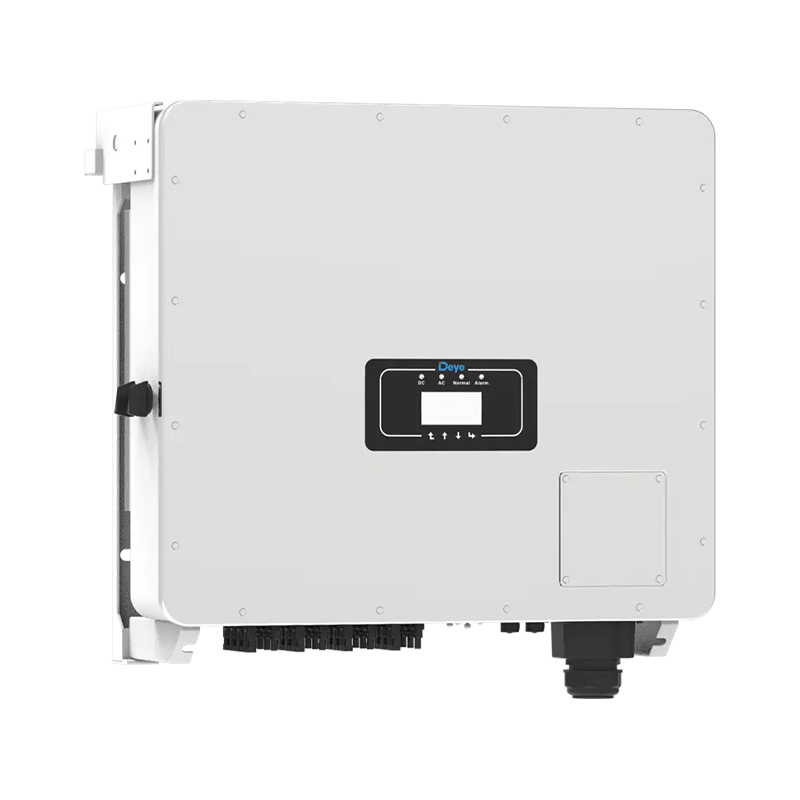

Deye SUN-80K-G04P3-EU-AM4

1635~1692 €/pcVAT excluded

Model	SUN-60K-G04P3-EU-AM4	SUN-70K-G04P3-EU-AM4	SUN-75K-G04P3-EU-AM4	SUN-80K-G04P3-EU-AM4
PV String Input Date
Max. PV Input Power(kW)	90	105	112.5	120
Max. PV Input Voltage(V)	1100
Start-up Voltage(V)	250
MPPT voltage range(V)	200-1000
Rated PV Input voltage(V)	600		720
Max. Input Short Circuit Current (A)	60+60+60+60
Max. Operating PV Input Current(A)	40+40+40+40
No. of MPP Trackers/No. of Strings MPP Tracker	4/3+3+3+3	4/4+4+4+4
AC Output Side
Rated AC Output Active Power (kW)	60	70	75	80
Max. AC Output Apparent Power (kVA）	66	77	82.5	88
Rated AC Output Current (A)	90.9/87	106.1/101.5	113.6/108.7	121.2/115.9
Max. AC Output Current (A)	100/95.7	116.7/111.6	125/119.6	133.3/127.5
Rated Output Voltage/Range (V）	220/380V, 230/400V 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
Rated Output Grid Frequency/range(Hz)	50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Power Factor Adjustment Range	0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%ln
Efficiency
Max. Efficiency	0.986	0.987
Euro Efficiency	0.98	0.981
MPPT Efficiency	＞99%
Equipment Protection
DC Reverse Polarity Protection	Yes
AC Output Overcurrent Protection	Yes
AC Output Overvoltage Protection	Yes
AC Output Short Circuit Protection	Yes
Thermal Protection	Yes
Insulation Impedance Detection	Yes
DC Component Monitoring	Yes
Arc Fault Circuit Interrupter (AFCI)	Optional
Anti-islanding Protection	Yes
Residual Current Detection	Yes
Surge Protection Level	TYPE II(DC),TYPE II(AC)
DC Switch	Yes
Interface
Communication Interface	RS485/RS232
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (°C)	-25 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude (m)	4000m
Noise (dB)	≤ 55
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm)	698×613×236.5 (Excluding Connectors and Brackets)
Weight [kg]	53.7
Warranty [year]	5 years
Type Of Cooling	Intelligent air cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
