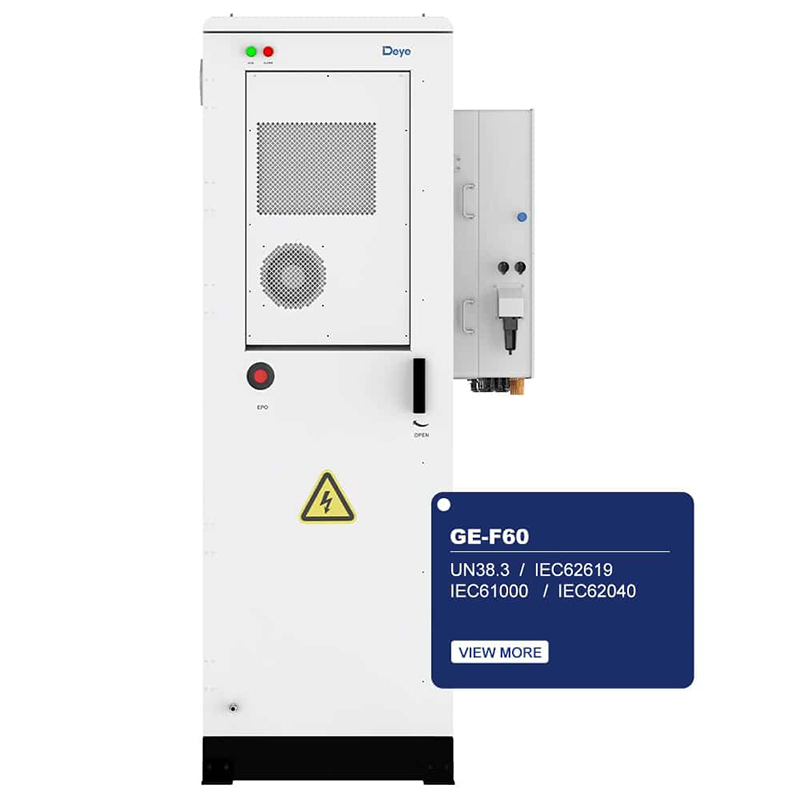

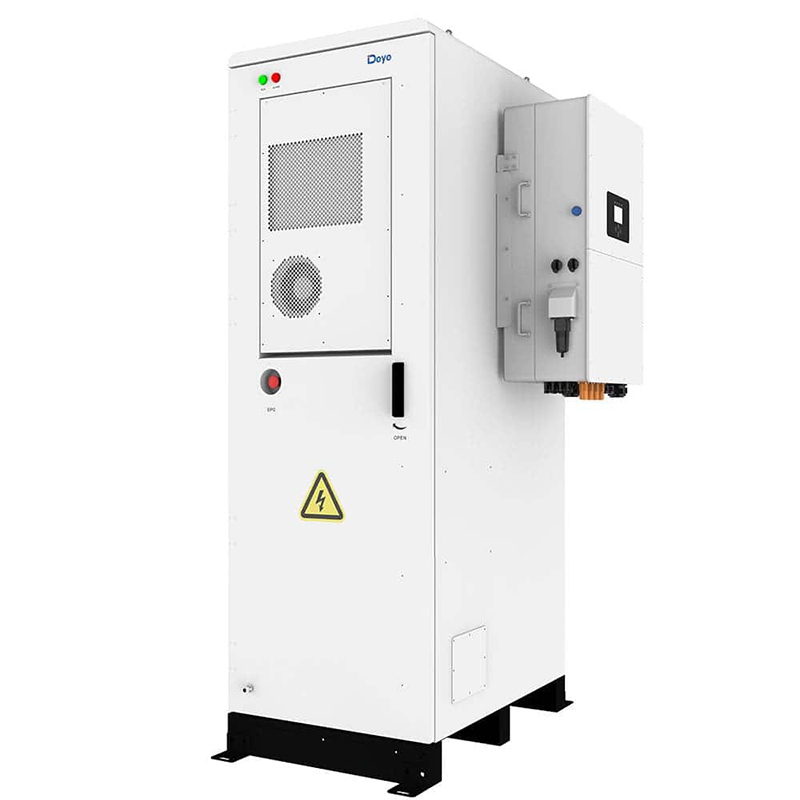

Deye GE-F60 HV ESS Block EVE 100AH, 61.44KWH, IP65, AIR-CON COOLING, INVERTER EXCLUDED

11856~14228 €/pcVAT excluded

Inquiry Us Add Product

PREV: Deye BOS-A-Rack 11 layers NEXT: No next product

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

The GE-F60 is a small-scale commercial and industrial energy storage solution (C&I ESS) designed to provide reliable backup power and energy management capabilities. This system boasts a compact design without compromising on safety or performance, making it suitable for various applications.

Advanced Safety: 5-level protection with fire alarm, active exhaust, and aerosol fire suppression. • Long-Lasting Performance: Over 6000 cycles with ≥70% End of Life (EOL). • High Capacity: Usable energy of 55.29 kWh with scalable expansion up to 3600 kWh. • Cutting-Edge Technology: Integrated EMS, hybrid inverter, and BMS with off-grid and black start support. • Durable Design: IP55-rated enclosure, operating range of -30°C to 60°C, and LiFePO₄ chemistry for thermal stability. • Compact and Flexible: Floor-mounted design with a footprint of 783 x 1059 x 2235 mm. • Reliable Warranty: Backed by a 10-year warranty and certified for global standards (UN38.3, CE, CB, IEC 62040).

Model	GE-F60
Main Parameter
Cell Chemistry	LiFeP0₄
Module Energy (kWh)	5.12
Module Nominal Voltage (V)	51.2
Module Capacity (Ah)	100
Battery Module Qty In Series	12
System Nominal Voltage (V)	614.4
System Operating Voltage (V)	480 -700
System Energy (kWh)	61.44
System Usable Energy (kWh)1	55.29
Rated DC Power	61.44
Recommend	50
Nominal	100
Peak Discharge (2 mins， 25 °C)	125
Status Indicator	Yellow: Battery High Voltage Power On Red: Battery System Alarm
Communication Port	CAN2.0/RS485
Humidity	5%~85%RH
Altitude	≤2000m
IP Rating of Enclosure	IP55
Dimension (w x D x h, mm)	783×1059×2235
Weight Approximate (kg)	1070
Installation Method	Floor-Mounted
Storage Temperature (°C)	0-35
Operating Temperature (°C)	-30-60( >45 derating)
Recommend Depth of Discharge	90%
Cycle Life	≥6000 (25±2°C, 0.5C / 0.5C, EOL70%)
Warranty3	10 years
Certification	UN38.3/CB/CE/CEC / IEC 62040

Model	GE-F120-4H2	GE-F120-3H2	GE-F120-2H2
System Specification
Nominal Output Power / UPS Power (W)	30000	40000	50000
AC Output Frequency and Voltage	50 / 60HZ，220/ 380，230 / 400Vac
Grid Type	3L/N/PE
Number of Parallel (Ofl-grid)	10
Energy Configuration (kWh)	122.8
Dimension(W x D x h,mm)	1780×1056×2235
Weight Approximate (kR)	2090
AC Output Rated Current (A)	45	60	75.8
Batteiy Operating Voltage (V)	500 ~700
Max.RTE	89%
Banefy chemistry	LiFePO4
IP Rating of Enclosure	IP55
installation Method	Floor Mounted
Storage Temperature (*°C)	0>35
Operating Temperature (*°C)	-20-55 (>43 derating)
Warranty	10 years
Inverter Technical Specification
Max. PV Input Power (W)	39000	52000	65000
Max PV Input Current (A)	36+36+36	36+36+36+36	36+36+36+36
Rated PV Input Voltage (Vdc)	600
Start Up DC Voltage (Vdc)	180
MPPT voltage Range (VDC)	150-850
Max. PV Short-circuit Current (A)	55+55+55	55+55+55+55	55+55+55+55
Number of MPPT	3	4	4
Peak Power (off-grid)	1.5 times of rated power, 10s
Power Factor	0.8 leading to 0.8 lagging
THD	<3%
DC Injection current (mA)	<0.5%ln
Display	LCD
Operating Temperature Range (*°C)	-40~60 (>45 derating)
Relative Humidity	15%~85% (No Condensing)
Dimension (WxDxH, mm)	527×294×894
inverter Communication	CAN, RS485, WIFI, ETH
Grid Regulation	VDE 4105,IEC 61727/62116,VDE 0126,AS 4777.2,CEI 0-21,EN 50549-1, G98,G99,C10-11,UNE217002,NBR16149/NBR16150
Max. Efficiency	97.6%
MPPT Efficiency	99.9%
Battery Technical Specification
Battery Module Nominal voltage (V)	51.2
Battery Module Energy (kWh)	5.12
BMS Communication	CAN
Batteiy Module Dimension (W x o x H mm)	440 x 570 x 133
Battery Module Weight (kg)	44
Cyde Life	>6000(@25°C±2°C, 0.5C /0.5C, 70%6EOL)
Battery Module Certification	UN38.3,IEC62619,IEC61000
