Dyness STACK100 15.36-76.8kWh Energy Storage System

Name: Dyness STACK100 15.36-76.8kWh Energy Storage System
Rating: 5 (99 reviews)

customizedVAT excluded

Inquiry Us Add Product

PREV: MARSTEK VENUS E AC Battery ESS NEXT: Dyness Tower Pro battery energy storage system

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

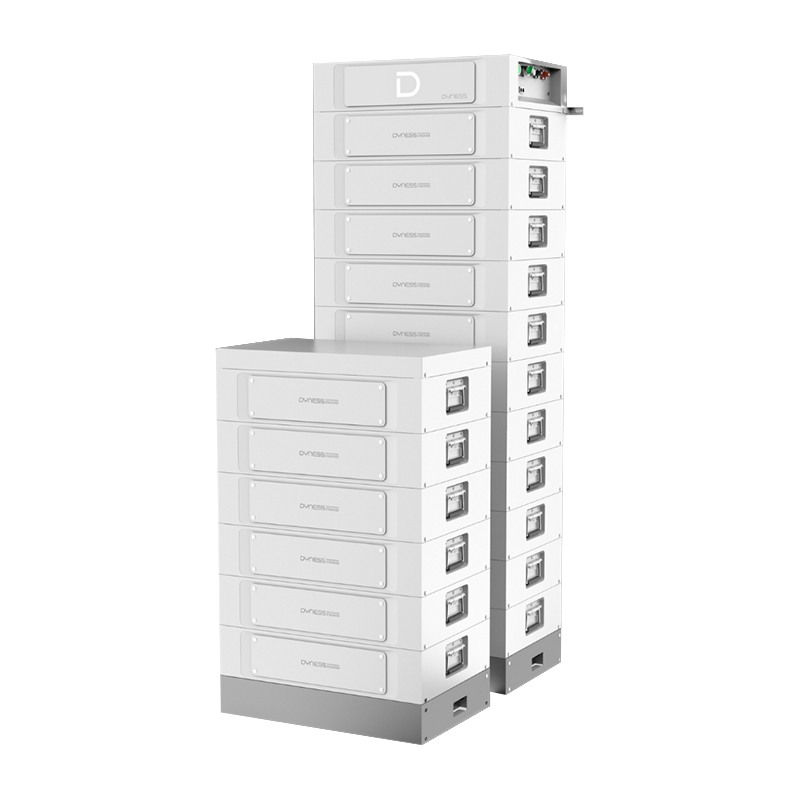

The Dyness STACK100 energy storage system is widely used in ebergy storage sector. It adopts modular design and can be used for residential and C&I applications. The reliable LiFePO4 technology ensures maximum safety and a longer life cycle.

Model	STACK100
Battery Type	LiFePO4
Module Voltage/Capacity	51.2V/100Ah
System Modules Serial Number	3~15
System Energy Range	15.36-76.8kWh
Operating Voltage	134-876V
Recommended Charge/Discharge Current	50A (0.5C)
Max. Charge/Discharge Current	100A (1C)
Peak Discharge Current(2min 25°C)	125A(1.25C)
Depth of Discharge	95%
Communication	CAN/RS-485
Cycle Life	Unlimited cycles/10 Years
Signal Module Weight	47Kg
Max. Single Cluster Dimension[WDH]	5913901700mm-11 module
Charging Temp. Range	0~55℃
Discharging Temp. Range	-20～55℃
Protection Level	IP20
Fire Protection System	Aerosol fire extinguisher
Installation method	Stack type
Cooling method	Forced wind cooling
WIFI Module	Built-in WIFI module; APP OTA function
Certification & Safety Standard	CE-EMC/CE-RED/62619/63056/62477/62040 /UN38.3
Compatible Inverters	Deye/Goodwe/Solis/SAJ/Sinexcel/Hoymiles/Gro-watt/Ecatus/Sermatec/ATESS/Sunways etc.

Contact Us

Welcome to Uni Z International B.V.

Uni Z International B.V. is committed to providing you with a full range of solar energy storage products and solutions. We guide the industry and provide you with products at more favorable prices, more timely logistics and delivery, and more secure after-sales and technical support. Dyness STACK100 15.36-76.8kWh Energy Storage System Suppliers and Company in China. We bring you one-stop solutions for smarter, more efficient and more reliable photovoltaic energy storage products. Wholesale Dyness STACK100 15.36-76.8kWh Energy Storage System.

We not only provide high-end solar energy storage products and technologies, but also provide you as an installer with comprehensive training and technical support. We believe that only if you have the latest knowledge and skills can our end customers enjoy the advantages of more advanced solar technology.

At Uni Z International B.V., we not only provide products, but also seek to establish a long-term and close partnership with you. We look forward to working with you to meet the challenges and opportunities of the future of solar energy.Start your solar energy journey, choose Uniz Solar and move towards a cleaner, more sustainable future!
