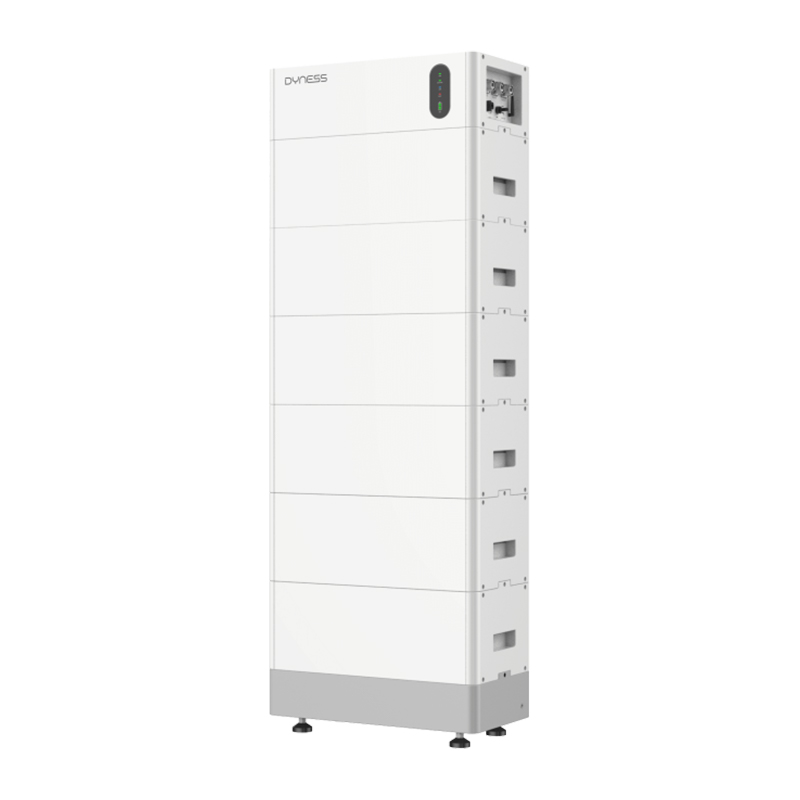

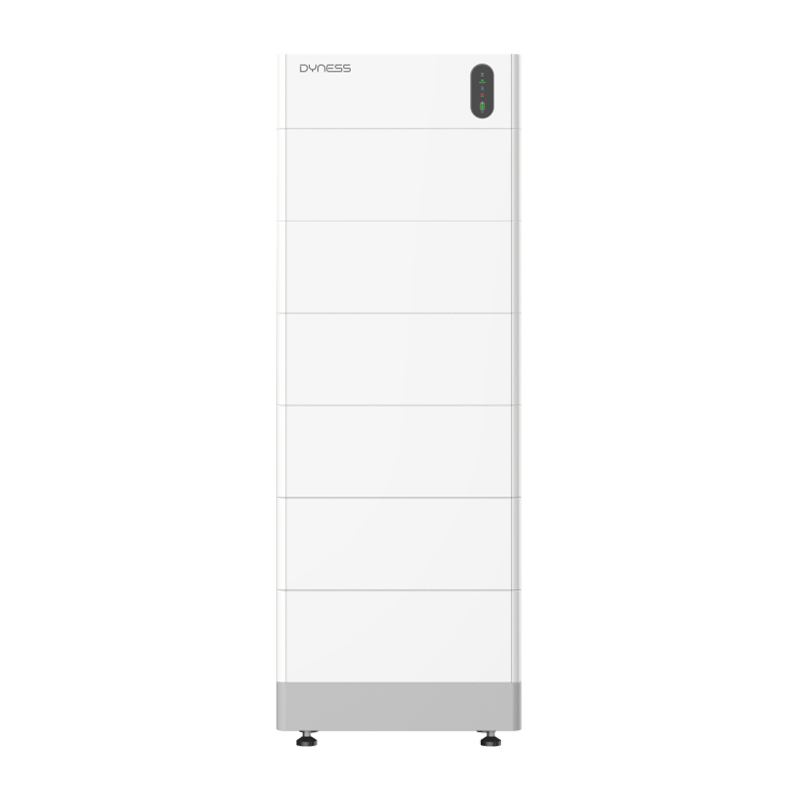

Dyness Tower Pro battery energy storage system

customizedVAT excluded

Inquiry Us Add Product

PREV: Dyness STACK100 15.36-76.8kWh Energy Storage System NEXT: No next product

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

Tower Pro is a high-voltage product designed for residential energy storage applications. It supports a maximum of 12 clusters in parallel and provides an energy capacity range from 7.68 kWh to 276.48 kWh. The system allows for a maximum 1C charge and discharge, and its stackable auto-configuration modules simplify installation and maintenance.

Model	Tower Pro TP7	Tower Pro TP11	Tower Pro TP16	Tower Pro TP19	Tower Pro TP23
Product Pattern
Battery Module Type	LiFePO₄	LiFePO₄	LiFePO₄	LiFePO₄	LiFePO₄
Battery Module Quantity	2	3	4	5	6
Rated Energy	7.68 kWh	11.52 kWh	15.36 kWh	19.2 kWh	23.04 kWh
Usable Energy	7.296 kWh	10.944 kWh	14.592 kWh	18.24 kWh	21.888 kWh
Operating Voltage	168-216V	252-324V	336-432V	420-540V	504-648V
Nominal Voltage	192V	288V	384V	480V	576V
Nominal Capacity	40Ah	40Ah	40Ah	40Ah	40Ah
Max. Continuous Charge/Discharge Power*	7.68 kW	11.52 kW	15.36 kW	19.2 kW	23.04 kW
Recommended Depth of Discharge(DOD)	0.95	0.95	0.95	0.95	0.95
Dimensions 【W/D/H】（mm）	587/310/788	587/310/1009	587/310/1230	587/310/1451	587/310/1672
Net Weight [kg]	109.5	150	190.5	231	271.5
Charging Temperature Range	0-55℃/-20-55℃ (with heating function)
Discharging Temperature Range	-10-55℃/-20-55℃ (with heating function)
Communication	CAN/RS485/RS232
Cycle life**	≥8000 Cycles
Protection Level	IP55
Warranty	10 Year
Heating Function	PI Heating (Optional)
Fire Protection Function	Aerosol fire extinguishing
OTA Remote Upgrade Function	Equipped
Battery Module Name	HV9640
Expansion	Max. 12 Tower Pro can be connected in parallel
Certification	IEC62619/IEC63056/IEC62672/IEC62040-QC/EMC/DE250-50/CIQ-01-23/CEI-0-16
Compatible Inverters	kostal/Ingeteam/Solis/GoodWe/Growatt/Soplanet/SAJ/DEYE/Hoymiles/SOLINTEG/Kaco ect.

Contact Us

Welcome to Uni Z International B.V.

Uni Z International B.V. is committed to providing you with a full range of solar energy storage products and solutions. We guide the industry and provide you with products at more favorable prices, more timely logistics and delivery, and more secure after-sales and technical support. Dyness Tower Pro battery energy storage system Suppliers and Company in China. We bring you one-stop solutions for smarter, more efficient and more reliable photovoltaic energy storage products. Wholesale Dyness Tower Pro battery energy storage system.

We not only provide high-end solar energy storage products and technologies, but also provide you as an installer with comprehensive training and technical support. We believe that only if you have the latest knowledge and skills can our end customers enjoy the advantages of more advanced solar technology.

At Uni Z International B.V., we not only provide products, but also seek to establish a long-term and close partnership with you. We look forward to working with you to meet the challenges and opportunities of the future of solar energy.Start your solar energy journey, choose Uniz Solar and move towards a cleaner, more sustainable future!
