Zetara Magic – ZCube2400

customizedVAT excluded

Inquiry Us Add Product

PREV: No previous product NEXT: Zetara Magic – ZCube5000-L

Product Description

Uni Z International B.V. +39 3444606026/+31610999937

Uni Z International B.V. [email protected]

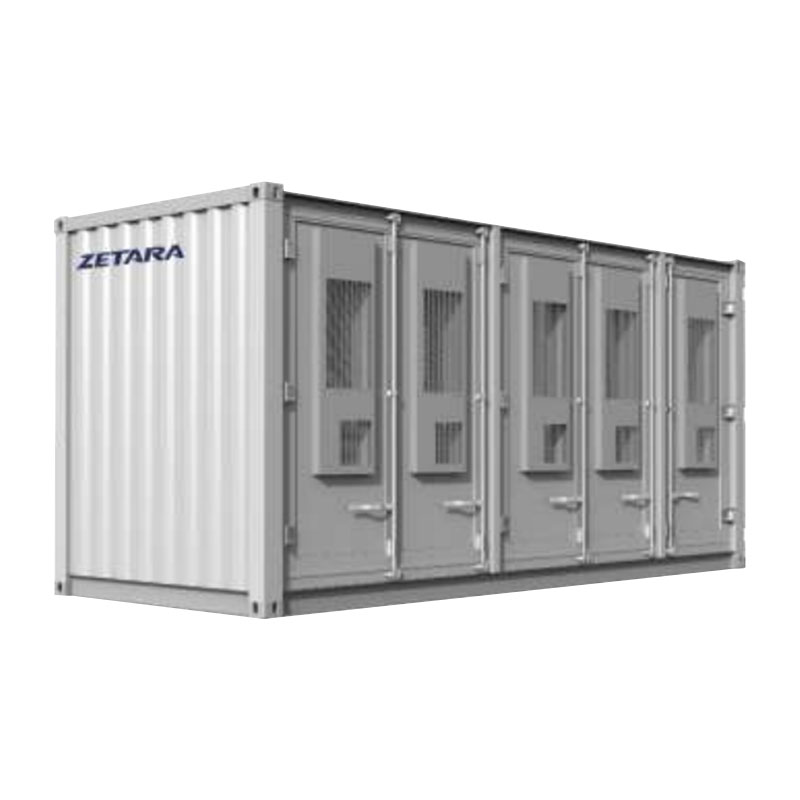

The ZCube2400 system is designed for outdoor high-voltage battery systems, featuring a modular, non-walk-in design that supports preassembly, minimal maintenance, and precise temperature control via industrial-grade air conditioning. With 0.5C charge/discharge capability, it integrates an intelligent BMS compatible with multi-brand PCS and offers a built-in 2.4 MWh capacity. Ideal for medium to large-scale industrial and commercial applications, such as enhancing solar self-consumption, backup power, and peak shaving.

Economical & Efficient
·High energy efficiency for optimized performance
·Factory pre-assembled, fast deployment, and easy transportation
·Advanced thermal management improves battery lifespan and system discharge capacity

Real-time monitoring and Control
·24/7 real-time monitoring and control, both remote and on-site
·Intelligent early warning system, automated safety checks, and elimination of potential hazards

Safety & Reliable
·Advanced electrical safety management with fast overcurrent breaking and arc suppression
·Separated electrical and battery cabinets to effectively prevent thermal runaway

Model	Magic-ZCube2400
Battery Parameter
Cell Type (Ah)	LFP280
System Configuration	272S1P*10
Module Rated Voltage (V)	51.2
Module Rated Energy (kWh)	14.336
Rated Voltage ()	870
Voltage Range (V)	734-979
Rated Energy (kWh)	2437
Rated Charge/Discharge Current (A)	1400/1400
Max. Charge/Discharge Current (A)	2000/2000
General Parameter
Protection Degree	IP54
Anticorrosion Grade	StandardC4
Cooling Mode	HVAC
Operating Temperature (°C)	-20- 50
Operating Humidity	0%-95%R.H
Elevation (m)	<2000
Firefighting System	Integrated
Dimension(WDH)(mm)	605824382896
Total Weight (t)	28
Communication Port	CAN, RS485, ETH
Compliance
Battery	IEC62619, IEC61000
