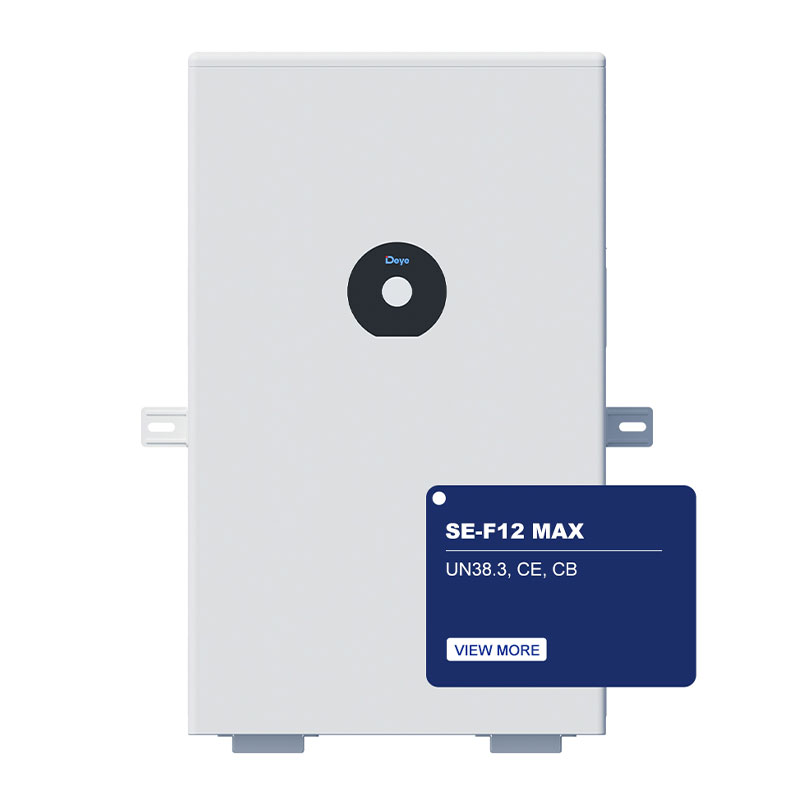

Deye SE-F12 Max 12kWh Low Voltage Battery

1431~1506 €/pcVAT excluded

Inquiry Us Add Product

PREV: Deye SE-F12 12kWh Low Voltage Battery NEXT: Deye SE-F16 16kWh Low Voltage Battery

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

SE-F12 Max is a high-protection, high-performance 11.8kWh LiFePO₄ battery aimed at demanding residential and small commercial ESS installations where safety, smart monitoring, and robust output matter. Its IP65/NEMA 3R enclosure rating and wide operating temperature range support reliable operation in varied environments, while the integrated BMS and protection design help safeguard the system under real-world conditions. With up to 11.8kW output capability and strong continuous/peak current ratings, it is well-suited for high-power cycling scenarios, and it supports modular expansion plus convenient monitoring via CAN/RS485/Bluetooth for easier ownership and maintenance.

Battery Chemistry	LiFePO₄
Rated Capacity	230 Ah
Nominal Voltage	51.2 V
Operating Voltage Range	44.8–57.6 V
Nominal / Usable Energy	11.8 kWh / 11.8 kWh
Max. Output Power	11.8 kW
Charge Current (Continuous Max / Peak)	230 A / 280 A (10 s)
Discharge Current (Continuous Max / Peak)	230 A / 280 A (10 s)
Recommended DoD	0.9
Dimensions (without mounting plate & terminals)	464 × 821 × 267 mm
Weight	approx. 95 kg
Ingress / Enclosure	IP65 / NEMA 3R
Cycle Life	≥6000 cycles (@25°C, 70% EOL capacity)
Max. Round-Trip Efficiency (DC)	0.95
Communication	CAN2.0, RS485, Bluetooth
Warranty	10 years
Certifications	UN38.3, CE, CB
