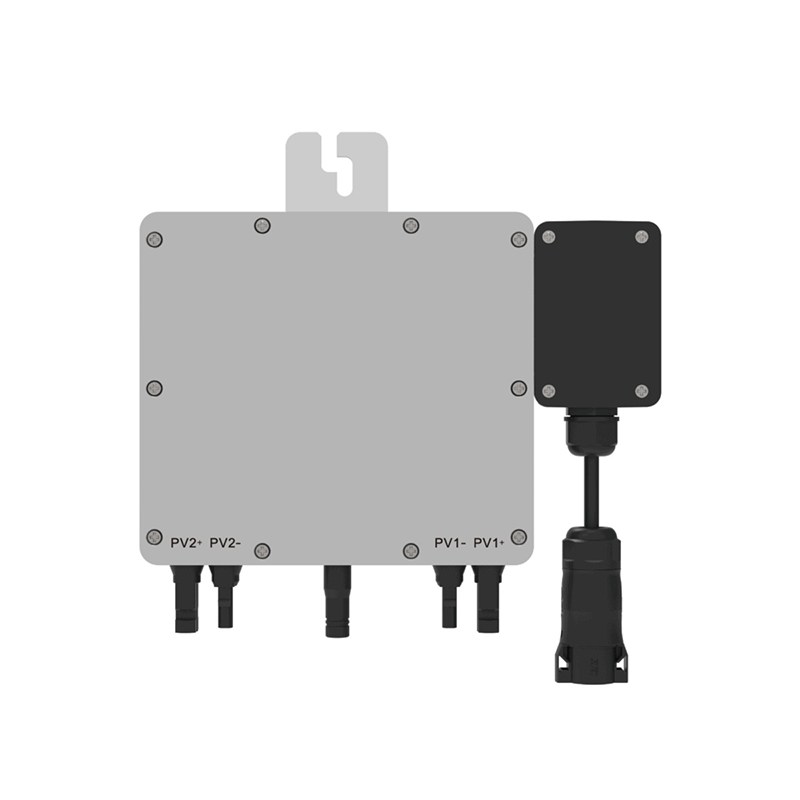

Deye SUN-M80G4-EU-Q0 800W G4 Dual-MPPT WiFi Microinverter

Name: Deye SUN-M80G4-EU-Q0 800W G4 Dual-MPPT WiFi Microinverter
Rating: 5 (99 reviews)

customizedVAT excluded

Inquiry Us Add Product

PREV: Deye SUN-M60G4-EU-Q0 600W G4 Dual-MPPT WiFi Microinverter NEXT: Deye SUN-M100G4-EU-Q0 1000W G4 Dual-MPPT WiFi Microinverter

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

The Deye SUN-M80G4-EU-Q0 pairs two independent MPPT channels with 800 W of AC output, making it particularly well suited to paired-module residential arrays that want an 800 W AC class without giving up per-panel MPPT. Each PV input is tracked separately, so two modules can face different directions or experience different shading without forcing both panels onto the same operating point. The official G4 datasheet gives a 25–55 V MPPT range, 60 V maximum PV voltage and 13 A operating current per input, with the model sized for modules in the published 210–560 W range. Wi‑Fi monitoring is built in, the enclosure is rated IP67, and natural cooling keeps the unit fanless and quiet at ≤25 dB. At 230 V the published AC current is 3.5 A, with up to 6 units per branch. This exact 800 W model is a strong fit when installers want panel-level MPPT plus a simple AC-trunk architecture for small residential solar.

Rated / max. AC output	800 W / 800 VA
PV connection	2 modules; recommended module power range 210–560 W per published datasheet configuration
PV input	60 V max; 20 V start; MPPT range 25–55 V; rated PV input 42.5 V
MPPT	2 independent trackers / 1 string each; max. operating current 13+13 A; short-circuit current 19.5+19.5 A
Rated/max. AC output current	3.5 A at 230 V
Max. units per branch	6
Efficiency	max. 96.5%; Euro 96.0%; MPPT >99%
Communication	Wi‑Fi; IP67; isolated topology; noise ≤25 dB
Operating temperature	-40°C to +65°C; dimensions 280.5×190×40 mm; weight 3 kg; natural cooling; warranty 10 years
