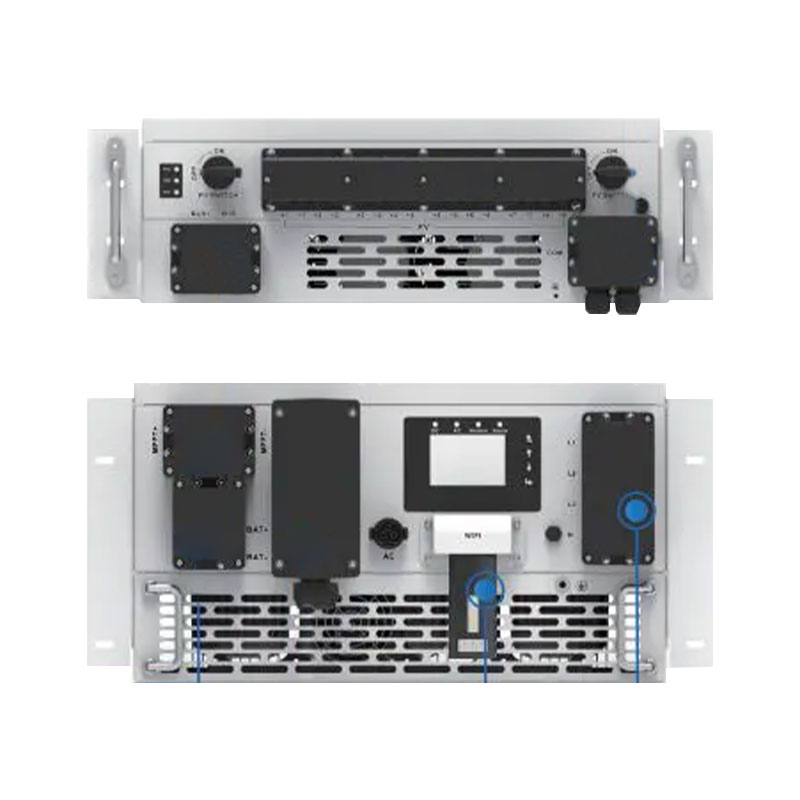

Deye SUN-125K-PCS01HP3 125kW Bidirectional PCS for C&I Energy Storage

3,250 ~3,350 €/pcVAT excluded

Official model	SUN-125K-PCS01HP3
Battery/DC	630-1000 V;
max charge/discharge current	200 A
1 battery input
AC	125 kW rated active power;
125 kVA max
220/380 or 230/400 V;
3L+N+PE
Efficiency	98.5% max
Euro	97.8%;
MPPT efficiency	>99%
Protection	Type II DC/AC surge protection;
IP65 PCS module
Communication	Wi-Fi, RS485, CAN, Meter; LCD
Operating range	-40 to 60 °C; derating above 45 °C
Dimensions/weight	543 x 310 x 775 mm; 70.35 kg

PCS Model	SUN-100K-PCS01HP3	SUN-125K-PCS01HP3
Battery Data
Battery Type	Lithium-ion
Battery Voltage Range (V)	630-1000
Max. Charging Current (A)	175	200
Max. Discharging Current (A)	175	200
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
DCInput Data
DC Input Voltage Range(V)	630－1000
Max.DC Input Current(A)	200
AC Input/Output Data
Rated AC Input/Output Active Power (kW)	100	125
Max. AC Input/Output Apparent Power (kVA)	110	125
Rated AC Input/Output Current (A)	151.6/145	189.4/181.2
Max.AC Input/Output Current (A)	166.7/159.5	189.4/181.2
Rated Input/Output Voltage/Range(V)	220/380,230/400 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
Rated Input/Output Grid Frequency/Range	50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Power Factor Adjustment Range	A~1
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DCInjection Current	<0.5%In
Efficiency
Max. Efficiency	98.50%
Euro Efficiency	97.80%
MPPT Efficiency	>99%
Equipment Protection
Integrated	AC Output Overcurrent Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection,Anti-islanding Protection,Insulation Impedance Detection, Residual Current Detection
Surge Protection Level	TYPE I(DC), TYPE II(AC)
Interface
LCD/LED display	LCD
Communication Interface	WIFI, RS485, CAN, Meter
General Data
Operating Temperature Range("C)	-40°C-60°℃,>45°C Derating
Permissible Ambient Humidity	0-95%
Permissible Altitude	4000m
Noise	<75dB
Ingress Protection(IP) Rating	IP 65(PCS Module)
Cabinet Size[WXHXD](mm)	543x310x775
Weight (kg)	70.35
Inverter Topology	Non-Isolated
Over Voltage Category	OVC I(DC), OVC IL(AC)
Type of Cooling	Intelligent Air Cooling
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation	IEC61727,IEC 62116,CEI0-21,EN 50549,NRS 097,RD 140,UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety/EMC Standard	IEC/EN 62477-1
