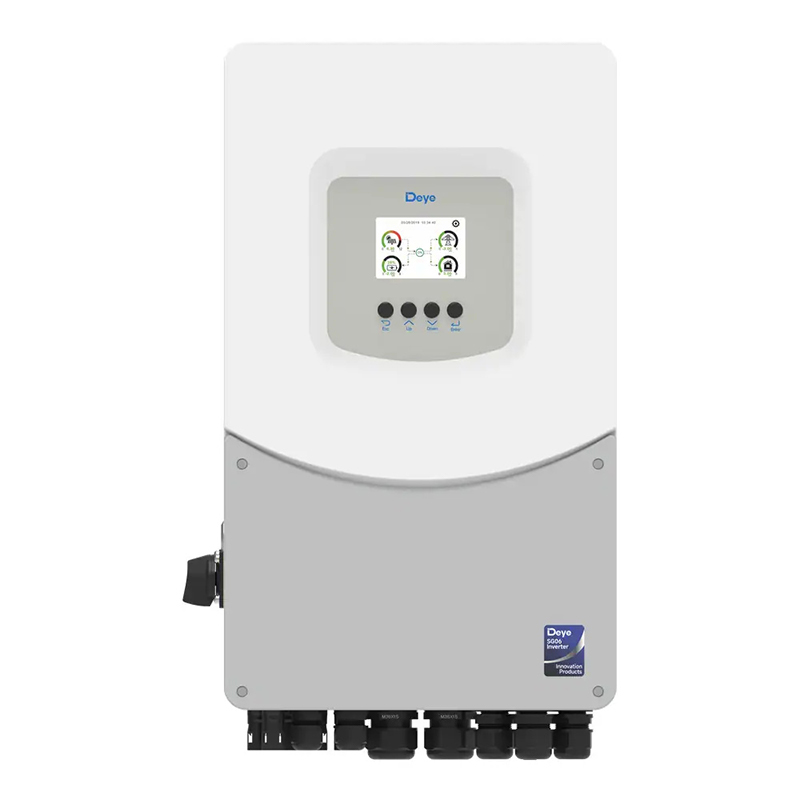

Deye SUN-10K-SG06LP1-EU-BM3 10kW 3-MPPT Single-Phase 48V SG06 Hybrid Inverter

Name: Deye SUN-10K-SG06LP1-EU-BM3 10kW 3-MPPT Single-Phase 48V SG06 Hybrid Inverter
Rating: 5 (99 reviews)

1418~1450 €/pcVAT excluded

Inquiry Us Add Product

PREV: Deye SUN-8K-SG06LP1-EU-BM3 8kW 3-MPPT Single-Phase 48V SG06 Hybrid Inverter NEXT: Deye SUN-12K-SG06LP1-EU-BM3 12kW 3-MPPT Single-Phase 48V SG06 Hybrid Inverter

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

The Deye SUN-10K-SG06LP1-EU-BM3 brings 10kW of rated hybrid power to large homes, small farms and workshops that want serious backup power on a single-phase service. Unlike the smaller SG06 models, this exact BM3 version is built around three MPPT trackers and accepts up to 20 kW of connected PV, giving installers more freedom to separate roof orientations, module groups or shading zones. Its 40–60 V battery interface supports up to 220 A charge/discharge current, a critical figure for achieving the intended storage power without undersizing the battery connection. On backup, the inverter can supply twice rated power for 10 seconds, while AC coupling, generator support, programmable time-of-use operation and up to 16-unit parallel capability expand the design beyond simple self-consumption. IP65 protection and Deye's communications stack make this 10kW model a strong fit where residential-scale equipment must handle genuinely high-power loads.

Rated AC power	10kW
max. AC apparent power	11 kVA
Battery	lead-acid or Li-ion, 40–60 V; max. charge/discharge current 220 A
Max. PV access power	20 kW
max. PV input power	16 kW
PV input	500 V max; 125 V start; MPPT range 150–425 V; rated PV input 370 V
MPPT	3 trackers; Deye current table confirms three independent MPPT channels
Rated AC input/output current	45.5/43.5 A
max. AC input/output current	50/47.9 A
Off-grid peak	2× rated power for 10 s
continuous AC passthrough	up to 70 A within this family
Efficiency	max. 97.6%; Euro 96.5%; MPPT >99%
System	220/230 V single phase; IP65; Wi‑Fi/RS485/CAN; up to 16 in parallel; AC coupling/genset support
