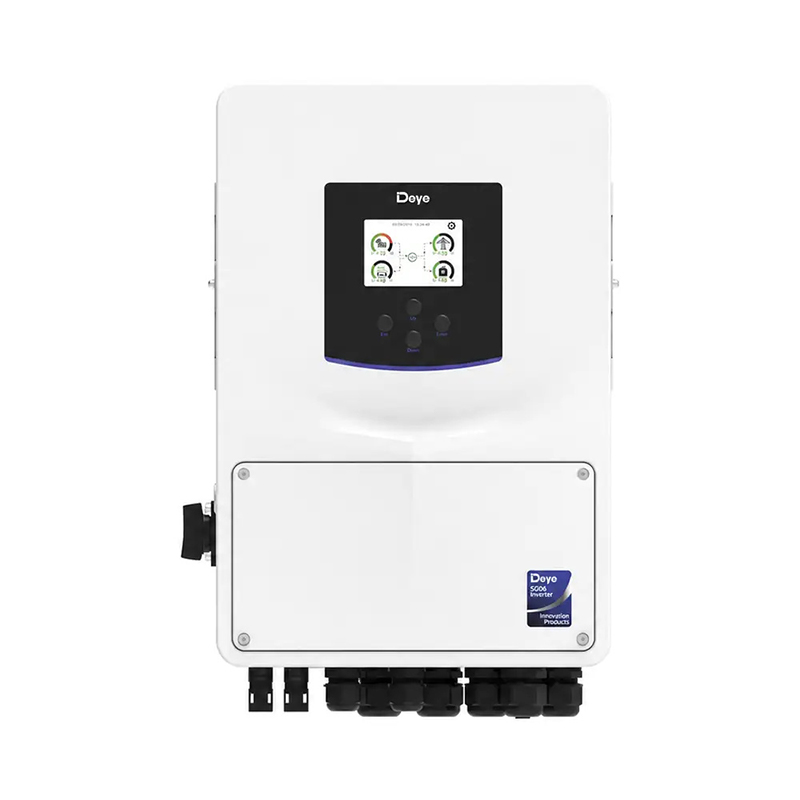

Deye SUN-3.6K-SG06LP1-EU-CM2 3.6kW Single-Phase 48V SG06 Hybrid Inverter

Name: Deye SUN-3.6K-SG06LP1-EU-CM2 3.6kW Single-Phase 48V SG06 Hybrid Inverter
Rating: 5 (99 reviews)

750~780 €/pcVAT excluded

Inquiry Us Add Product

PREV: Deye SUN-3K-SG06LP1-EU-CM1 3kW Single-Phase 48V SG06 Hybrid Inverter NEXT: Deye SUN-4K-SG06LP1-EU-CM2 4kW Single-Phase 48V SG06 Hybrid Inverter

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

The Deye SUN-3.6K-SG06LP1-EU-CM2 is a 3.6kW SG06 single-phase low-voltage hybrid inverter tuned for small-to-medium homes with two meaningful roof orientations. This exact CM2 version uses a 40–60 V battery interface with a published maximum charge/discharge current of 90 A, so battery sizing can be matched to the inverter rather than inferred from the wider family. Its solar input is equally specific: up to 7.2 kW PV access, 5.76 kW maximum PV input and 2 MPPT tracker(s) across a 150–425 V MPPT window. The inverter produces 3.6kW rated AC power, supports 50 A continuous AC passthrough, 2× rated off-grid power for 10 seconds, AC coupling and diesel-generator integration. Six programmable time periods, IP65 protection, Wi‑Fi/RS485/CAN communications and parallel operation up to 16 units round out a residential platform designed for self-consumption, tariff shifting and dependable backup.

Rated AC power	3.6kW
max. AC apparent power	3.96 kVA
Battery	lead-acid or Li-ion; 40–60 V; max. charge/discharge current 90 A
Max. PV access power	7.2 kW
max. PV input power	5.76 kW
PV input	500 V max; 125 V start; MPPT range 150–425 V; rated PV input 370 V
MPPT	2 tracker(s); max. operating PV current 18+18 A; max. short-circuit current 27+27 A
Rated AC input/output current	16.4/15.7 A
max. AC input/output current	18/17.3 A
Continuous AC passthrough	50 A
off-grid peak	2× rated power for 10 s
Efficiency	max. 97.6%; Euro 96.5%; MPPT >99%
System	220/230 V single phase; IP65; Wi‑Fi/RS485/CAN; up to 16 in parallel; AC coupling/genset support
