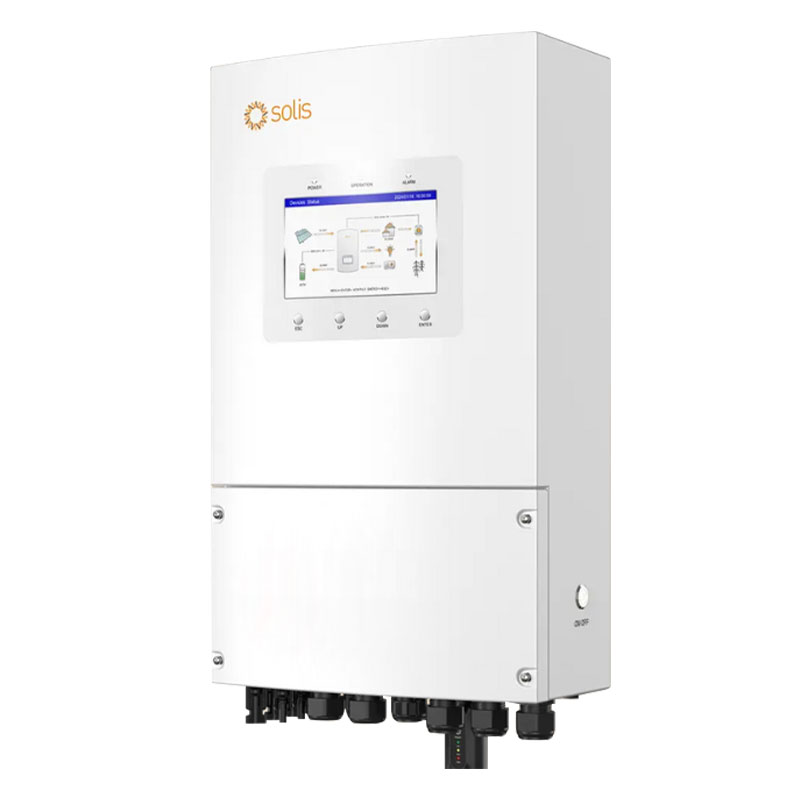

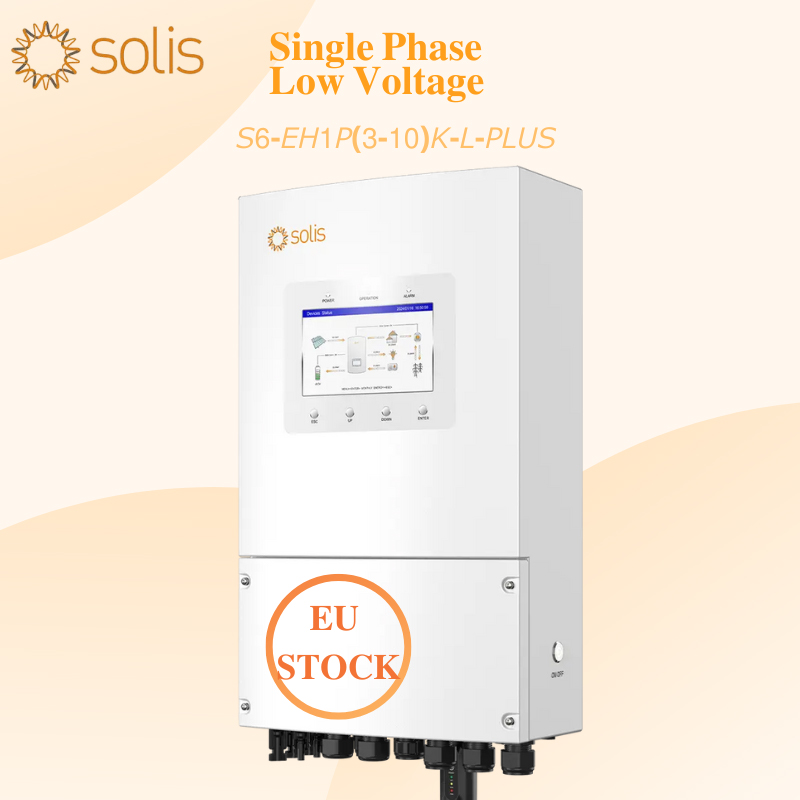

Solis S6-EH1P5K-L-PLUS Solar Storage Inverter

710-740 €/pcVAT excluded

Models	3K	3.6K	5K	6K	8K	10K
Input DC (PV side)
Recommended max. PV array size	6 kW	7.2 kW	10 kW	12 kW	16 kW	20 kW
Max. usable PV input power	4.8 kW	5.76 kW	8 kW	9.6 kW	12.8 kW	16 kW
Max. input voltage	500 V
Rated voltage	330 V
Start-up voltage	90 V
MPPT voltage range	90-435 V
Max .input current	16 A/16 A				32 A/32 A	42 A/42 A
Max. short circuit current	20 A/20 A				40 A/40 A	48 A/48 A
MPPT number /Max.input strings number	2/2				2/4
Battery
Battery type	Li-ion / Lead-acid
Battery voltage range	40 - 60 V
Max. charge/discharge power	3 kW	3.6 kW	5 kW	6 kW	8 kW	10 kW
Max. charge/discharge current	70 A	80 A	112 A	135 A	190 A	210 A
Communication	CAN / RS485
Output AC (Grid side)
Rated output power	3 kW	3.6 kW	5 kW	6 kW	8 kW	10 kW
Max. apparent output power	3 kVA	3.6 kVA	5 kVA	6 kVA	8 kVA	10 kVA
Operation phase	L/N/PE
Rated grid voltage	220 V / 230 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	13.7 A / 13.1 A	16.4 A / 15.7 A	22.8 A / 21.8 A	27.3 A / 26.1 A	36.4 A / 34.8 A	45.5 A / 43.5 A
Max. output current	13.7 A / 13.1 A	16.4 A / 15.7 A	22.8 A / 21.8 A	27.3 A / 26.1 A	36.4 A / 34.8 A	45.5 A / 43.5 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Input AC (Grid side)
Input voltage range	187 - 253 V
Max. input current	21 A	25 A	32 A	40 A	50 A	65 A
Frequency range	45 - 55 Hz / 55 - 65 Hz
Output AC (Back-up)
Rated output power	3 kW	3.6 kW	5 kW	6 kW	8 kW	10 kW
Max. apparent output power	2 times of rated power, 10 s
Back-up switch time	< 10 ms
Rated output voltage	L/N/PE, 220 V / 230 V
Rated frequency	50 Hz / 60 Hz
Rated output current	13.7 A / 13.1 A	16.4 A / 15.7 A	22.8 A / 21.8 A	27.3 A / 26.1 A	36.4 A / 34.8 A	45.5 A / 43.5 A
Max. AC passthrough current	35 A	35 A	40 A	40 A	50 A	65 A
THDv (@linear load)	< 2%
Input Generator
Max. input power	3 kW	3.6 kW	5 kW	6 kW	8 kW	10 kW
Max. input current	13.7 A / 13.1 A	16.4 A / 15.7 A	22.8 A / 21.8 A	27.3 A / 26.1 A	36.4 A / 34.8 A	45.5 A / 43.5 A
Rated input frequency	50 Hz / 60 Hz
Efficiency
Max. efficiency	96.20%
EU efficiency	96.10%
BAT charged by PV / AC max. efficiency	95.3% / 93.9%
BAT discharged to AC max. efficiency	93.80%
Protection
Anti-islanding protection	Yes
Ground fault monitoring	Yes
DC reverse-polarity protection	Yes
Integrated AFCI 2.0	Optional
Protection class / Over-voltage category	I / II (PV and BAT), III (MAINS and BACKUP and GEN)
General Data
Dimensions (W x H x D)	335 x 560 x 253 mm
Weight	23 kg			23.5 kg		23.8 kg
Topology	High frequency isolation (for battery)
Operating ambient temperature range	-40 ~ +60°C
Relative humidity	0 - 100%
Ingress protection	IP66
Noise emission (typical)	< 65 dB(A)
Cooling concept	Natural cooling			Intelligent fan-cooling
Max. operation altitude	3000 m
Grid connection standard	NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150, G98, CEI 0-21
Safety /EMC standard	IEC/EN 62109-1/-2, EN 61000-6-2/-3
Features
DC connection	MC4 plug (PV port) / Terminal Block (BAT port)
AC connection	Terminal Block
Display	7.0" LCD display & Bluetooth + APP
Communication	RS485, CAN, Optional: Wi-Fi, GPRS, LAN
