Metal Roof Mount Bracket

customizedVAT excluded

Technical datasheet

L foot with tapping screw

Material	AL6005-T5 & SUS304
Screw size	ST6.3*65, other sizes also available
Weight	0.09kg
Packing information	240pcs in a carton
L foot kit with tapping screw is widely used in both commercial and industrial solar projects. It's suitable for trapezoidal metal roofs and corrugated metal roofs. The kit can achieve a stable connection between the roof mounting and the roof structure.

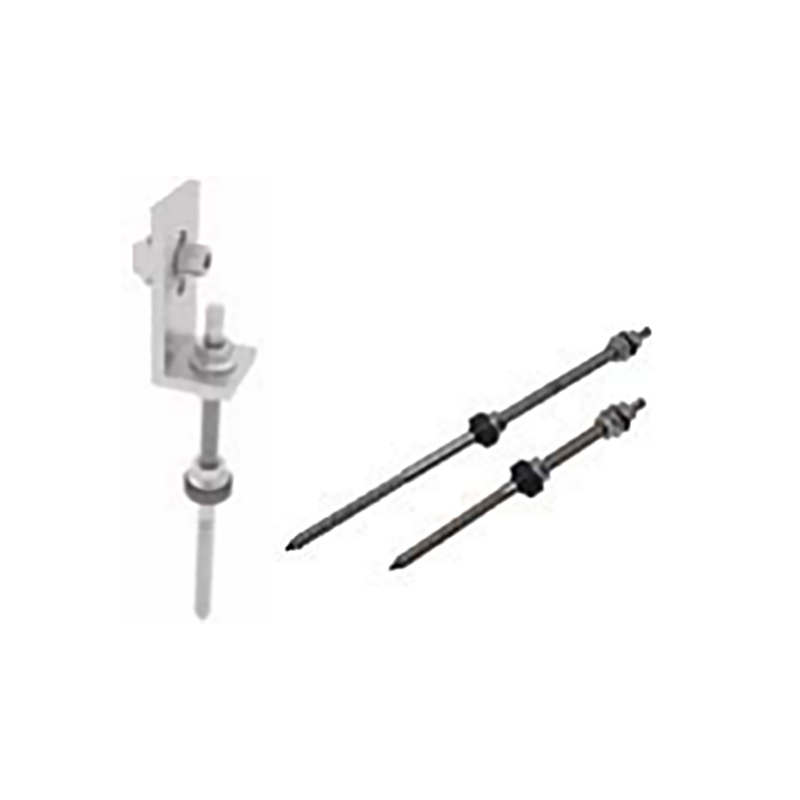

L foot with hanger bolt

Material	AL6005-T5&SUS304
Hanger bolt size	M10x200mm as standard; M 10x250mm, M12x300mm also available
Weight	0.26kg
Packing information	200pcs in a carton
L foot kit with hanger bolt is suitable for metal roofs with wooden rafters. Different lengths are available. And for the metal rafter, we also have an anchor bolt M10x200mm instead. Super Solar always provides the precise solution to every single project.

Mini rail / Free standing

Material	AL6005-T5 & SUS304
Components	Mini rail, tapping screw 3 , EPDM pad 3
Length	200mm, or others
The Mini rail, also called the free-standing rail, can be fixed on a trapezoidal roof sheet directly. The smart design ensures minimal installation time and cost. The higher rail improves heat dissipation and makes it suitable for tropical zones.

Quickfix mini rail

Material	AL6005-T5 & SUS304
Components	Quickfix mini rail, tapping screw 4, EPDM pad 2
Length	200mm, 400mm, or others
Quickfix mini rail can be fixed on a metal roof sheet directly. The smart design ensures minimal installation time and cost. The higher rail improves heat dissipation and makes it suitable for tropical zones.

Trapezoidal roof clamp serise

Material	AL6005-T5
Screw size	STST6.3X19, other size also available
Weight	about 0.08kg
Packing information	200pcs in a carton
This series of roof clamps is designed for the trapezoidal metal roof. The tapping screw fixed from the bevel side allows it to have a good function of anti-leak. For diverse measurements of roof sheets and different panel arrays, we supply different sizes of clamps.

Trapezoidal roof mounting clamp serise

Material	AL6005-T5
Weight	about 0.11kg
Packing information	150pcs in a carton
This series of roof mounting clamps is designed for the trapezoidal metal roof. It's a penetrating solution which is cortunnnels directly on it. Forrail, so we can fix the panel clamps and lay the panels directly on it. For diverse measurements of roof sheets and different panel arrays, we supply different sizes of clamps.

Standing seam roof clamp

Material	AL6005-T5 & SUS304
weight	about 0.13kg
Packing information	200pcs in a carton
This series of standing roof clamps is our more popular option for standing roof solar systems. it can work with both vertically and horizon-tally-oriented standing seam roof profiles and securely attaches without piercing the metal paneling, providing easy installation and a long-lasting connection with no risk of leaks.

Standing seam roof mounting clamp

Material	AL6005-T5 & SUS304
Weight	about 0.33kg
Packing information	100pcs in a carton
This series of standing roof clamps is our more popular option for standing roof solar systems. It's a penetrating solution that is combined with a roof clamp and rail, so we can fix the panel clamps and lay the panels directly on it. The clamps are simply attached to the standing seams and offer a secure fastening without penetrating the roof sheets, ensuring great stability with min. weight.
