Deye SUN-25K-SG01HP3-EU-AM2 Suppliers, Company

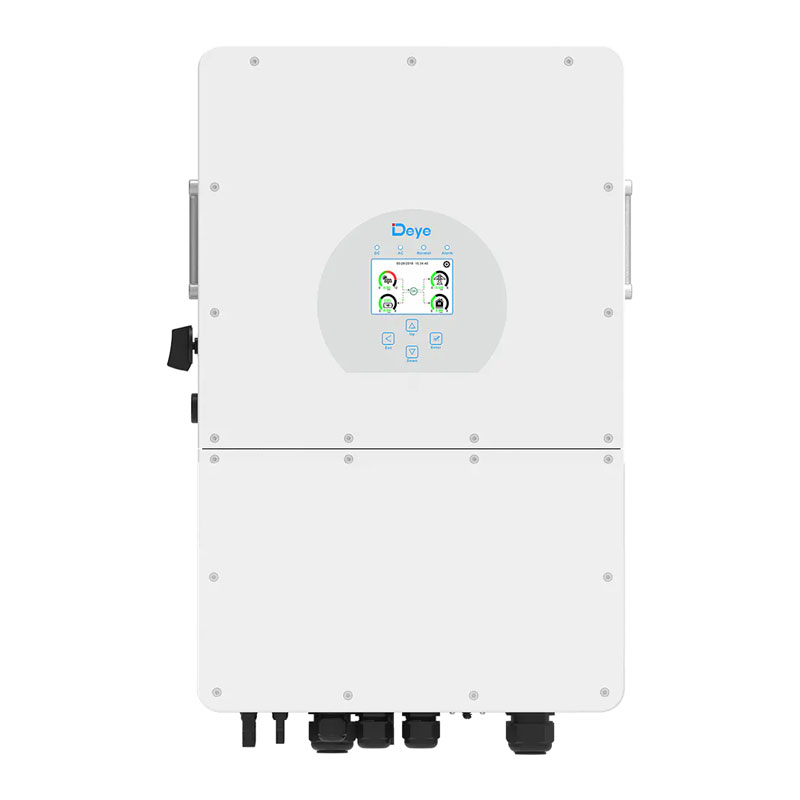

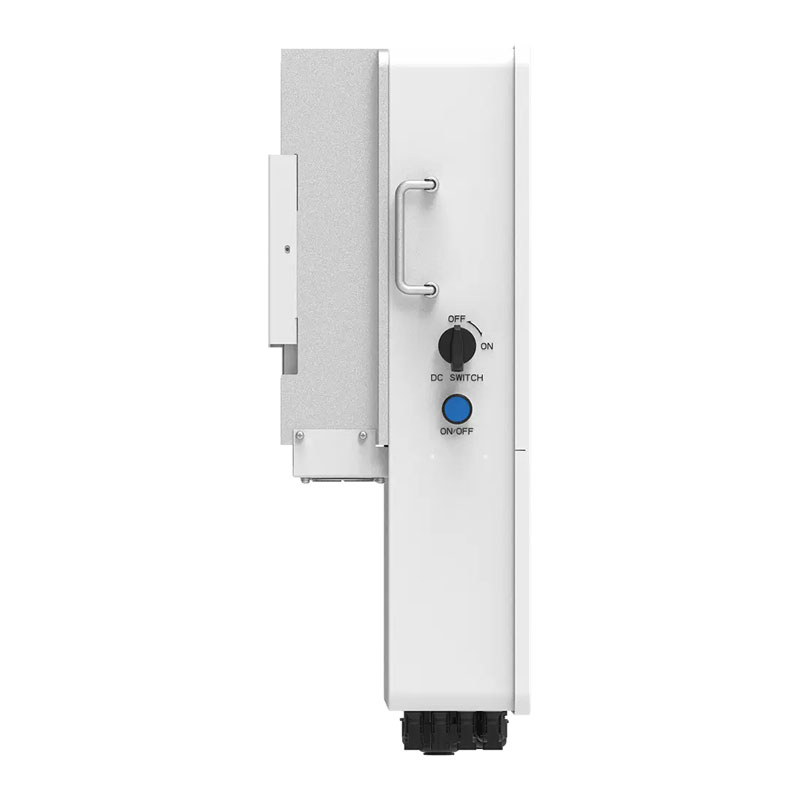

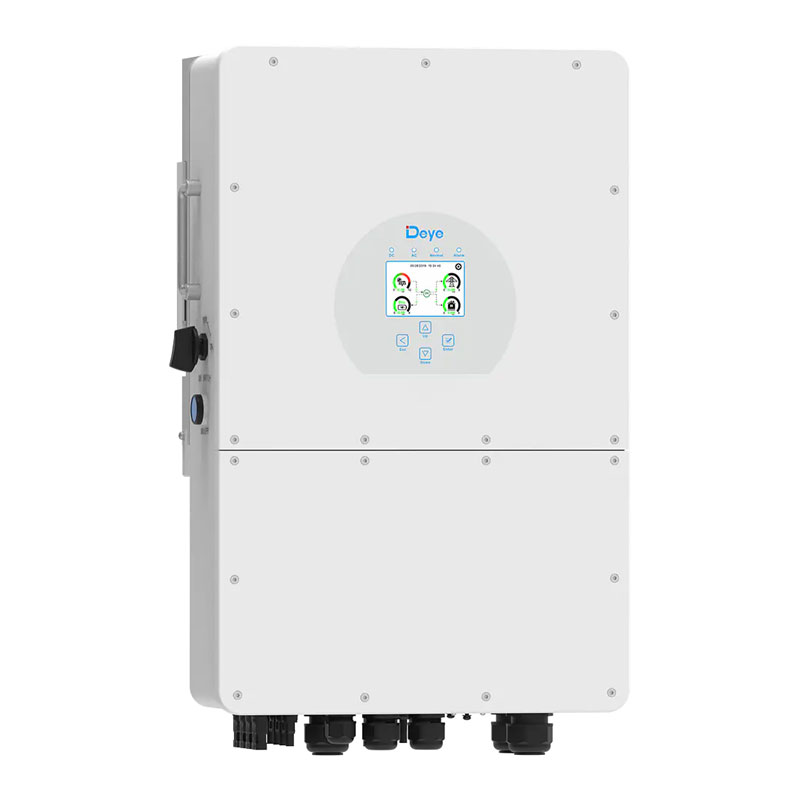

Deye SUN-25K-SG01HP3-EU-AM2

2150~2280 €/pcVAT excluded

Model	SUN-5K -SG01HP3-EU-AM2	SUN-6K -SG01HP3-EU-AM2	SUN-8K -SG01HP3-EU-AM2	SUN-10K -SG01HP3-EU-AM2	SUN-12K -SG01HP3-EU-AM2	SUN-15K -SG01HP3-EU-AM2	SUN-20K -SG01HP3-EU-AM2	SUN-25K -SG01HP3-EU-AM2
Battery Input Data
Battery Type	Lithium-ion
Battery Voltage Range(V)	160-700
Max.Charging Current(A)	30	30	37					50
Max.Discharging Current(A)	30	30	37					50
Charging Strategy for Li-ion Battery	Self-adaptation to BMS
Number of battery input	1
PV String Input Data
Max. PV Access Power (W)	10000	12000	16000	20000	24000	30000	40000	50000
Max DC Input Power（W）	8000	9600	12800	16000	19200	24000	32000	40000
Max DC Input Voltage（V）	1000
Start-up Voltage（V）	180
MPPT Voltage Range（V）	150-850
Rated DC Input Voltage(V)	600							700
Max Input Short-Circuit Current（A）	30+30				39+30		39+39
Max Operating PV Input Current（A）	20+20				26+20		26+26
No.of MPP Trackers/No.of String Per MPP Tracker	2/1+1				2/2+1		2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W）	5000	6000	8000	10000	12000	15000	20000	25000
Max AC Input/Output Apparent Power （VA）	5500	6600	8800	11000	13200	16500	22000	27500
Peak Power (off-grid)（W）	1.5 times the rated power,10s
Rated AC Input/Output Current（A）	7.6/7.3	9.1/8.7	12.2/11.6	15.2/14.5	18.2/17.4	22.8/21.8	30.4/29	37.9/36.3
Max AC Input/Output Current（A）	8.4/8	10/9.6	13.4/12.8	16.7/16	20/19.2	25/24	33.4/31.9	41.7/39.9
Max Continuous AC Passthrough (grid to load)（A）	40				80
Rated Input/Output Voltage/Range(V)	220/380V，230/400V 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
Rated Input/Output Grid Frequency/Range	50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Efficiency
Max Efficiency	97.6%
Euro Efficiency	97%
MPPT Efficiency	＞99%
Equipment Protection
Integrated	DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	2000m
Noise	≤ 55 dB(A)
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet size（WHD）[mm]	408638237（Excluding connectors and brackets）
Weight[kg]	30.5
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling	natural cooling		Intelligent air cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
