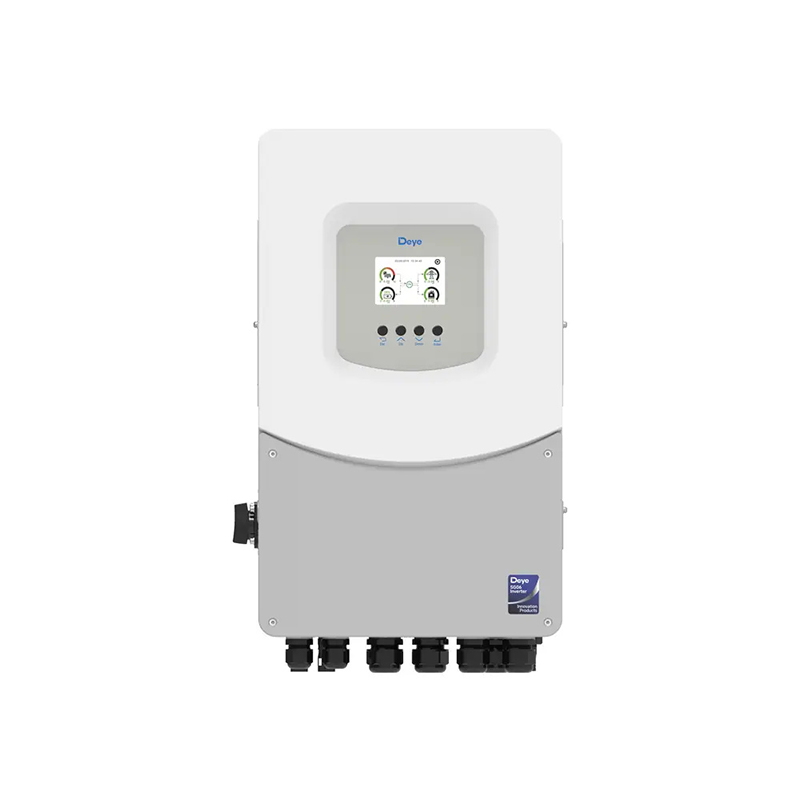

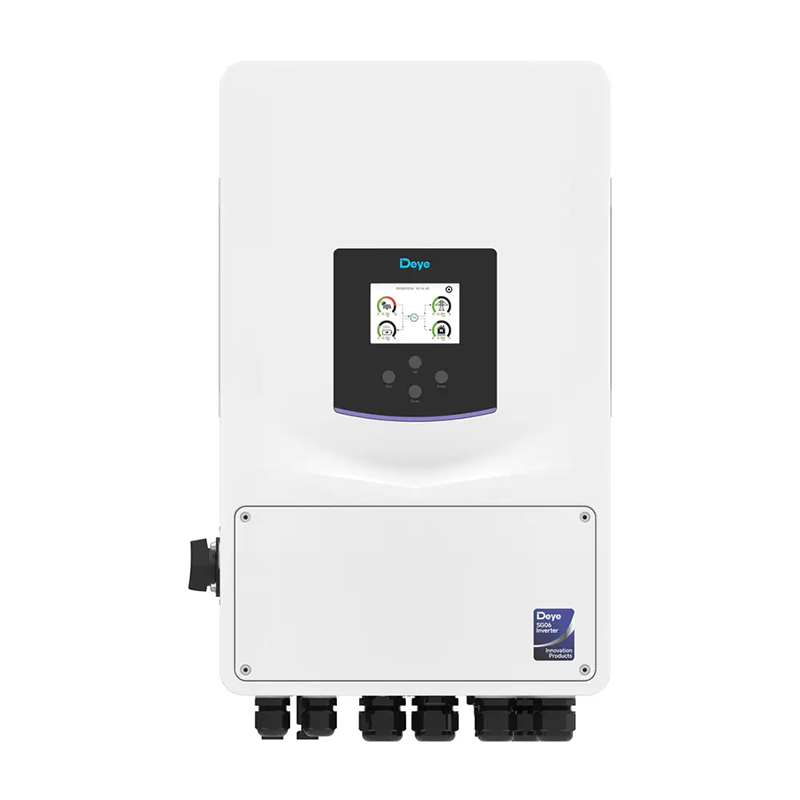

Deye SUN-4K-SG06LP3-EU-CM2 4kW Three-Phase 48V SG06 Hybrid Inverter

Name: Deye SUN-4K-SG06LP3-EU-CM2 4kW Three-Phase 48V SG06 Hybrid Inverter
Rating: 5 (99 reviews)

customizedVAT excluded

Inquiry Us Add Product

PREV: Deye SUN-3K-SG06LP3-EU-CM2 3kW Three-Phase 48V SG06 Hybrid Inverter NEXT: Deye SUN-5K-SG06LP3-EU-CM2 5kW Three-Phase 48V SG06 Hybrid Inverter

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

The Deye SUN-4K-SG06LP3-EU-CM2 is a 4 kW three-phase low-voltage hybrid inverter designed for residential three-phase systems with moderate backup loads and two PV orientations. This exact CM2 model accepts up to 8 kW of connected PV and 6.4 kW maximum PV input through two independent MPPT trackers, while the 40–60 V battery port supports up to 95 A charge/discharge current. Its 800 V PV ceiling and broad 200–650 V MPPT range give installers useful string-length freedom without moving the storage side to a high-voltage battery. For demanding three-phase homes, the standout operating feature is 100% unbalanced output, with up to 50% of rated power available on a single phase. Add 45 A AC passthrough, 2× off-grid overload for 10 seconds, IP65 protection and parallel support, and this 4 kW unit becomes a highly flexible choice for mixed household loads.

Rated AC power	4 kW
max. AC apparent power	4.4 kVA
Battery	lead-acid or Li-ion, 40–60 V; max. charge/discharge current 95 A
Max. PV access power	8 kW
max. PV input power	6.4 kW
PV input	800 V max; 160 V start; MPPT range 200–650 V; rated PV input 550 V
MPPT	2 trackers / 1+1 strings; max. operating PV current 20+20 A; short-circuit current 30+30 A
Rated AC input/output current	6.1/5.8 A
max. AC input/output current	6.7/6.4 A
Continuous AC passthrough	45 A
off-grid peak	2× rated power for 10 s
Efficiency	max. 97.6%; Euro 96.5%; MPPT >99%
Grid/output	220/380 or 230/400 V, 3L+N+PE; 100% unbalanced output, up to 50% rated power per phase; IP65; up to 10 units in parallel
