Technical Comparison of Deye Hybrid Inverter Models: SUN-8K-SG02LP1-EU-AM2 vs SUN-8K-SG05LP1-EU vs SUN-8K-SG05LP1-EU-SM2

In the evolving solar energy landscape, inverter design plays a pivotal role in overall system efficiency, safety, and usability. This article provides a detailed technical comparison of three Deye 8kW hybrid inverter models—SUN-8K-SG02LP1-EU-AM2, SUN-8K-SG05LP1-EU, and SUN-8K-SG05LP1-EU-SM2—to assist system designers and installers in choosing the most suitable option.

If you need to purchase related products, explore our inverter catalog or contact us directly for more model options.

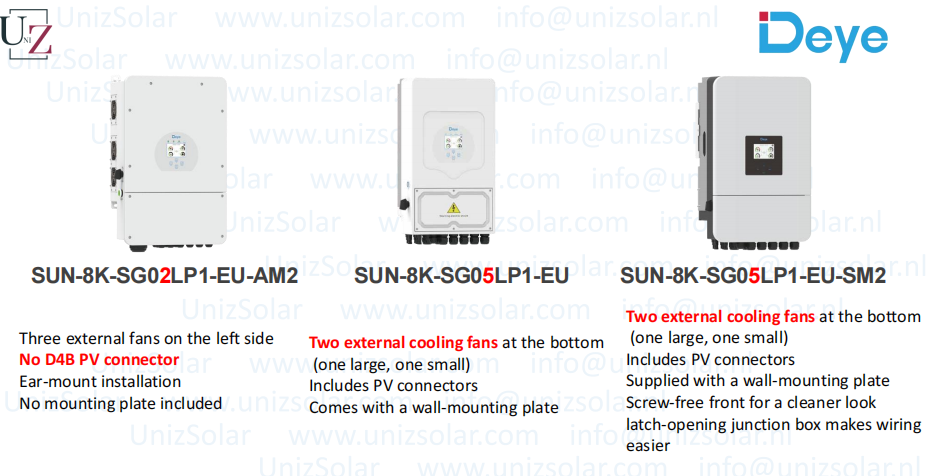

1. Cooling and Appearance
SUN-8K-SG02LP1-EU-AM2 features three external cooling fans on the left side. It supports ear-mount installation and excludes a back mounting plate. Notably, it does not include D4B PV connectors.

SUN-8K-SG05LP1-EU uses two bottom-mounted cooling fans (1 large + 1 small) and includes PV connectors. It is supplied with a wall-mounting plate.

SUN-8K-SG05LP1-EU-SM2 also adopts the dual bottom-fan setup. It improves aesthetics and installation convenience with a screw-free, latch-opening front cover and included wall-mounting plate.

2. Electrical Input and PV Configuration
All three models share the same maximum PV input current of 26 + 26 A, and support 2 / 2 + 2 PV string inputs, ensuring flexibility in solar array configuration.

3. Inside Structure and Circuit Design
SUN-8K-SG02LP1-EU-AM2 stands out with two ICT ports, PV quick-connect terminals, and two rapid-shutdown interfaces. It includes one 12 Vdc auxiliary power supply and provides improved isolation and driver boards over the SG05 platform. However, it reuses the Wi-Fi board.

SUN-8K-SG05LP1-EU includes one ICT port and uses D4B (MC4-type) connectors. It lacks rapid-shutdown ports and does not feature a 12 V auxiliary output.

SUN-8K-SG05LP1-EU-SM2 builds on the SG05LP1-EU, retaining one ICT port, D4B connectors, and two rapid-shutdown ports. It includes a 12 Vdc auxiliary output and introduces a DIP-switch control on the ATS port for more configuration flexibility.

4. PCB and Board Architecture
SUN-8K-SG02LP1-EU-AM2 offers additional isolation and driver boards compared to SG05. The Wi-Fi module is reused, not newly integrated.

SUN-8K-SG05LP1-EU uses a baseline SG05 PCB stack without additional enhancements.

SUN-8K-SG05LP1-EU-SM2 shares the core architecture with SG05 but incorporates new main control, LCD, and extra auxiliary boards, with DRM board support as standard.

5. Size and Weight
SG02LP1-EU-AM2 is the largest and heaviest at 420 × 670 × 233 mm and 35.6 kg.

SG05LP1-EU is more compact at 330 × 580 × 232 mm, weighing 24.9 kg.

SG05LP1-EU-SM2 falls between the two at 366 × 589.5 × 237 mm, weighing 26.8 kg.

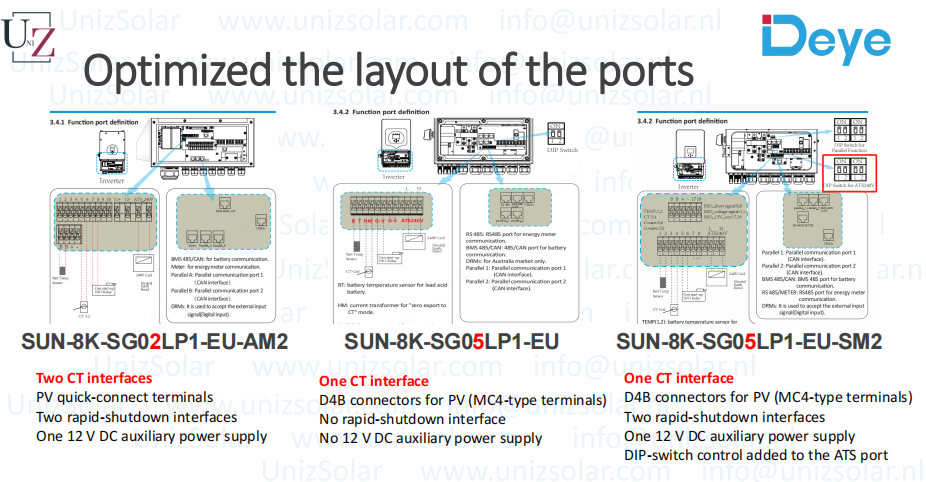

6. Port Layout and Interface Design

The three models show significant variance in port layout and CT interface support:

SG02LP1-EU-AM2 has two CT interfaces, PV quick-connect terminals, and two rapid-shutdown ports with 12 V auxiliary output.

SG05LP1-EU supports one CT interface, D4B connectors, and lacks both rapid-shutdown and auxiliary power.

SG05LP1-EU-SM2 improves on this with one CT interface, D4B connectors, two rapid-shutdown ports, a 12 V auxiliary supply, and DIP-switch integration on the ATS port.

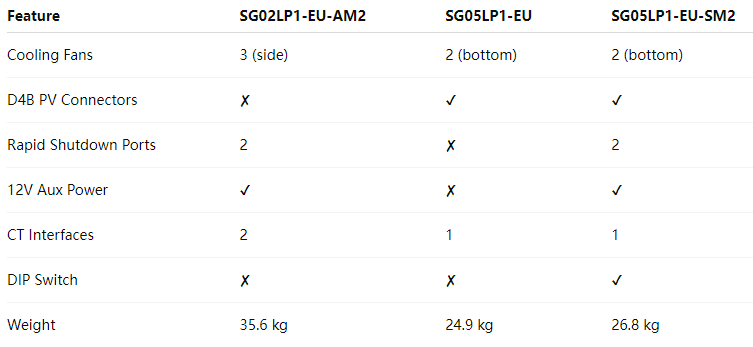

Conclusion

Recommendation:

SG02LP1-EU-AM2 is ideal for advanced isolation, dual CT metering, and systems requiring 12V aux output and enhanced port control.

SG05LP1-EU is a lighter, more basic option suitable for installations with fewer auxiliary needs.

SG05LP1-EU-SM2 strikes a balance with improved features, enhanced control, and better aesthetics—making it the most refined model for general applications.
