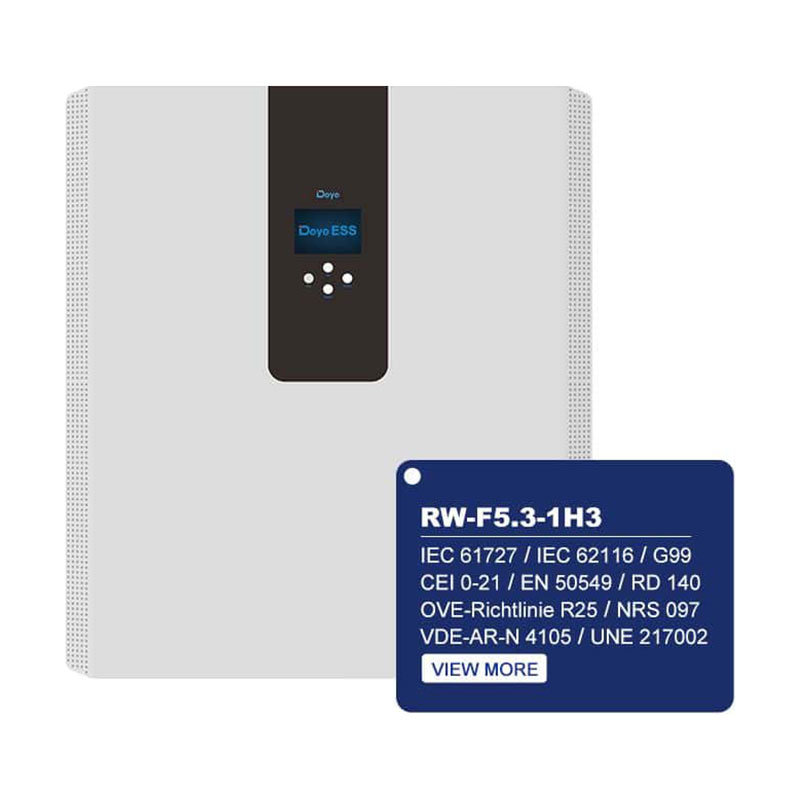

Deye RW-F5.3-1H3 ALL-IN-ONE ESS LV 1PH

1157~1389 €/pcVAT excluded

Inquiry Us Add Product

PREV: Deye RW-F5.3-2H3 ALL-IN-ONE ESS LV 1PH NEXT: Deye AI-W5.1-3P1-EU-B ALL-IN-ONE HYBRID LV SOLAR INVERTER 1PH

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

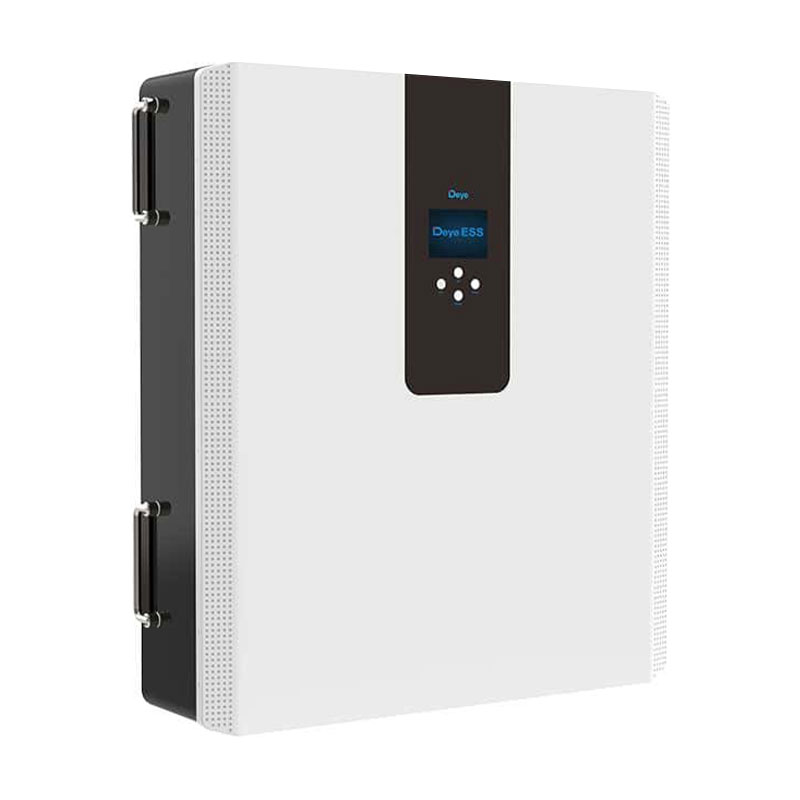

The RW-F5.3-1H3 All-in-One Energy Storage System is a revolutionary solution designed to meet the growing demand for efficient, reliable, and user-friendly energy storage solutions. Its flat, wall-mounted design not only saves installation space but also ensures a quick and easy installation. The system supports seamless control via an app, PC, or touch display, providing a comfortable and intuitive user experience.

Model	RW-F5.3-1H3
AC Technical Specification
Rated AC input / Output Active Power (W)	5000 / 5000
Max AC Input / Output Apparent Power (VA)	5500
Peak Power (off grtd)	2 times of rated power, 10s
AC Output Rated Current (A)	22.8/2L8
Max. AC Current (A)	25/24
Max Continuous AC Passthrough (grid to load )(A)	35
Rated Input / Output Voltage / Range (V)	220V/230, 0.85Un-1.1Un
Rated input / Output Grtd Frequency/Range (H2)	50Hz / 45Hz • 55Hz,60Hz / 55Hz • 65Hz
Grtd Connection Form	L+N+PE
Power Factor	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THDi)	<3% (of nominal power)
DC injection current (mA)	<0.5% ln
DC Technical Specification
Max. PV Access Power (W)	10000
Max. PV input Power(W)	8000
Max. PV input Voltage (Vdc)	500
Start Up PV Voltage (Vdc)	125
MPPT Voltage Range (Vdc)	150 - 425
Full Load MPPT voltage Range (VDC)	300-425
Rated PV Input Voltage (VDC)	370
Max. Operating PV Input Current (A)	18+18
Max. PV input Short-circuit Current (A)	27+27
Number of MPP Trackers	2
No. of Strings Per MPP Tracker	1+1
Battery Chemistry	LiFePO₄
Battery Nominal Voltage (V)	51.2
Battery Energy Configuration (kwh)	5.32
Max. Charging / Discharging Current (A)	100
Battery Operating voltage (V)	44.8～57.6
Battery Cycle Life	>6000(@25°C土2°C,0.5C /0.5C,70%EOL)
Other Technical Specification
Dimension (W x D x H,mm)	616 x 191 x 690 (Excluding connectors and brackets)
weight Appr. (kg)	71
IP Rating of Enclosure	IP65
Operating Temperature Range (X)	-10°C~55C
Permissible Ambient Humidity	0-100%
inverter Topology	Non isolated
Over Voltage Category	OVC II(DC), OVC I(AC)
Type Of Cooling	Natural Cooling
Nolse(dB)	<30
Display	Touch LCD
Monitor Mode	WIFI, Bluetooth
installation style	Wall Mounted, Floor Mounted
Max. Efficiency	97%
Max. charging/discharging EfRcieocy	95.5%
MPPT Efficiency	>99%
Safely EMC/Standard	IEC / EN 6100061 /2/3/4, IEC/EN 62109^1, IEC/EN 62109-2
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21. EN 50549. NRS 097, RD140. UNE 217002, OVE-RIchtlinie R25,G99,VDE-AR-N4105
Certification	UN38.3，IEC62619
Warranty	5/10 years (the Warranty Period depends the Final Installation Site. More Info Please Refer to Warranty Policy)
