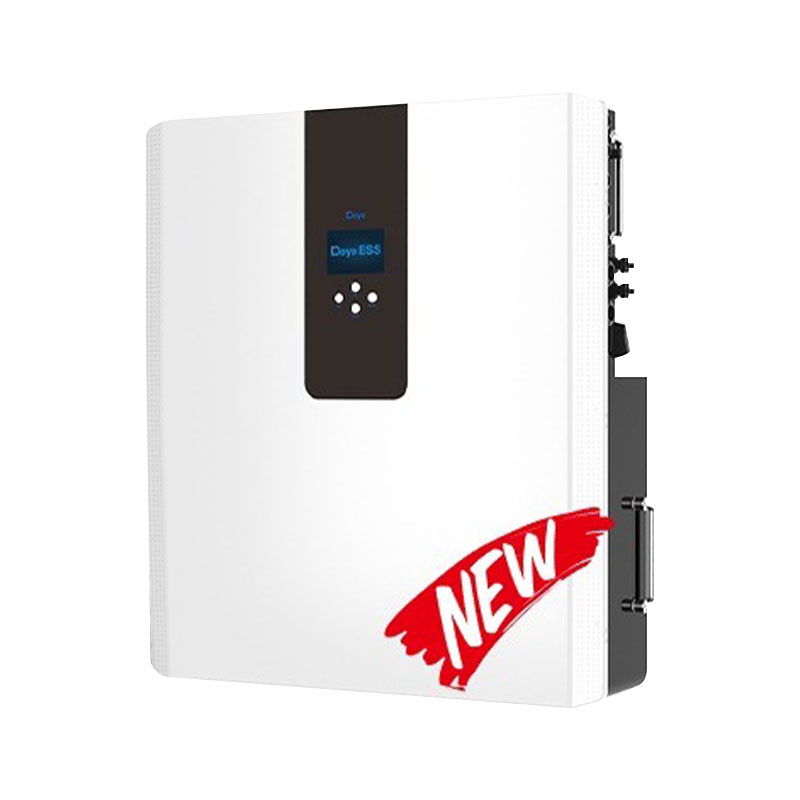

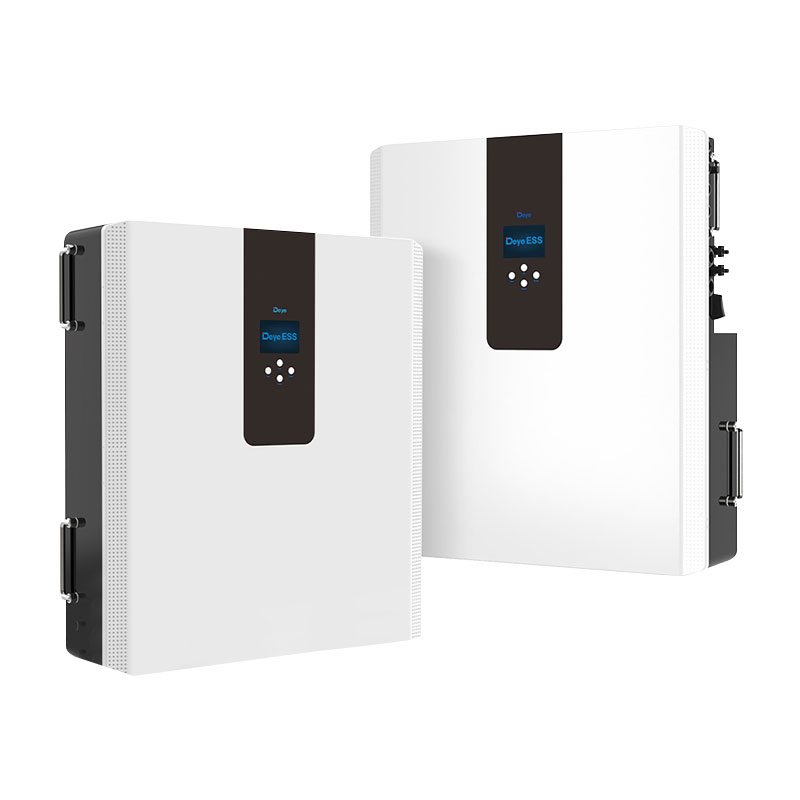

Deye ESS RW-F5.3-2H3 Low Voltage Storage Battery
All-in-One Energy Storage System With Integrated 3kW Hybrid Inverter And 5.3kWh Battery. • LFP Battery For Safer Operation And Longer Lifespan. • Intelligent BMS Provides Complete Protection. • IP65 Enclosure. • Modular Design, Expandable Up To 32 Units. • Remote Monitoring And Upgrade.

Model	RW-F5.3-2H3
Nominal Input/Output Power/UPS Power	3,600/3,600W
AC Input/Output Frequency and Voltage	50Hz (45Hz ~ 55Hz), UN (PE), 220/230 Vac
Grid Type	Single phase
Max. PV Input Current	4680W
Rated PV Input Voltage	370 (125 〜500) Vdc
Start Up DC Voltage	125Vdc
Battery Chemistry	LiFeP04
IP Rating of Enclosure	IP65
Battery Cycle Life	>6,000 (@25°C±2°C, 0.5C/1C, 70%EOL)
Dimension (W x D x H)	616 x 191 x 690mm (Excluding connectors and brackets)
Weight Appr.	71kg
Installation Style	Wall-Mounted
Noise	<30 dB
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
