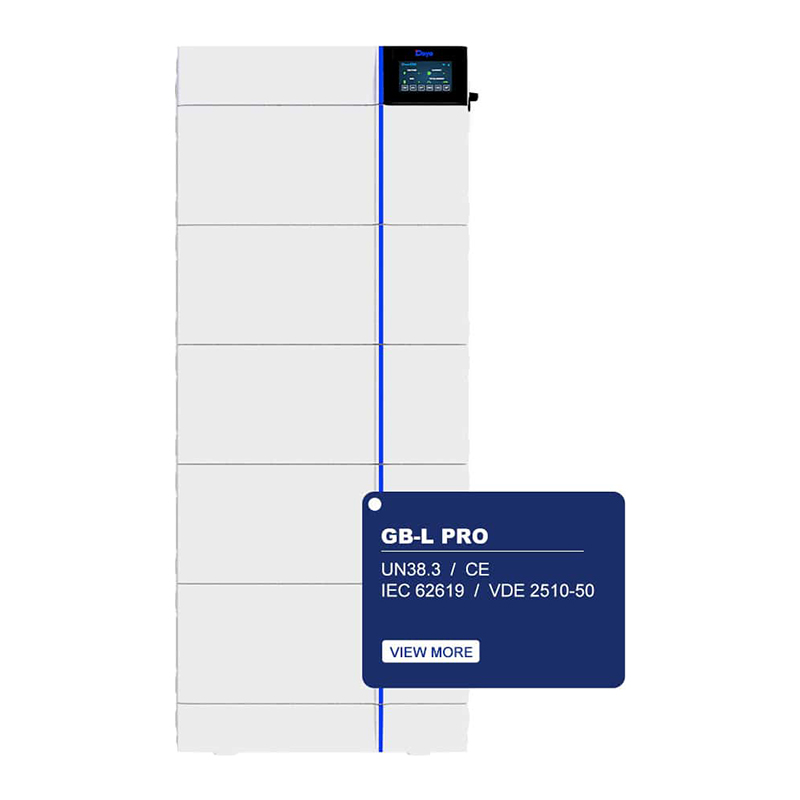

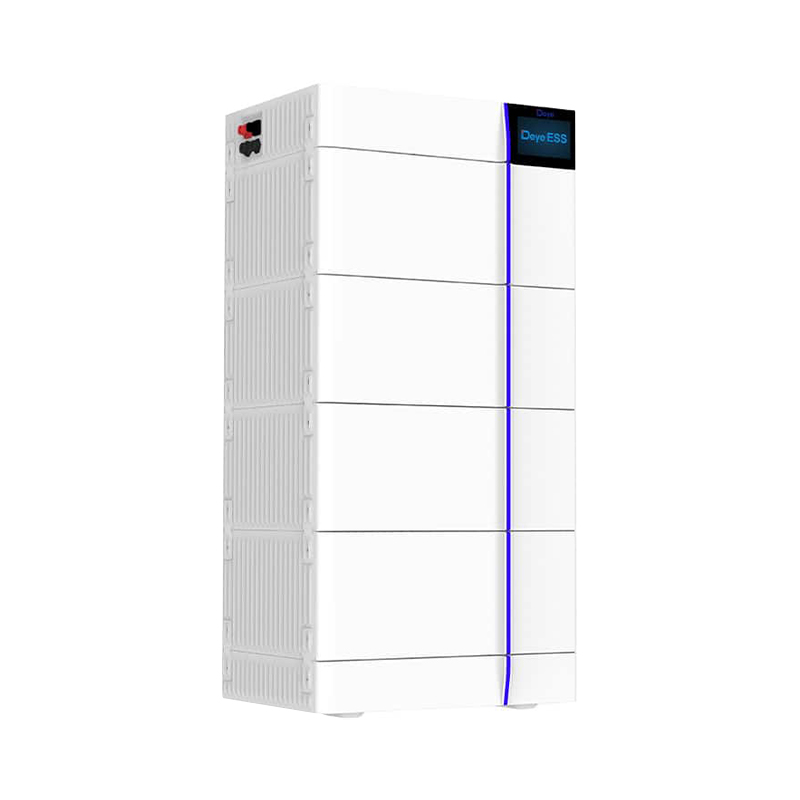

Deye GB-L Pro 4kWh High Voltage Battery Module

Name: Deye GB-L Pro 4kWh High Voltage Battery Module
Rating: 5 (99 reviews)

650~700 €/pcVAT excluded

Inquiry Us Add Product

PREV: Deye BOS-B Pro-A3 High Voltage Battery NEXT: Deye GB-L Pro 8kWh High Voltage Battery energy storage Solution

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

The GB-L Pro 4kWh module is the building block of Deye’s high-voltage residential storage platform. By connecting modules in series, installers can create a clean, space-saving HV battery stack that improves system efficiency and reduces cable current compared with low-voltage solutions. Built on long-life LiFePO₄ chemistry and protected by a rugged IP65 enclosure, the module is suitable for both indoor utility rooms and sheltered outdoor installations.
This modular approach makes planning easy: start with the capacity you need today, then expand by adding modules as household demand grows (new appliances, heat pump, EV charger, etc.). The GB-L Pro platform supports wide-temperature operation and is designed for modern monitoring and lifecycle management, helping homeowners maximize solar self-consumption, manage time-of-use tariffs, and keep critical loads backed up during outages.

Battery chemistry	LiFePO₄ (LFP)
Module capacity	40 Ah
Module nominal voltage	102.4 V
Module energy	4.0 kWh
System operating voltage (by configuration)	166.4–700 V
Available models (system configurations)	GB-L8 PRO / GB-L12 PRO / GB-L16 PRO / GB-L20 PRO / GB-L24 PRO
Usable energy range (system)	7.2–21.6 kWh
Recommended charge/discharge current	20 A (peak 50 A)
IP rating	IP65
Operating temperature	-20°C to 55°C
Dimensions (W×D×H)	540×385×650 mm (min stack) to 540×385×1530 mm (max stack)
Weight	97–253 kg (depends on stack size)
