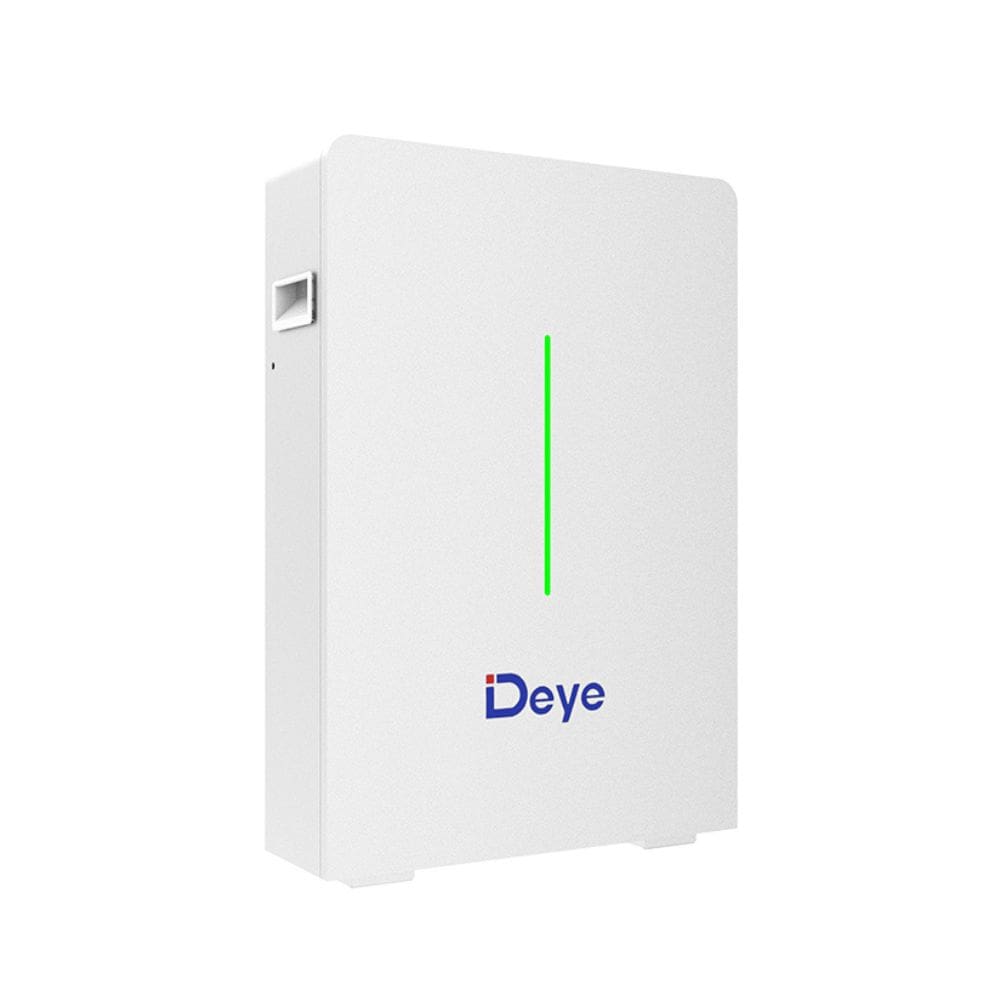

Dey RW-G10.6 LiFePO4 battery 51.2V, 208AH, 10.64KWH, IP20, 1.5m Pcable+0.6m Bcable

1098~1318 €/pcsVAT excluded

Inquiry Us Add Product

PREV: Deye RW-F10.2 LiFePO4 battery 51.2V, 200AH, 10.24KWH, IP65, 1.5m Pcable+0.6m Bcable NEXT: No next product

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

The Deye RW-G10.6 is a cutting-edge battery storage solution designed for residential applications, combining flexibility, reliability, and efficiency in energy management. This model is specifically engineered to meet demanding energy requirements while ensuring user safety and convenience.

Battery Type: Safe and durable LiFePO4 technology. • Energy Capacity: 10.64 kWh nominal, 9.58 kWh usable.

• Scalability: Connect up to 32 units for a total of 340 kWh.

• Performance: Charge at 200 A, discharge at 240 A.

• Temperature Range: Operates from -20℃ to 55℃ (discharge) and 0℃ to 55℃ (charge).

• Safety Features: Built-in circuit breaker and intelligent BMS.

• Size: Compact dimensions of 600 × 750 × 200 mm.

• Longevity: ≥6000 cycles with a 5-year warranty.

Model		RWG10.6	RW-F10.6
Main Parameter
Battery Chemistry		LiFePO₄
Built-in Circuit Breaker		125A 1P, 60Vdc	125A 2P, 60Vdc
Capacity (Ah)		208
Scalability		Max.. 32 pcs pack (Max.340kWh) in parallel
Nominal Voltage (V)		51.2
Operating Voltage (V)		44.8~57.6
Nominal Energy ( kWh)		10.64
Usable Energy ( kWh)[1]		9.58
Charge / Discharge Current (A )	Max. Continuous	100/100	Charge: 200 / Discharge: 240
	peak	200/200 (10 sec)	300(2mins)
Other Parameter
Recommend Depth of Discharge		90%
Dimension (WXHXD, mm)		600 x 750 x 200 (Without hanging board)
Weight Approximate ( kg)		96kg	99kg
Master LED Indicator		LED (SOC: 20% 〜SOC100% and working state)
IP Rating of Enclosure		IP20
Operating Temperature		Charge: 0 - 55°C / Discharge: -20°C - 55°C
Recommend Operating Temperature		15°C-35.C
Storage Temperature		0#C-35*C
Relative Humidity		95% non-condensing
Altitude		< 2000m
Cycle Life		≥6000 ( 25°C±2°C，0.5C / 0.5C, 90%DOD, 70%EOL)
Installation		Wall-Mounted, Floor-Mounted
Communication Port		CAN2.0, RS485
Warranty Period		5 years
Energy Throughput		16MWh ( 25°C, 0.5C / 0.5C, 70%EOL)
Certification		UN38.3,MSDS
