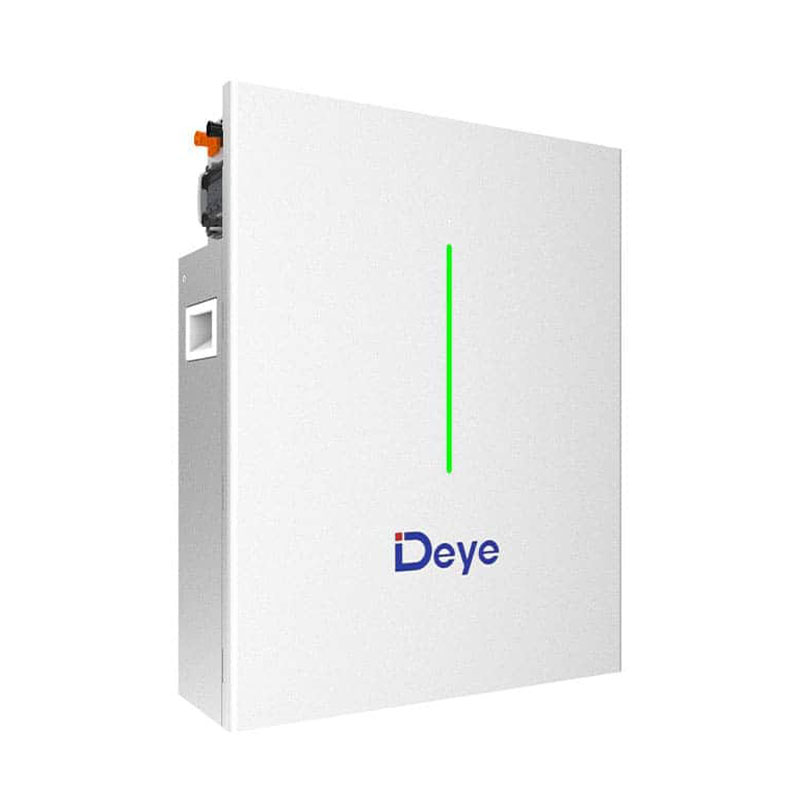

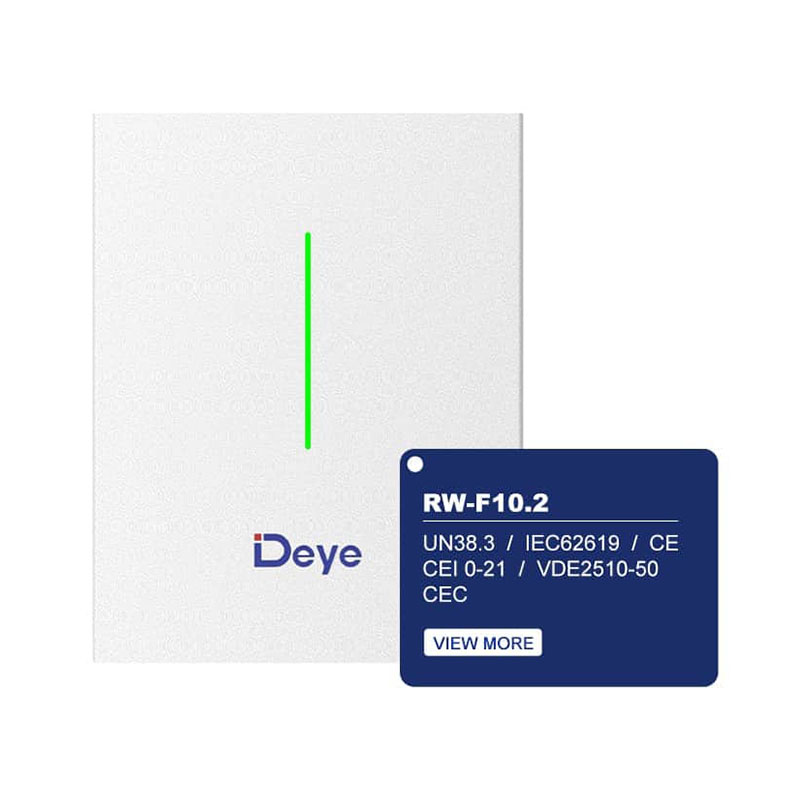

The RW-F10.2 Lithium Iron Phosphate (LFP) Battery is a safer, high-performance, and eco-friendly energy storage solution for your residential or commercial needs. This state-of-the-art battery is designed to maximize your energy independence and support your transition to clean, renewable power.
Key Features and Benefits: 1. Enhanced Safety: Our cobalt-free LFP chemistry ensures a safer battery with a long lifespan and high energy density. The low voltage safety connection further enhances the overall safety of the system. 2. Exceptional Performance: With support for maximum 1C charge and 1.2C discharge rates, this battery delivers outstanding performance. It boasts an impressive 6000 cycles at 90% DOD and comes with a 10-year standard warranty. 3. Built-in Protection: The integrated intelligent Battery Management System (BMS) provides comprehensive protection for your battery. The natural cooling design, IP65 rating, and a wide operating temperature range of -20°C to 55°C ensure reliable operation in various conditions. 4. Modular and Expandable: The modular design allows for easy expansion, with a maximum of 32 units in parallel, providing up to 326 kWh of capacity. This flexibility makes it perfect for both residential and commercial applications, enabling you to increase your self-consumption ratio. 5. User-Friendly: The battery modules feature auto-networking, eliminating the need for DIP switch coding. Easy maintenance, remote monitoring, and upgrades are supported through the Deye platform. The battery also seamlessly integrates with Deye inverters to form an all-in-one stacked system. 6. Environmentally Friendly: We use environmentally friendly materials to ensure the entire module is non-toxic and pollution-free, promoting a greener future. 7. Versatile Installation: The flat design allows for both wall-mounted (with a wall bracket) and floor-standing (with a removable base) installations, saving valuable space. Technical Specifications: • Battery Chemistry: LiFePO4 • Built-in Circuit Breaker: 125A 4P, 60Vdc • Nominal Capacity: 200Ah • Nominal Voltage: 51.2V • Operating Voltage: 43.2V ~ 57.6V • Nominal Energy: 10.2 kWh • Usable Energy: 9.2 kWh (90% DOD) Invest in the Deye RW-F10.2 LFP Battery and take control of your energy future. With its superior safety, performance, and flexibility, this battery is the ideal choice for powering your home or business while reducing your carbon footprint. Experience the difference of Deye’s cutting-edge energy storage technology today.
Model | RW-F10.2 | |
Main Parameter | ||
Battery Chemistry | LiFePO4 | |
Built-in Circuit Breaker | 125A 4P, 60Vdc | |
Nominal Capacity (Ah) | 200 | |
Nominal Voltage (V) | 51.2 | |
Operating Voltage(V) | 43.2〜57.6 | |
Nominal Energy (kWh) | 10.2 | |
Usable Energy (kWh) | 9.2 (90% DOD) | |
Scalability | Max. 32 pcs pack (Max.326kWh) in parallel | |
Rated DC Power(kW) | 6 | |
Max DC Power(kW) | 12 | |
Charge/Discharge Current (A)[1] | Recommend | Charge: 100 / Discharge: 100 |
Max. | Charge: 198 / Discharge: 240 | |
Peak | Discharge: 300 (2mins,25°C) | |
Other Parameter | ||
Recommend Depth of Discharge | 90% | |
Dimension (W/H/D, mm) | 600*760*200(Without hanging board) | |
Weight Approximate(kg) | 104 | |
Master LED Indicator | SOC state(20% 〜100%), work state( alarming, protecting) | |
IP Rating of Enclosure | IP65 | |
Operating Temperature | Charge: 1 〜55°C / Discharge: -20°C〜55°C | |
Storage Temperature | 0°C〜35°C | |
Humidity | 5%〜95% | |
Altitude | <3000m | |
Cycle Life | >6000(25°C±2°C,0.5C/0.5C,90%DOD,70%EOL) | |
Installation | Wall-Mounted, Floor-Mounted | |
Communication Port | CAN2.0, RS485 | |
Warranty Period[2] | 10 years | |
Energy Throughput | 32MWh(250C, 0.5C/0.5C, 70%EOL) | |
Certification [3] | UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50, CEC |
[1] The current is affected by temperature and SOC.
[2] Conditions apply, refer to Deye Warranty Letter.
[3] Made in China
Uni Z International B.V. is committed to providing you with a full range of solar energy storage products and solutions. We guide the industry and provide you with products at more favorable prices, more timely logistics and delivery, and more secure after-sales and technical support. Deye RW-F10.2 LiFePO4 battery 51.2V, 200AH, 10.24KWH, IP65, 1.5m Pcable+0.6m Bcable Suppliers and Company in China. We bring you one-stop solutions for smarter, more efficient and more reliable photovoltaic energy storage products. Wholesale Deye RW-F10.2 LiFePO4 battery 51.2V, 200AH, 10.24KWH, IP65, 1.5m Pcable+0.6m Bcable.
We not only provide high-end solar energy storage products and technologies, but also provide you as an installer with comprehensive training and technical support. We believe that only if you have the latest knowledge and skills can our end customers enjoy the advantages of more advanced solar technology.
At Uni Z International B.V., we not only provide products, but also seek to establish a long-term and close partnership with you. We look forward to working with you to meet the challenges and opportunities of the future of solar energy.Start your solar energy journey, choose Uniz Solar and move towards a cleaner, more sustainable future!
