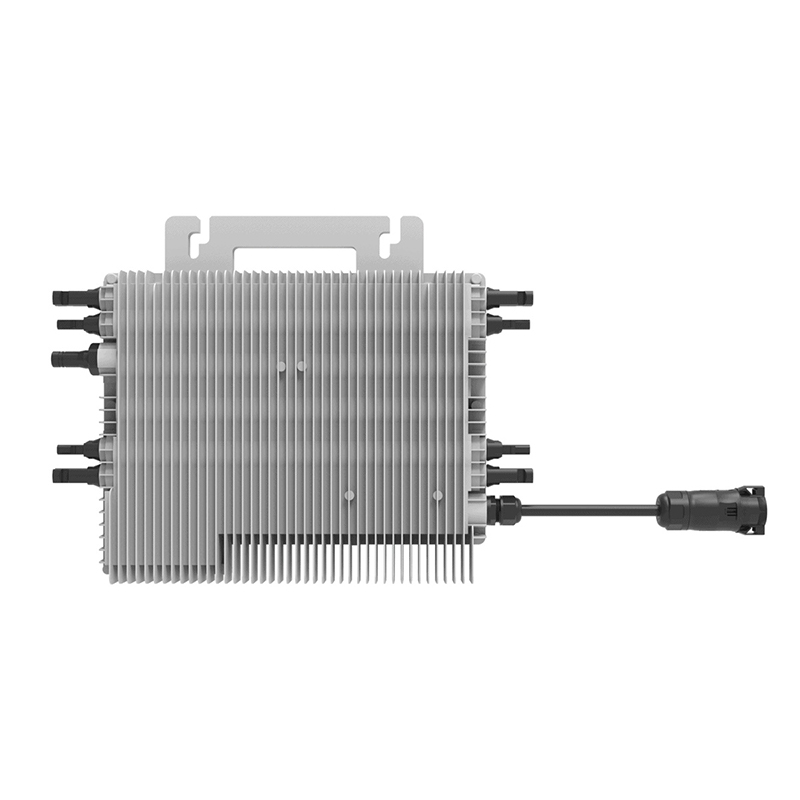

Deye SUN-M160G4-EU-Q0 1.6kW G4 Four-MPPT WiFi Microinverter

Name: Deye SUN-M160G4-EU-Q0 1.6kW G4 Four-MPPT WiFi Microinverter
Rating: 5 (99 reviews)

customizedVAT excluded

Inquiry Us Add Product

PREV: Deye SUN-M130G4-EU-Q0 1.3kW G4 Four-MPPT WiFi Microinverter NEXT: Deye SUN-M180G4-EU-Q0 1.8kW G4 Four-MPPT WiFi Microinverter

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

The Deye SUN-M160G4-EU-Q0 is a four-input G4 microinverter rated at 1.6 kW AC, designed for four-panel roof sections that benefit from 1.6 kW AC and panel-by-panel tracking. Every module has its own MPPT tracker, which is especially valuable on complex roofs where orientation, soiling or shade is not identical across all four panels. For this exact model, Deye publishes a 210–560 W module-power range, 25–55 V MPPT window and 60 V maximum PV voltage. The isolated IP67 enclosure, built-in Wi‑Fi, natural cooling and ≤25 dB noise level make the unit suitable for exposed residential installations without adding fans or separate monitoring hardware. With 4 unit(s) permitted per branch under the datasheet configuration and four module-level MPPT channels in one enclosure, the SUN-M160G4-EU-Q0 is an efficient way to reduce roof-side device count while retaining panel-level energy control.

Rated / max. AC output	1600 W / 1600 VA
PV connection	4 modules; recommended module power range 210–560 W
PV input	60 V max; 20 V start; MPPT range 25–55 V; rated PV input 42.5 V
MPPT	4 independent trackers / 1 string each; max. operating current 15+15+15+15 A; short-circuit current 22.5+22.5+22.5+22.5 A
Rated AC output current at 220/230 V	7.3/7.0 A;
max. units per branch	4
Efficiency	max. 96.5%; Euro 96.0%; MPPT >99%
Communication	Wi‑Fi; IP67; isolated topology; noise ≤25 dB
Operating temperature	-40°C to +65°C; dimensions 311×250.5×36.5 mm; weight 5.1 kg; natural cooling; warranty 10 years
