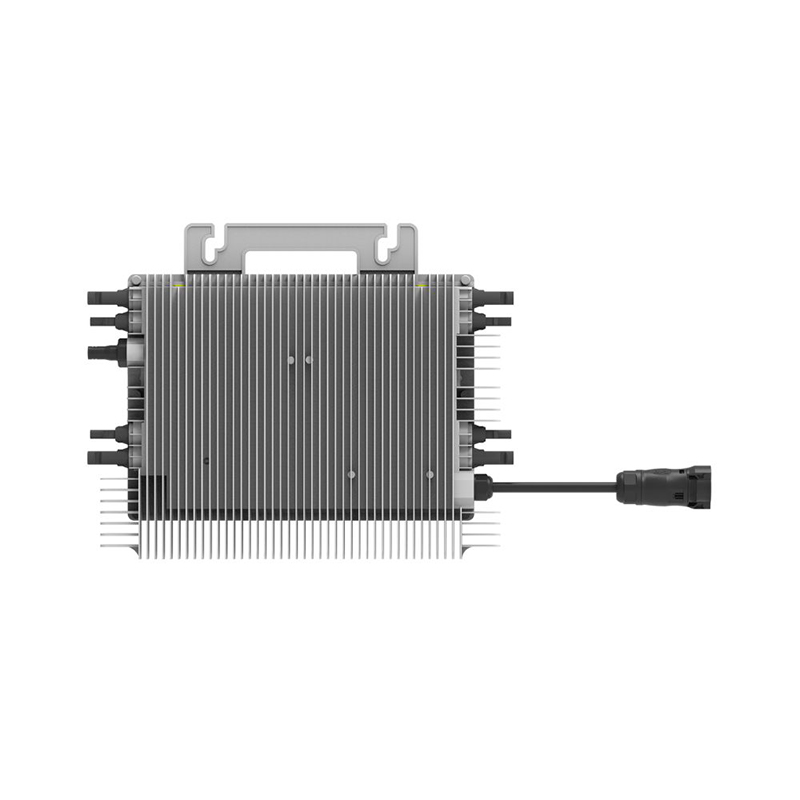

Deye SUN-M225G4-EU-Q0 2.25 kW G4 Four-MPPT High-Current WiFi Microinverter

Name: Deye SUN-M225G4-EU-Q0 2.25 kW G4 Four-MPPT High-Current WiFi Microinverter
Rating: 5 (99 reviews)

customizedVAT excluded

Inquiry Us Add Product

PREV: Deye SUN-M220G4-EU-Q0 2.2 kW G4 Four-MPPT High-Current WiFi Microinverter NEXT: No next product

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

The Deye SUN-M225G4-EU-Q0 is a 2.25 kW four-MPPT G4 microinverter for high-power four-module arrays. Compared with the lower-output four-channel G4 models, this updated datasheet raises the input-current capability to 18 A per MPPT with 27 A short-circuit current per channel, better matching today's high-current modules while preserving independent tracking for every panel. The published module-power range is 210–790 W, with a 25–55 V MPPT window and 60 V maximum PV voltage. On the AC side the unit delivers 2250 W, and up to 3 units are specified per branch. An IP67 isolated enclosure, Wi‑Fi monitoring, natural cooling and a 10-year warranty support long-term rooftop deployment. For installers trying to maximize AC output from four premium modules without surrendering module-level MPPT, this exact SUN-M225G4-EU-Q0 is the top-output end of Deye's current G4 microinverter line.

Rated / max. AC output	2250 W / 2250 VA
PV connection	4 modules; recommended module power range 210–790 W
PV input	60 V max; 20 V start; MPPT range 25–55 V; rated PV input 42.5 V
MPPT	4 independent trackers / 1 string each; max. operating current 18+18+18+18 A; short-circuit current 27+27+27+27 A
Rated/max. AC output current at 220/230 V	10.3/9.8 A;
max. units per branch	3
Efficiency	max. 96.5%; Euro 96.0%; MPPT >99%
Communication	Wi‑Fi; IP67; isolated topology; noise ≤25 dB
Operating temperature	-40°C to +65°C, >45°C derating; dimensions 358×255.5×36.5 mm; weight 5.2 kg; natural cooling; warranty 10 years
