Longi Hi-MO7 LR8-48HGD-440M

47~49 €/pcVAT excluded

Inquiry Us Add Product

PREV: TWMNH-48HC-435W(30F) NEXT: Longi Hi-MO7 LR8-48HGD-445M

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

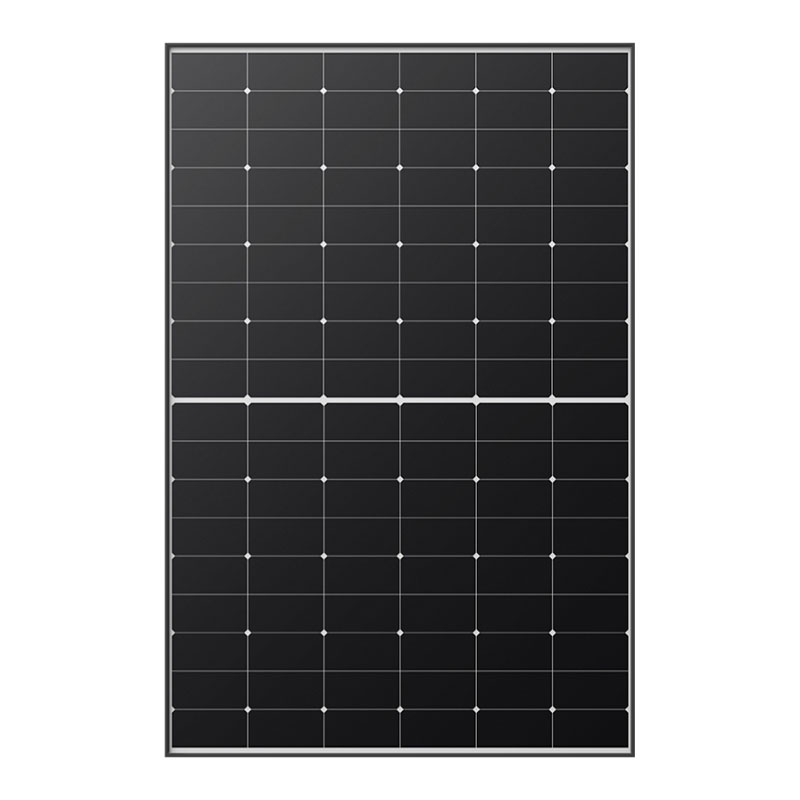

LONGi Hi-MO7m 430~455 Wp Glass-Glass Solar Panel, Bifacial, white Mesh LR8-48HGD
LONGi Solar is one of the leading manufacturers of high-efficiency solar cells and modules with over 20 years of experience in monocrystalline solar cell technology. With the LONGi Hi-MO7m, based on HPDC cell technology, the company offers a high-quality and high-performance module for all applications. The double-sided contacting of the HPDC cells achieves improved current collection, which increases the overall performance of the module. Due to its design, with a height of 1762 mm and a width of 1134 mm, it is ideal for residential and commercial use. To ensure the best possible support, LONGi Solar also has offices worldwide, including in Germany.

Features:
High efficiency of up to 22%
Reliable yield security thanks to low power degradation and a long manufacturer's warranty

Mechanical Parameters

Cell Orientation	96 (6×16)
Junction Box	IP68, three diodes
Output Cable	4mm2, +400, -200mm/±1400mm length can be customized
Glass	Dual glass, 2.0+1.6mm semi-tempered glass
Frame	Anodized aluminum alloy frame
Weight	23.0kg
Dimension	1762×1134×30mm
Packaging	36pcs per pallet / 216pcs per 20’GP / 864pcs per 40’HC

Electrical Characteristics STC : AM1.5 1000W/m 2 25℃ NOCT : AM1.5 800W/m 2 20℃ 1m/s Test uncertainty for Pmax: ± 3%

Module Type	LR8-48HGD-430M		LR8-48HGD-435M		LR8-48HGD-440M		LR8-48HGD-445M		LR8-48HGD-450M		LR8-48HGD-455M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	430	327.3	435	331.1	440	334.9	445	338.8	450	342.6	455	346.4
Open Circuit Voltage (Voc/V)	34.56	32.84	34.7	32.98	34.84	33.11	34.98	32.24	35.12	33.38	35.26	33.51
Short Circuit Current (Isc/A)	15.81	12.7	15.91	12.78	16.01	12.86	16.11	12.94	16.21	13.02	16.3	13.09
Voltage at Maximum Power (Vmp/V)	28.47	27.06	28.61	27.19	28.75	27.32	28.89	27.46	29.03	27.59	29.17	27.72
Current at Maximum Power (Imp/A)	15.11	12.1	15.21	12.18	15.31	12.26	15.41	12.34	15.51	12.42	15.6	12.5
Module Efficiency(%)	21.5		21.8		22		22.3		22.5		22.8

Operating Parameters

Operational Temperature	-40℃ ~ +85℃
Power Output Tolerance	0 ~ 3%
Maximum System Voltage	DC1500V (IEC/UL)
Maximum Series Fuse Rating	35A
Nominal Operating Cell Temperature	45±2℃
Protection Class	Class Ⅱ
Bifacial Rate	80±5%
Fire Rating	UL Type 38 IEC Class C

Mechanical Loading

Front Side Maximum Static Loading	5400Pa
Rear Side Maximum Static Loading	2400Pa
Hailstone Test	25mm Hailstone at the speed of 23m/s

Temperature Ratings (STC)

Temperature Coefficient of Isc	+0.045%/℃
Temperature Coefficient of Voc	-0.230%/℃
Temperature Coefficient of Pmax	-0.280%/℃
