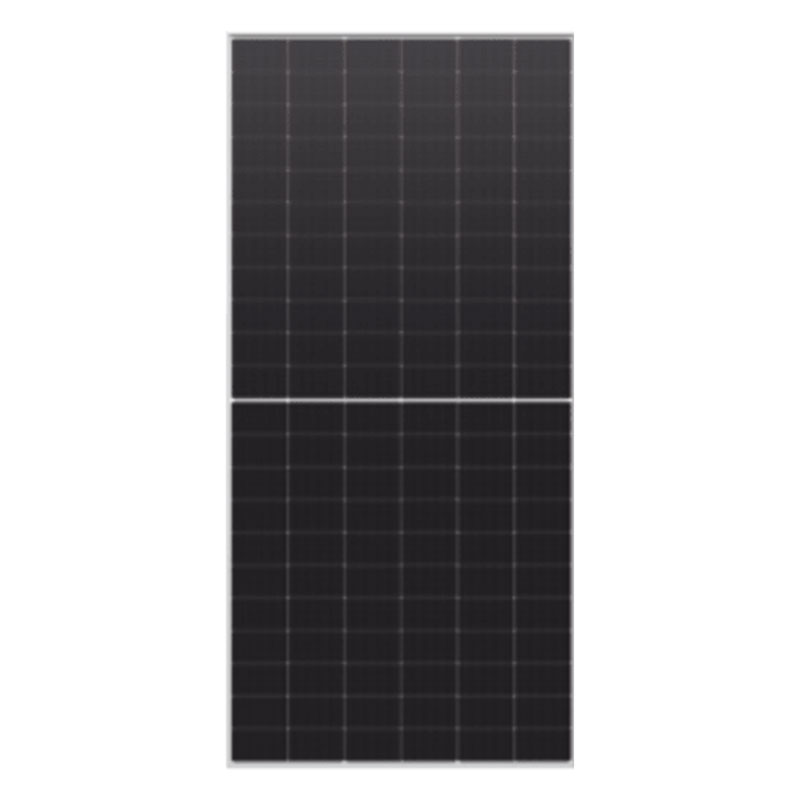

Longi Hi-MO7 LR8-66HGD-610M

58~61 €/pcVAT excluded

Mechanical Parameters

Cell Orientation	132 (6×22)
Junction Box	IP68, three diodes
Output Cable	4mm 2 , +400, -200mm/±1400mm Length can be customized
Glass	Dual glass, 2.0+2.0mm heat-strengthened glass
Frame	Anodized aluminum alloy frame
Weight	33.5kg
Dimension	2382×1134×30mm
Packaging	36pcs per pallet / 144pcs per 20’GP / 720pcs or 576pcs (only for USA) per 40’HC

Electrical Characteristics STC: AM1.5 1000W/m² 25℃ NOCT: AM1.5 800W/m² 20℃ 1.0 m/s Test uncertainty for Pmax: ± 3%

Module Type	LR8-66HGD-595M		LR8-66HGD-600M		LR8-66HGD-605M		LR8-66HGD-610M		LR8-66HGD-615M		LR8-66HGD-620M		LR8-66HGD-625M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	595	452.9	600	456.7	605	460.5	610	464.3	615	468.1	620	471.9	625	475.8
Open Circuit Voltage (Voc/V)	47.78	45.41	47.98	45.6	48.18	45.79	48.38	45.98	48.58	46.17	48.78	46.36	48.98	46.55
Short Circuit Current (Isc/A)	15.8	12.69	15.85	12.73	15.9	12.77	15.95	12.81	16	12.85	16.05	12.89	16.1	12.93
Voltage at Maximum Power (Vmp/V)	39.91	37.93	40.11	38.12	40.31	38.31	40.51	38.5	40.71	38.69	40.91	38.88	41.11	39.07
Current at Maximum Power (Imp/A)	14.91	11.94	14.96	11.98	15.01	12.02	15.06	12.06	15.11	12.1	15.16	12.14	15.21	12.18
Module Efficiency(%)	22		22.2		22.4		22.6		22.8		23		23.1

Electrical characteristics with different rear side power gain (reference to 610W front)

Operating Parameters

Operational Temperature	-40℃ ~ +85℃
Power Output Tolerance	0 ~ 3%
Maximum System Voltage	DC1500V (IEC/UL)
Maximum Series Fuse Rating	35A
Nominal Operating Cell Temperature	45±2℃
Protection Class	Class II
Bifaciality	80±5%
Fire Rating	UL type 29 IEC Class C
