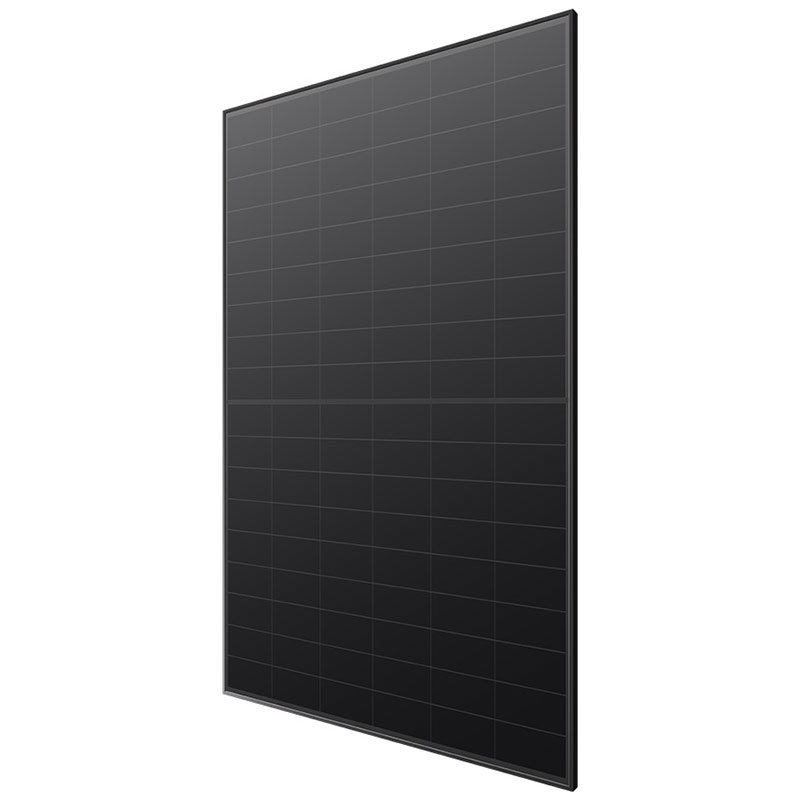

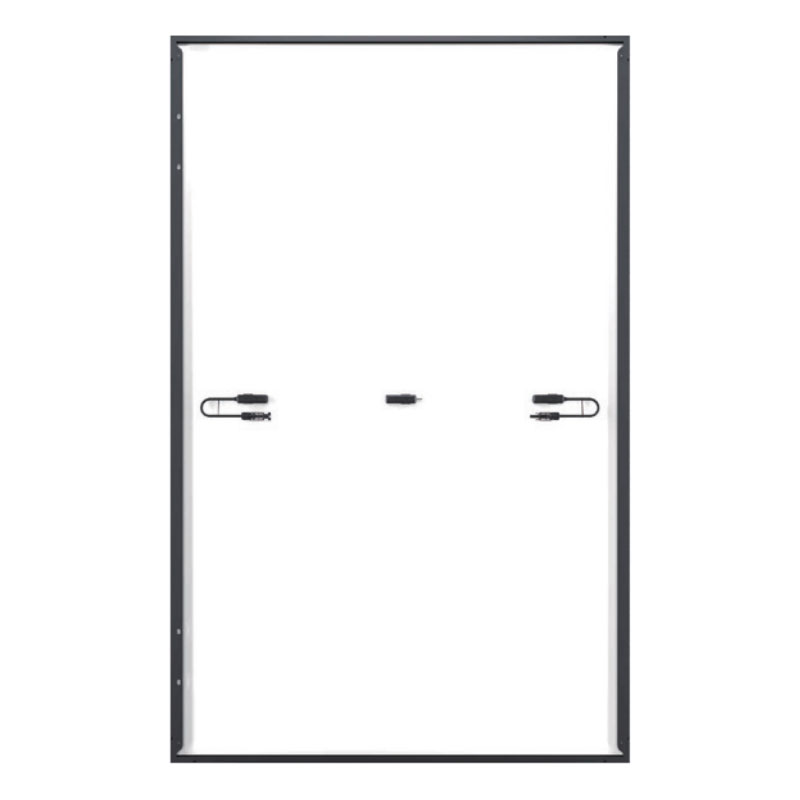

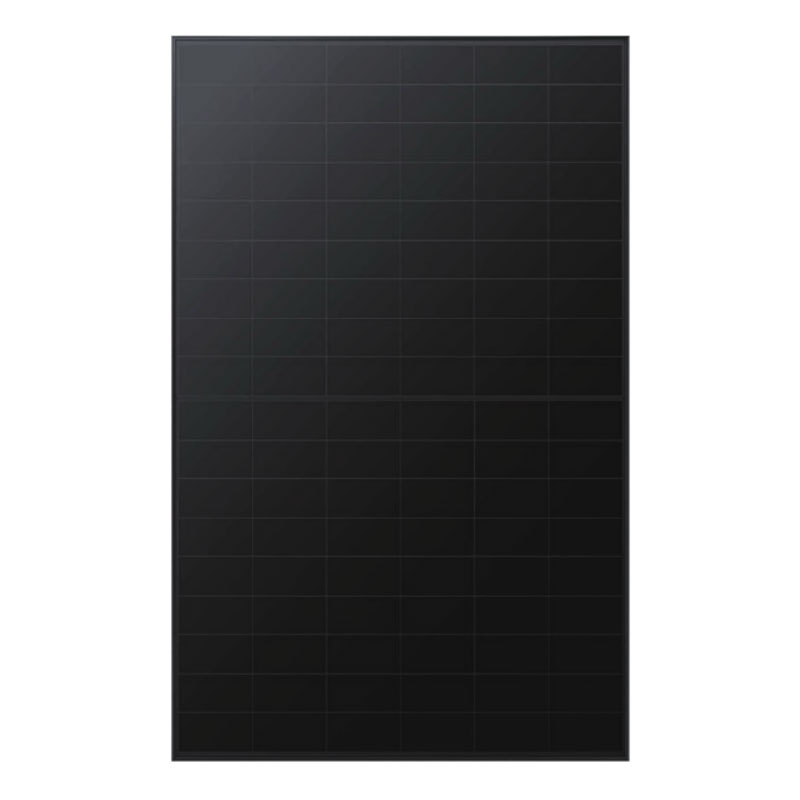

Longi Hi-MOX10 LR7-54HVB-480M EcoLife

83~87 €/pcVAT excluded

Inquiry Us Add Product

PREV: Longi Hi-MOX10 LR7-54HVB-475M EcoLife NEXT: Longi Hi-MOX10 LR7-54HVBB-470M EcoLife

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

Rated power: 475 Wp
monocrystalline cell
LxWxH: 1800x1134x30 mm
Power tolerance: 0/+3 %
Max. surface load: 3,6 kPa
Connector type: EVO2A
Module efficiency: 23,3 %
IEC 61215 certified
IEC 61730 certified
Glass: Anti Reflective Coating (ARC)

Mechanical Parameters

Cell Orientation	108 (6×18)
Junction Box	IP68, three diodes
Output Cable	4mm² , +400, -200mm/±1200mm Length can be customized
Glass	Single glass, 3.2mm coated tempered glass
Frame	Black anodized aluminum alloy frame
Weight	21.6kg
Dimension	1800×1134×30mm
Packaging	36pcs per pallet / 216pcs per 20’GP / 864pcs per 40’HC

Electrical Characteristics STC: AM1.5 1000W/m² 25℃ NOCT: AM1.5 800W/m 2 20℃ 1m/s Test uncertainty for Pmax: ± 3%

Module Type	LR7-54HVB-475M		LR7-54HVB-480M		LR7-54HVB-485M		LR7-54HVB-490M		LR7-54HVB-495M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	475	362	480	365	485	369	490	373	495	377
Open Circuit Voltage (Voc/V)	40.18	38.18	40.29	38.29	40.4	38.39	40.52	38.51	40.64	38.62
Short Circuit Current (Isc/A)	15.03	12.08	15.13	12.16	15.23	12.24	15.33	12.32	15.43	12.4
Voltage at Maximum Power (Vmp/V)	33.16	31.52	33.28	31.63	33.4	31.74	33.51	31.85	33.62	31.95
Current at Maximum Power (Imp/A)	14.33	11.49	14.43	11.57	14.53	11.65	14.63	11.73	14.73	11.81
Module Efficiency(%)	23.3		23.5		23.8		24		24.3

Operating Parameters

Operational Temperature	-40℃ ~ +85℃
Power Output Tolerance	0 ~ 3%
Maximum System Voltage	DC1500V (IEC)
Maximum Series Fuse Rating	25A
Nominal Operating Cell Temperature	45±2℃
Protection Class	Class II
Fire Rating	IEC Class C

Mechanical Loading

Front Side Maximum Static Loading	5400Pa
Rear Side Maximum Static Loading	2400Pa
Hailstone Test	25mm Hailstone at the speed of 23m/s

Temperature Ratings (STC)

Temperature Coefficient of Isc	+0.050%/℃
Temperature Coefficient of Voc	-0.200%/℃
Temperature Coefficient of Pmax	-0.260%/℃
