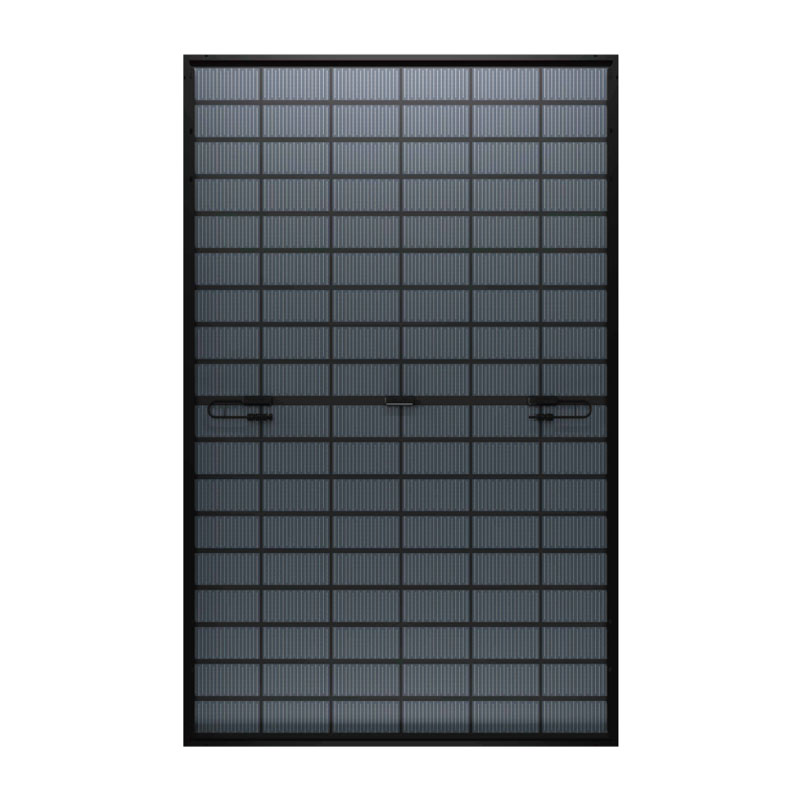

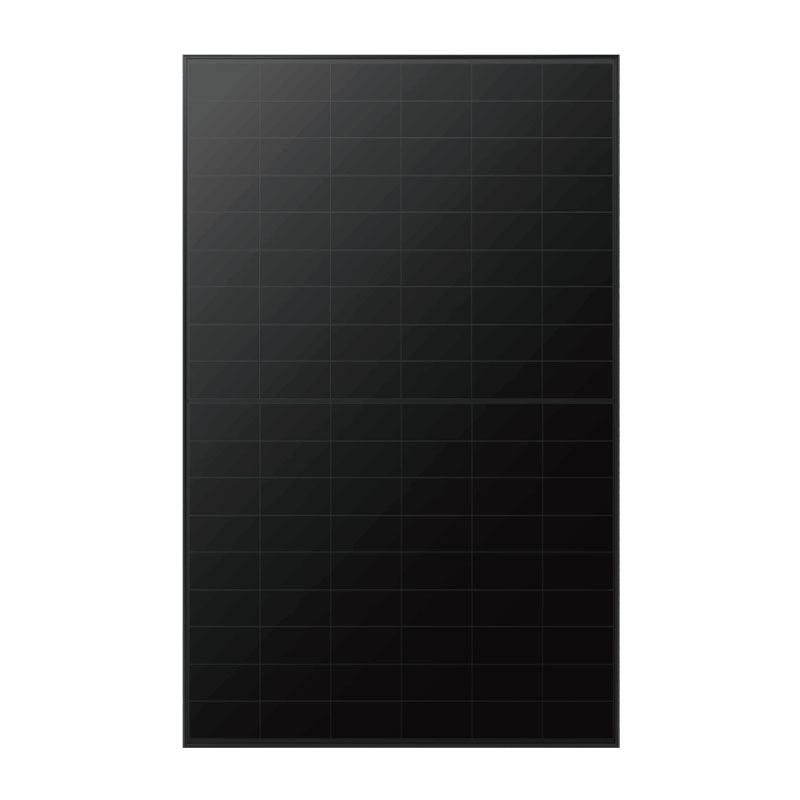

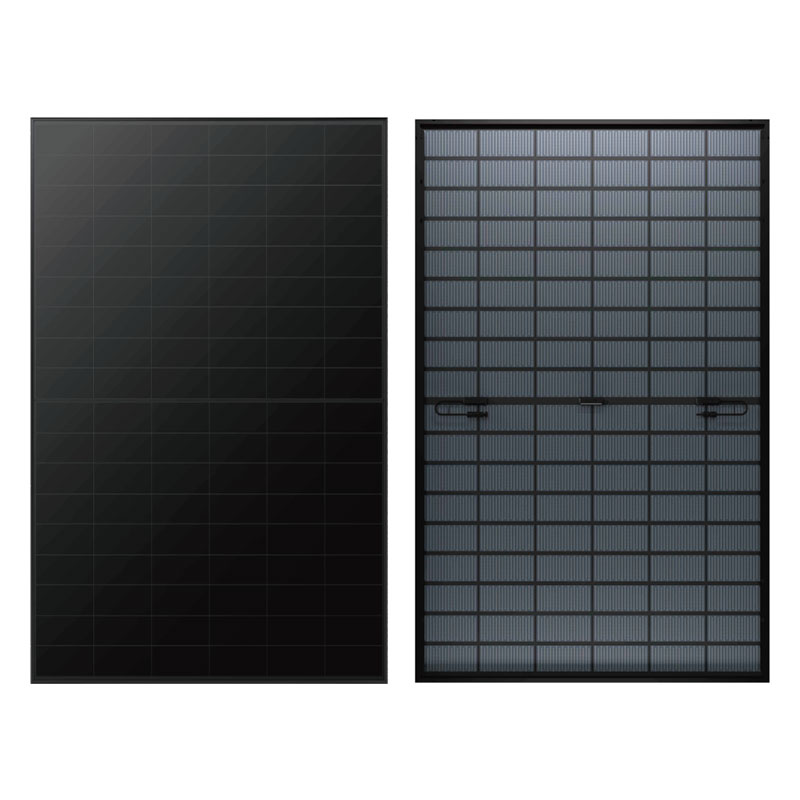

Longi Hi-MOX10 LR7-54HVBB-475M EcoLife

79~82 €/pcVAT excluded

Mechanical Parameters

Cell Orientation	108 (6×18)
Junction Box	IP68
Output Cable	4mm² , +400, -200mm/±1200mm length can be customized
Glass	Double glass 2.0mm semi-tempered glass + 1.6 mm semi-tempered glass
Frame	Black anodized aluminum alloy frame
Weight	23.5kg
Dimension	1800×1134×30mm
Packaging	36pcs per pallet / 216pcs per 20’GP / 864pcs per 40’HC

Electrical Characteristics STC: AM1.5 1000W/m² 25℃ NOCT: AM1.5 800W/m² 20℃ 1m/s Test uncertainty for Pmax: ± 3%

Module Type	LR7-54HVBB-470M		LR7-54HVBB-475M		LR7-54HVBB-480M		LR7-54HVBB-485M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	470	357	475	361	480	365	485	369
Open Circuit Voltage (Voc/V)	40.31	38.28	40.42	38.39	40.53	38.5	40.64	38.61
Short Circuit Current (Isc/A)	14.78	11.84	14.88	11.93	14.98	12.02	15.08	12.1
Voltage at Maximum Power (Vmp/V)	33.29	31.6	33.4	31.71	33.51	31.82	33.62	31.93
Current at Maximum Power (Imp/A)	14.13	11.3	14.23	11.39	14.33	11.48	14.43	11.56
Module Efficiency(%)	23		23.3		23.5		23.8

Electrical characteristics with different rear side power gain (reference to 470W front)

Operating Parameters

Operational Temperature	-40℃ ~ +85℃
Power Output Tolerance	0 ~ 3%
Maximum System Voltage	DC1500V (IEC)
Maximum Series Fuse Rating	30A
Nominal Operating Cell Temperature	45±2℃
Protection Class	Class II
Fire Rating	IEC Class C
