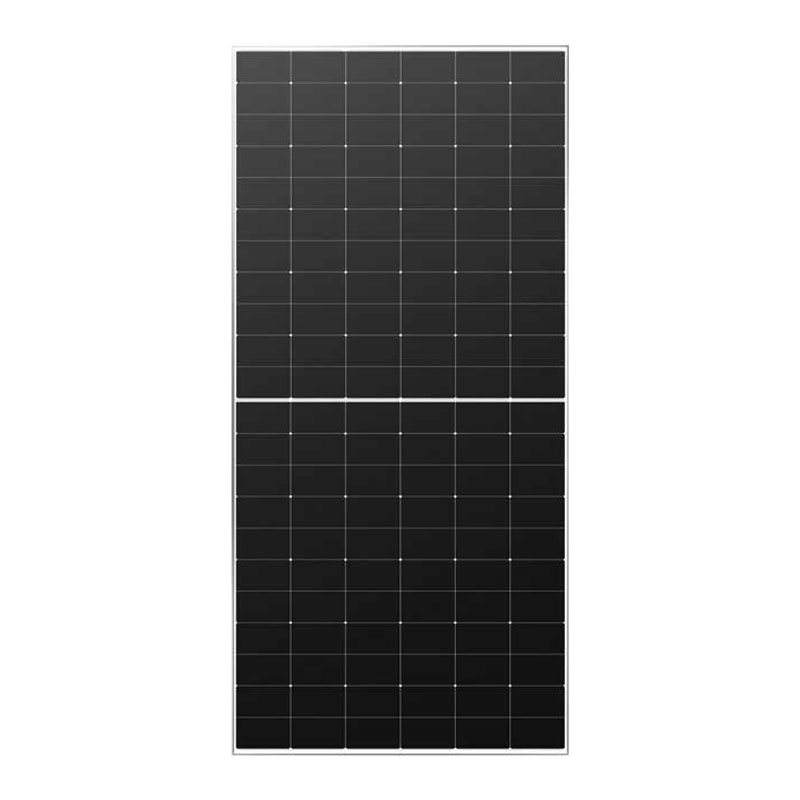

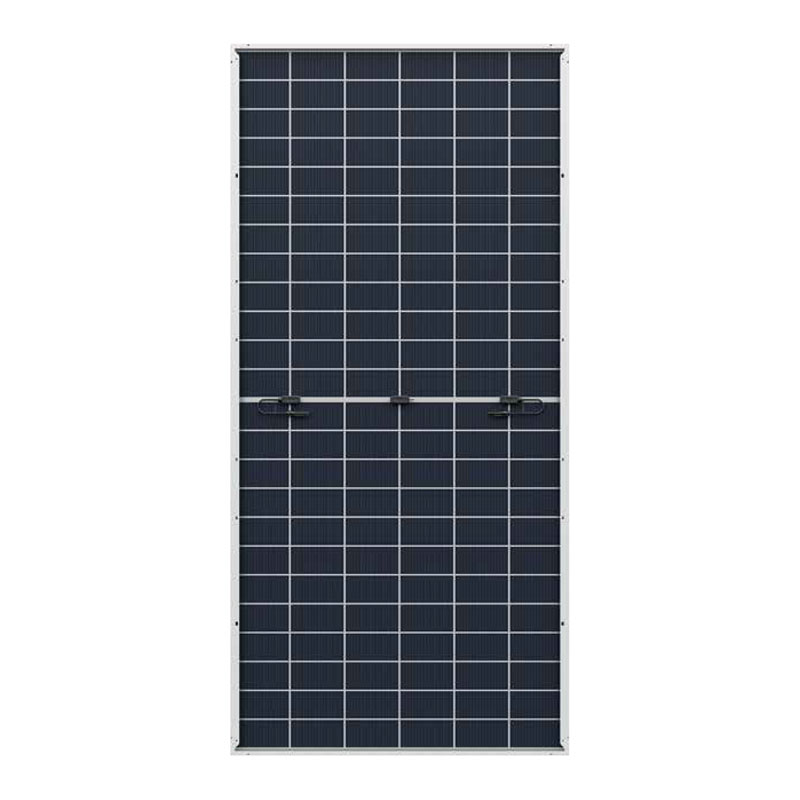

Longi Hi-MOX10 LR7-72HVDF-645M

74~77 €/pcVAT excluded

Inquiry Us Add Product

PREV: Longi Hi-MOX10 LR7-72HVDF-640M NEXT: Longi Hi-MOX10 LR7-72HVH-635M

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

Hi-MO X10 takes over the core technology of HPBC 2.0 cells, leading in power generation performance, reliability, and customer benefits, which can better meet the needs of distributed customers for products. The Hi-MO X10 includes two series—Scientist, Guardian, making it the first choice for the value of distributed PV.

Ultimate Safety, Maximum Power Generation, Minimalist Beauty

The LONGi Hi-MO X10 is a premium product built on the revolutionary HPBC 2.0 cell technology. It leads in terms of power generation performance, reliability, and customer benefits, while also meeting the needs of distributed market segments. It is divided into four series: Explorer, Scientist, Guardian, and Artist, making it the preferred high-value product for the global distributed market.

Leading Features :
‣ Suitable for the Distribution Market
‣ Highest efficiency with the best energy generation performance
‣ TaiRay wafer & BC technology enhances high product reliability
‣ Smart manufacturing & LONGi product lifecycle standards deliver exceptional product quality

Mechanical Parameters

Cell Orientation	144 (6×24)
Junction Box	IP68, three diodes
Output Cable	4mm 2 , +400, -200mm/±1400mm Length can be customized
Glass	Double glass, 2.0mm semi-tempered glass
Frame	Anodized aluminum alloy frame
Weight	33.5kg
Dimension	2382×1134×30mm
Packaging	36pcs/ 140pcs per 20’GP / 700pcs per 40’HC

Electrical Characteristics STC: AM1.5 1000W/m² 25℃ NOCT: AM1.5 800W/m² 20℃ 1m/s Test uncertainty for Pmax: ± 3%

Module Type	LR7-72HVDF-640M		LR7-72HVDF-645M		LR7-72HVDF-650M		LR7-72HVDF-655M		LR7-72HVDF-660M		LR7-72HVDF-665M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	640	487	645	491	650	495	655	499	660	502	665	506
Open Circuit Voltage (Voc/V)	54.02	51.34	54.12	51.43	54.22	51.53	54.32	51.62	54.42	51.72	54.52	51.81
Short Circuit Current (Isc/A)	14.98	12.03	15.06	12.1	15.14	12.16	15.22	12.22	15.3	12.29	15.35	12.33
Voltage at Maximum Power (Vmp/V)	44.67	42.45	44.77	42.55	44.87	42.64	44.97	42.74	45.07	42.83	45.17	42.93
Current at Maximum Power (Imp/A)	14.33	11.49	14.41	11.55	14.49	11.61	14.57	11.68	14.65	11.75	14.72	11.8
Module Efficiency(%)	23.7		23.9		24.1		24.2		24.4		24.6

Electrical characteristics with different rear side power gain(Taking 655W as the baseline)

Pmax /W	Voc/V	Isc /A	Vmp/V	Imp /A	Pmax gain
688	54.32	15.98	44.97	15.3	5%
721	54.32	16.74	44.97	16.03	10%
755	54.42	17.5	45.07	16.76	15%
788	54.42	18.26	45.07	17.48	20%
821	54.42	19.03	45.07	18.21	25%

Operating Parameters

Operational Temperature	-40℃ ~ +85℃
Power Output Tolerance	0 ~ 3%
Maximum System Voltage	DC1500V (IEC)
Maximum Series Fuse Rating	30A
Nominal Operating Cell Temperature	45±2℃
Protection Class	Class II
Bifaciality	70±5%
Fire Rating	IEC Class C

Mechanical Loading

Front Side Maximum Static Loading	5400Pa
Rear Side Maximum Static Loading	2400Pa
Hailstone Test	25mm Hailstone at the speed of 23m/s

Temperature Ratings (STC)

Temperature Coefficient of Isc	+0.050%/℃
Temperature Coefficient of Voc	-0.200%/℃
Temperature Coefficient of Pmax	-0.260%/℃
