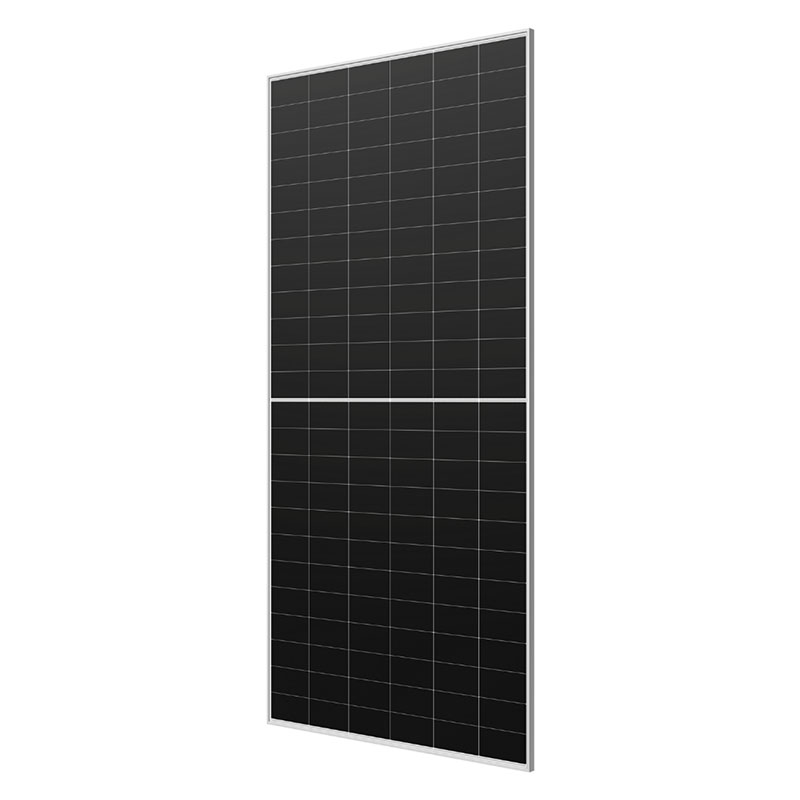

Longi Hi-MOX10 LR7-72HVHF-640M

71~74 €/pcVAT excluded

Inquiry Us Add Product

PREV: Longi Hi-MOX10 LR7-72HVHF-635M NEXT: Longi Hi-MOX10 LR7-72HVHF-645M

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

Longi Guardian LR7-72 HVHF:
Equipped with a high-efficiency gene and an HPBC 2.0 cell. Throughout its whole lifecycle, the unique frame design enhances power generation gain and successfully mitigates the effects of dust accumulation. Excellent dependability and steady performance in challenging circumstances.Better suited for small angle installation situations and commercial and industrial color steel tile roofs.

Mechanical Parameters

Cell Orientation	144 (6×24)
Junction Box	IP68, three diodes
Output Cable	4mm 2 , +400, -200mm/±1400mm Length can be customized
Glass	Single glass, 3.2mm coated tempered glass
Frame	Anodized aluminum alloy frame
Weight	28.5kg
Dimension	2382×1134×30mm
Packaging	35pcs per pallet / 140pcs per 20’GP / 700pcs per 40’HC

Electrical Characteristics STC: AM1.5 1000W/m² 25℃ NOCT: AM1.5 800W/m2 20℃ 1m/s Test uncertainty for Pmax: ± 3%

Module Type	LR7-72HVHF-640M		LR7-72HVHF-645M		LR7-72HVHF-650M		LR7-72HVHF-655M		LR7-72HVHF-660M		LR7-72HVHF-665M		LR7-72HVHF-670M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	640	487	645	491	650	495	655	499	660	502	665	506	670	510
Open Circuit Voltage (Voc/V)	53.7	51.04	53.8	51.13	53.9	51.23	54	51.32	54.1	51.42	54.2	51.51	54.3	51.61
Short Circuit Current (Isc/A)	15.13	12.15	15.21	12.22	15.29	12.28	15.37	12.34	15.45	12.41	15.52	12.47	15.6	12.53
Voltage at Maximum Power (Vmp/V)	44.36	42.15	44.46	42.25	44.56	42.35	44.66	42.44	44.76	42.54	44.86	42.63	44.96	42.73
Current at Maximum Power (Imp/A)	14.43	11.56	14.51	11.63	14.59	11.69	14.67	11.76	14.75	11.82	14.83	11.88	14.91	11.94
Module Efficiency(%)	23.7		23.9		24.1		24.2		24.4		24.6		24.8

Operating Parameters

Operational Temperature	-40℃ ~ +85℃
Power Output Tolerance	0 ~ 3%
Maximum System Voltage	DC1500V (IEC)
Maximum Series Fuse Rating	25A
Nominal Operating Cell Temperature	45±2℃
Protection Class	Class II
Fire Rating	IEC Class C

Mechanical Loading

Front Side Maximum Static Loading	5400Pa
Rear Side Maximum Static Loading	2400Pa
Hailstone Test	25mm Hailstone at the speed of 23m/s

Temperature Ratings (STC)

Temperature Coefficient of Isc	+0.050%/℃
Temperature Coefficient of Voc	-0.200%/℃
Temperature Coefficient of Pmax	-0.260%/℃

Contact Us

Welcome to Uni Z International B.V.

Uni Z International B.V. is committed to providing you with a full range of solar energy storage products and solutions. We guide the industry and provide you with products at more favorable prices, more timely logistics and delivery, and more secure after-sales and technical support. Longi Hi-MOX10 LR7-72HVHF-640M Suppliers and Company in China. We bring you one-stop solutions for smarter, more efficient and more reliable photovoltaic energy storage products. Wholesale Longi Hi-MOX10 LR7-72HVHF-640M.

We not only provide high-end solar energy storage products and technologies, but also provide you as an installer with comprehensive training and technical support. We believe that only if you have the latest knowledge and skills can our end customers enjoy the advantages of more advanced solar technology.

At Uni Z International B.V., we not only provide products, but also seek to establish a long-term and close partnership with you. We look forward to working with you to meet the challenges and opportunities of the future of solar energy.Start your solar energy journey, choose Uniz Solar and move towards a cleaner, more sustainable future!
