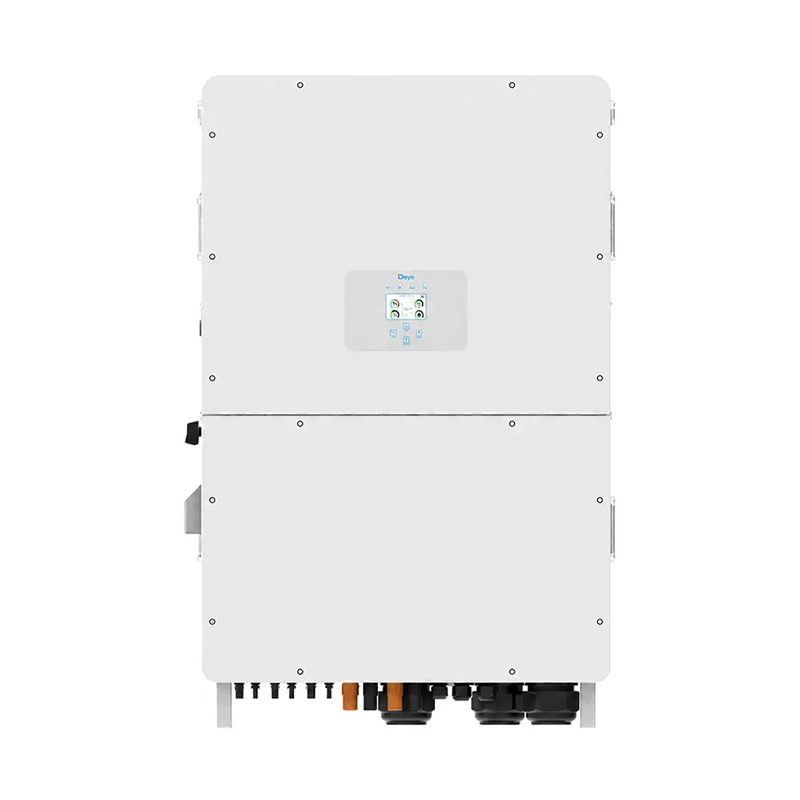

Deye SUN-100K-SG02HP3-EU-GM10 100kW 10-MPPT Three-Phase High-Voltage Hybrid Inverter

Name: Deye SUN-100K-SG02HP3-EU-GM10 100kW 10-MPPT Three-Phase High-Voltage Hybrid Inverter
Rating: 5 (99 reviews)

customizedVAT excluded

Inquiry Us Add Product

PREV: Deye SUN-30K-SG02HP3-EU-AM3 30kW Three-Phase High-Voltage Hybrid Inverter NEXT: Deye SUN-125K-SG02HP3-EU-GM10 125kW 10-MPPT Three-Phase High-Voltage Hybrid Inverter

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

The Deye SUN-100K-SG02HP3-EU-GM10 is a 100 kW high-voltage hybrid inverter built for C&I sites where the inverter becomes part of the site's power infrastructure. This exact GM10 version combines ten MPPT trackers with up to 200 kW of connected PV and 160 kW maximum PV input, allowing large rooftops or multi-block arrays to be segmented without external MPPT concentration. Two 160–1000 V battery inputs provide a combined 100+100 A charge/discharge interface, while the AC side offers 100 kW rated output, 110 kVA maximum apparent power and a 250 A continuous passthrough path. Generator integration, 1.5× overload capability for 10 seconds and up to 10-unit parallel operation make this model suitable for factories, logistics sites, commercial campuses and other projects that need high-power PV, storage and backup to work under one coordinated control architecture.

Rated AC power	100 kW
max. AC apparent power	110 kVA
Battery	Li-ion, 160–1000 V; 2 battery inputs; max. charge/discharge current 100+100 A
Max. PV access power	200 kW
max. PV input power	160 kW
PV input	1000 V max; 180 V start; MPPT range 150–850 V; current live page rated PV input 650 V
MPPT	10 trackers; max. operating PV current 42 A per MPPT; short-circuit current 63 A per MPPT
Rated AC input/output current	151.6/145 A
max. AC input/output current	166.7/159.5 A
Continuous AC passthrough	250 A
off-grid peak	1.5× rated power for 10 s
Efficiency	max. 98.7%; Euro 98.1%; MPPT >99%
System	230/400 V three phase; generator support; IP65; up to 10 units in parallel
