Deye SUN-30K-SG02HP3-EU-AM3 30kW Three-Phase High-Voltage Hybrid Inverter

Name: Deye SUN-30K-SG02HP3-EU-AM3 30kW Three-Phase High-Voltage Hybrid Inverter
Rating: 5 (99 reviews)

2430~2690 €/pcVAT excluded

Inquiry Us Add Product

PREV: Deye SUN-29.9K-SG02HP3-EU-AM3 29.9kW Three-Phase High-Voltage Hybrid Inverter NEXT: Deye SUN-100K-SG02HP3-EU-GM10 100kW 10-MPPT Three-Phase High-Voltage Hybrid Inverter

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

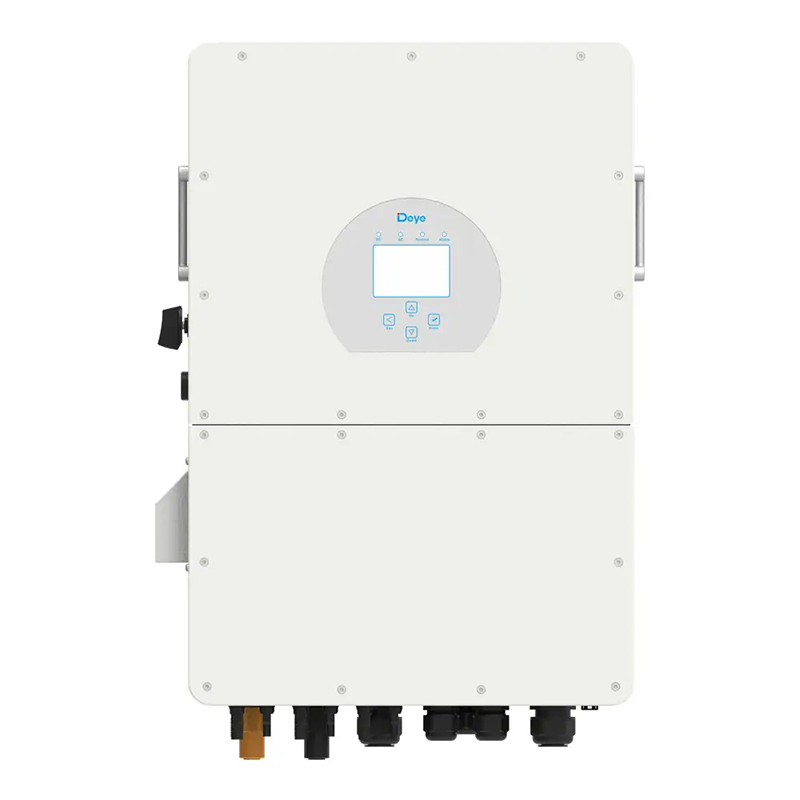

The Deye SUN-30K-SG02HP3-EU-AM3 is the 30kW member of Deye's SG02HP3 high-voltage three-phase hybrid platform. It is sized for 30 kW-class C&I solar-plus-storage systems that require extra AC apparent-power headroom, pairing a 160–700 V Li-ion battery interface with up to 75 A charge/discharge current. On the solar side, this exact model accepts up to 60 kW of connected PV and 48 kW maximum PV input, distributed across three MPPT trackers for flexible roof zoning and string design. The inverter delivers 30kW rated AC power, supports 100% unbalanced output and provides an 80 A continuous AC passthrough path. Generator input, AC coupling, 1.5× off-grid overload for 10 seconds and parallel operation up to 10 units make it particularly useful where PV, storage and backup must operate as one coordinated commercial energy system rather than as separate components.

Rated AC power	30kW;
Max. AC apparent power	33 kVA
Battery	Li-ion, 160–700 V; max. charge/discharge current 75 A
Max. PV access power	60 kW;
Max. PV input power	48 kW
PV input	1000 V max; 180 V start; MPPT range 150–850 V; rated PV input 600 V
MPPT	3 trackers / 2+2+2 strings; operating current 36+36+36 A; short-circuit current 54+54+54 A
Rated AC input/output current	45.5/43.5 A;
Max. AC input/output current	50/47.9 A
Continuous AC passthrough	80 A;
off-grid peak	1.5× rated power for 10 s
Efficiency	max. 98.5%; Euro 98.0%; MPPT >99%
Features	100% unbalanced output; generator/AC-coupling support; IP65; up to 10 units in parallel
