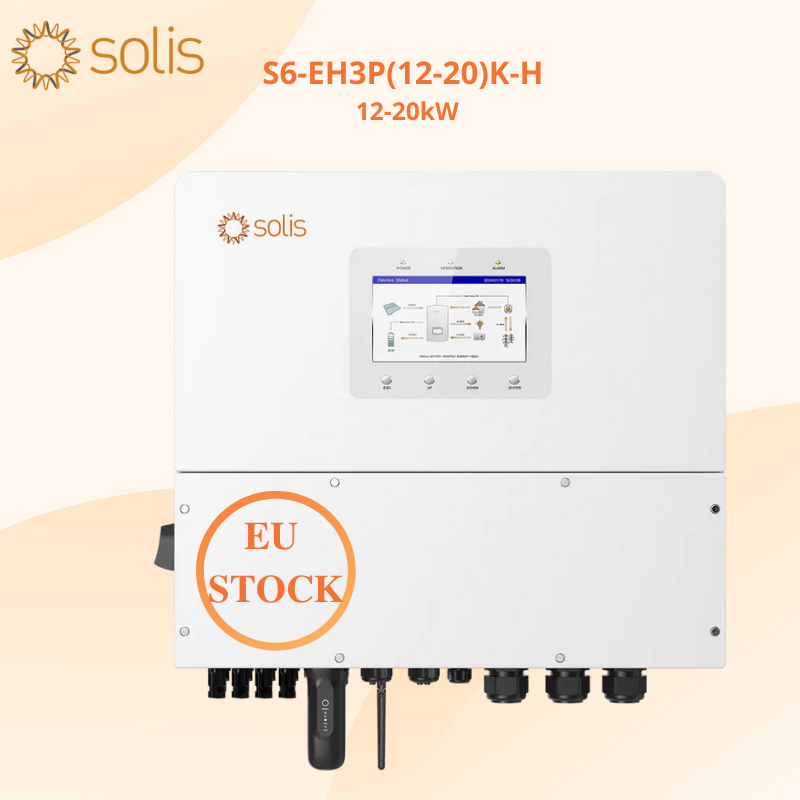

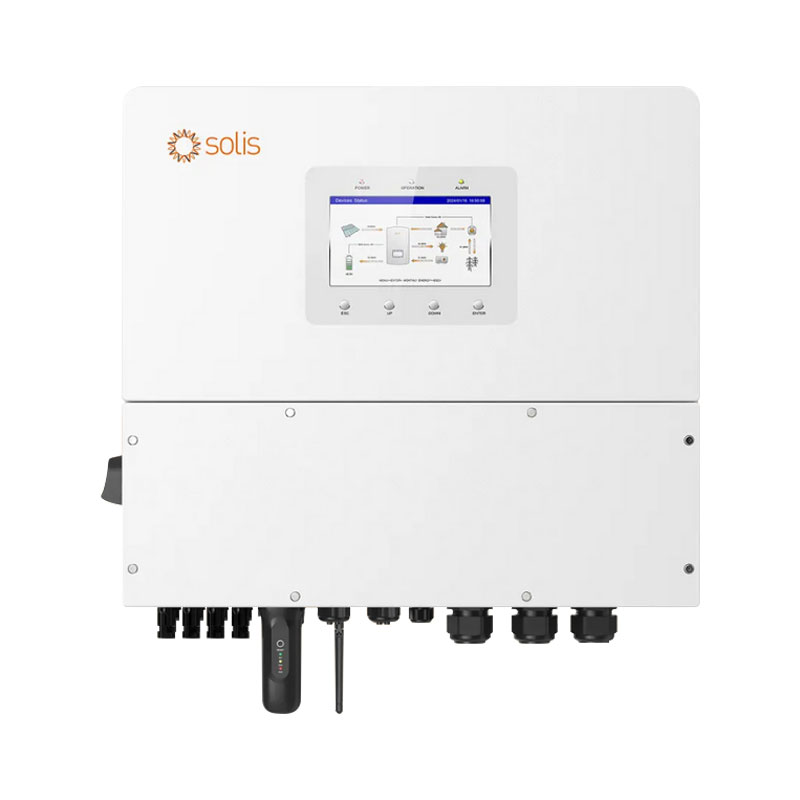

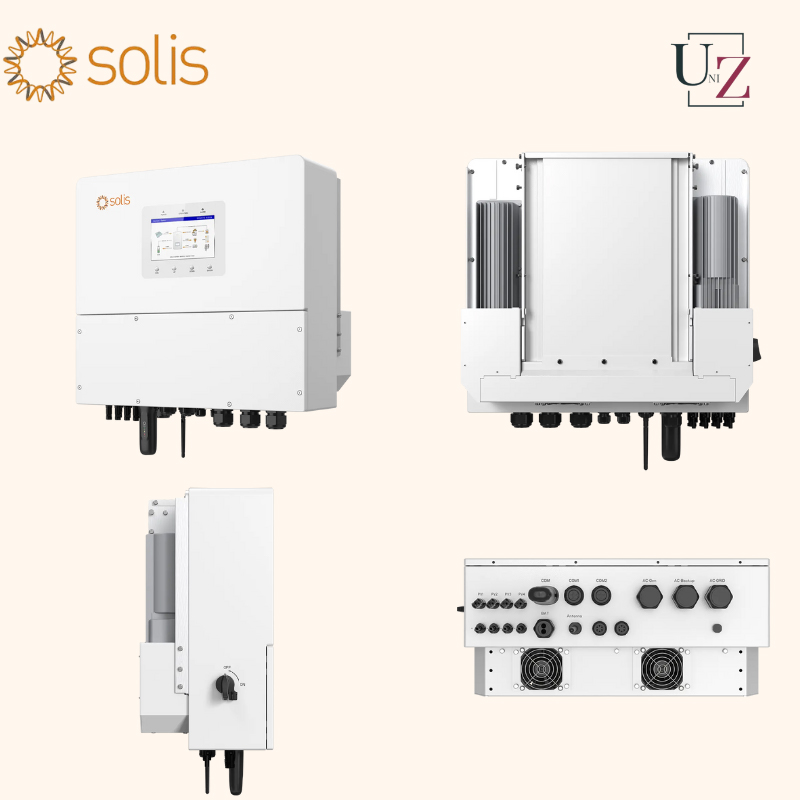

Solis S6-EH3P12K-H Three-phase Energy Storage Inverter

1420 - 1475 €/pcVAT excluded

Models	12K	15K	20K
Input DC (PV side)
Recommended max. PV array size	24 kW	30 kW	40 kW
Max. usable PV input power	19.2 kW	24 kW	32 kW
Max. input voltage	1000 V
Rated voltage	600 V
Start-up voltage	160 V
MPPT voltage range	200-850V
Max. input current	4×20 A
Max. short circuit current	4×30 A
MPPT number /Max.input strings number	4/4
Battery
Battery type	Li-ion
Battery voltage range	120 - 800 V
Max. charge/ discharge power	12 kW	15 kW	20 kW
Max. charge/discharge current	50 A
Communication	CAN / RS485
Output AC (Grid side)
Rated output power	12 kW	15 kW	20 kW
Max. apparent output power	12 kVA	15 kVA	20 kVA
Rated grid voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	18.2 A / 17.3 A	22.8 A / 21.7 A	30.4 A / 28.9 A
Max. output current	18.2 A / 17.3 A	22.8 A / 21.7 A	30.4 A / 28.9 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Input AC (Grid side)
Input voltage range	304 - 437 V / 320 - 460 V
Max.input current	27.3 A / 26.0 A	34.2 A / 32.5 A	45.6 A / 43.3 A
Rated grid frequency	50 Hz / 60 Hz
Frequency range	45 - 55 Hz / 55 - 65 Hz
Input Generator
Max.input power	12 kW	15 kW	20 kW
Max.input current	18.2 A / 17.3 A	22.8 A / 21.7 A	30.4 A / 28.9 A
Rated input frequency	50 Hz / 60 Hz
Output AC (Back-up)
Rated output power	12 kW	15 kW	20 kW
Max. apparent output power	1.6 time of rated power, 10 s
Back-up switch time	< 10 ms
Rated output voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated frequency	50 Hz / 60 Hz
Rated output current	18.2 A / 17.3 A	22.8 A / 21.7 A	30.4 A / 28.9 A
THDv (@linear load)	< 3%
Efficiency
Max. efficiency	97.70%
EU efficiency	97.50%
BAT charged by PV max. efficiency	98.50%
BAT charged / discharged to AC max. efficiency	97.20%
Protection
Anti-islanding protection	Yes
Output over current protection	Yes
Short circuit protection	Yes
Integrated AFCI 2.0	Optional
Integrated DC switch	Yes
DC reverse-polarity protection	Yes
PV over voltage protection	Yes
Battery reverse protection	Yes
General Data
Max. allowable phase imbalance (grid & back-up)	100%
Max. power per phase (grid & back-up)	40% rated power
Dimensions (W × H × D)	563 × 546 × 250 mm
Weight	35.2 kg
Topology	Transformerless
Self-consumption (night)	< 25 W
Operating ambient temperature range	-25~+60°C
Relative humidity	0 - 100%
Ingress protection	IP66
Noise emission (typical)	< 65 dB(A)
Cooling concept	Intelligent fan-cooling
Max. operation altitude	4000 m
Grid connection standard	EN 50549-1/-10, VDE4105, CEI 0-21, CEI 0-16, NC-RFG TypeB, NRS 097-2-1, LTU-1, G99, PEA
Safety /EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Features
PV connection	MC4 connector
Battery connection	OT terminal
AC connection	OT terminal
Display	7.0" LCD display & Bluetooth + APP
Communication	CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
