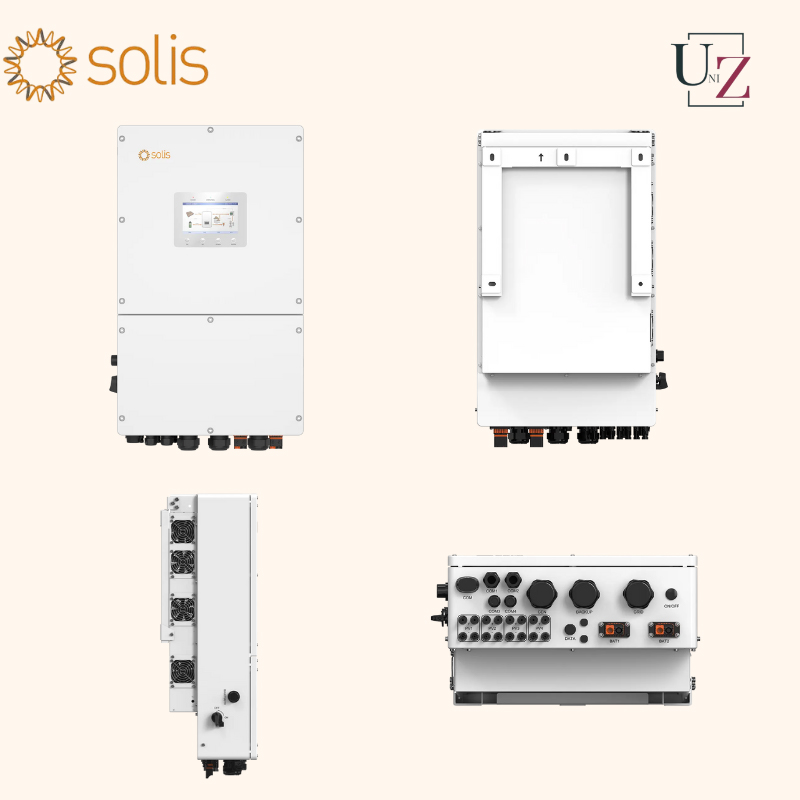

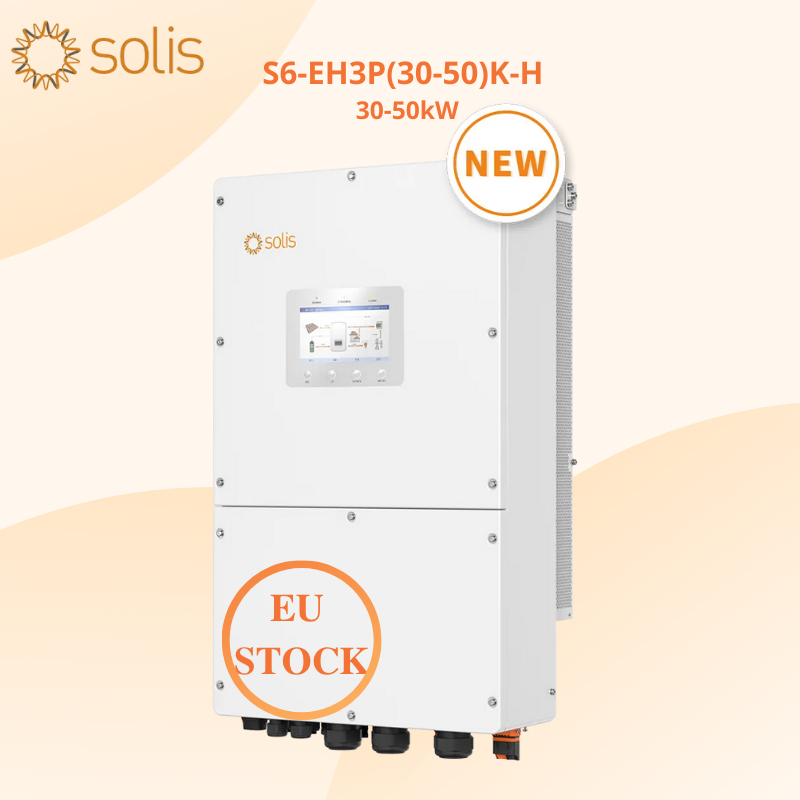

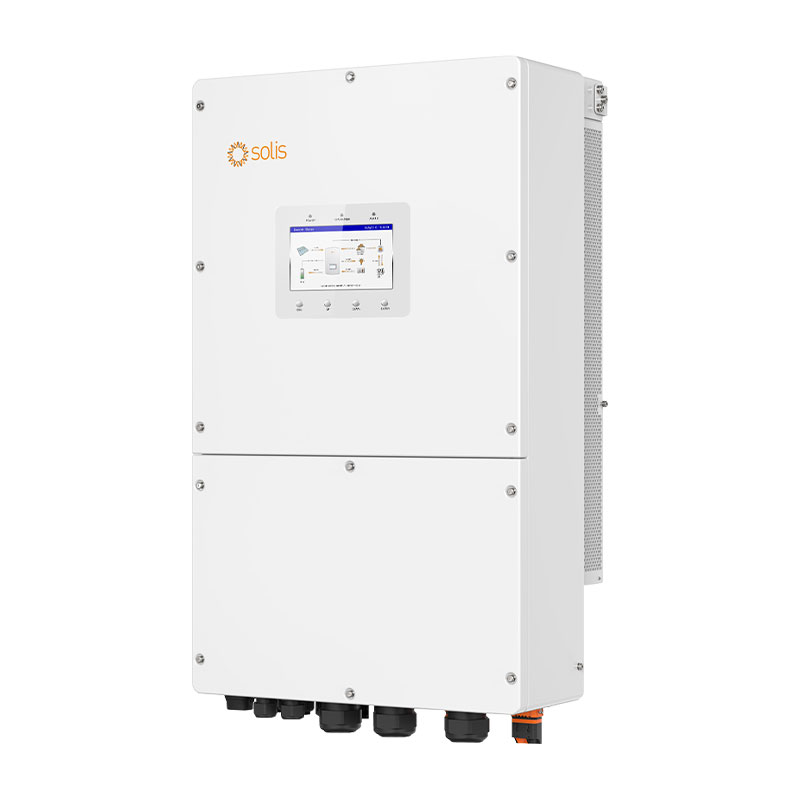

Solis S6-EH3P40K-H Three-phase Energy Storage Inverter

3900 - 4050 €/pcVAT excluded

Inquiry Us Add Product
PREV: Solis S6-EH3P30K-H Three-phase Energy Storage Inverter NEXT: Solis S6-EH3P50K-H Three-phase Energy Storage Inverter
  • Product Description

Uni Z International B.V.+39 3444606026/+31610999937

Uni Z International B.V.[email protected]

The S6-EH3P40K-H models are advanced three-phase energy storage inverters, perfect for larger residential and small commercial PV energy storage systems. They support generator linkage and parallel inverter setups. Their 4-MPPT configuration is designed for extensive rooftop PV installations with varied roof directions and complex architectures. These models deliver adaptable load performance, UPS-standard switching, 10-second 160% surge overload backup, and support for three-phase unbalanced and half-wave loads, providing stable and trustworthy power output.

Models 29.9K 30K 40K 50K
Input DC (PV side)
Recommended max. PV array size 59.8 kW 60 kW 80 kW 100 kW
Max. usable PVinput power 59.8 kW 60 kW 80 kW 96 kW
Max. input voltage 1000 V
Rated voltage 600 V
Start-up voltage 180 V
MPPT voltage range 150 - 850 V
Max.input current 40 A / 40 A / 40 A 4 x 40 A
Max. short circuit current 60 A / 60 A / 60 A 4 x 60 A
MPPT number /Max.input strings number 3/6 4/8
Battery
Battery type Li-ion
Battery voltage range 150 - 800 V
Max. charge/ discharge power 32.1 kW 33 kW 44 kW 55 kW
Max. charge / discharge current 70 A x 2 ⑴
Number of battery ports 2
Max. charge / discharge power of each input 32.1 kW 33 kW 35 kW 35 kW
Communication CAN / RS485
Output AC (Grid side)
Rated output power 29.9 kW 30 kW 40 kW 50 kW
Max. apparent output power 29.9 kVA 30 kVA 40 kVA 50 kVA
Rated grid voltage 3/N/PE, 220 V/ 380 V, 230 V/400 V
Rated grid frequency 50 Hz / 60 Hz
Rated grid output current 45.4 A / 43.2 A 45.6 A / 43.3 A 60.8 A / 57.7 A 76 A / 72.2 A
Max. output current 45.4 A / 43.2 A 45.6 A / 43.3 A 60.8 A / 57.7 A 76 A / 72.2 A
Power factor > 0.99 (0.8 leading - 0.8 lagging)
THDi < 3%
Input AC (Grid side)
Max. AC passthrough current 90.8 A / 86.4 A 91.2 A / 86.6 A 121.6 A / 115.4 A 152 A / 144.4 A
Rated input voltage 3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated input frequency 50 Hz / 60 Hz
Input Generator
Max. input power 29.9 kW 30 kW 40 kW 50 kW
Rated input current 45.4 A / 43.2 A 45.6 A / 43.3 A 60.8 A / 57.7 A 76 A / 72.2 A
Rated input voltage 3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated input frequency 50 Hz / 60 Hz
Output AC (Back-up)
Rated output power 29.9 kW 30 kW 40 kW 50 kW
Max. apparent output power 1.6 times of rated power, 2 s
Back-up switch time < 10 ms
Rated output voltage 3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated frequency 50 Hz / 60 Hz
Rated output current 45.4 A / 43.2 A 45.6 A / 43.3 A 60.8 A / 57.7 A 76 A / 72.2 A
THDv (@linear load) < 2%
Efficiency
Max. efficiency 97.80%
EU efficiency 97.40%
BAT charged by PV max. efficiency 98.50%
BAT charged / discharged to AC max. efficiency 97.50%
Protection
Anti-islanding protection Yes
Output over current protection Yes
Short circuit protection Yes
Integrated DC switch Yes
DC reverse-polarity protection Yes
Surge protection DC Type II / AC Type II
Integrated AFCI2.0 Optional
General Data
Dimensions (W x H x D) 530 × 880 × 290 mm
Weight 73 kg
Topology Transformerless
Self-consumption (night) < 35 W
Operating ambient temperature range -25 ~ +60°C
Relative humidity 0 - 100%
Ingress protection IP66
Cooling concept Intelligent fan-cooling
Max. operation altitude 4000 m
Grid connection standard G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1/EN 50549-10, VDE 0126/UTE C 15/VFR:2019,
NTS 631/RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2,
IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA,PORTARIA Nº 140, DE 21 DE MARÇO DE 2022
Safety /EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011
Features
PV connection MC4 Quick connection plug
Battery connection Terminal connector
AC connection Terminal Block
Display 7.0" LCD display & Bluetooth + APP
Communication CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
