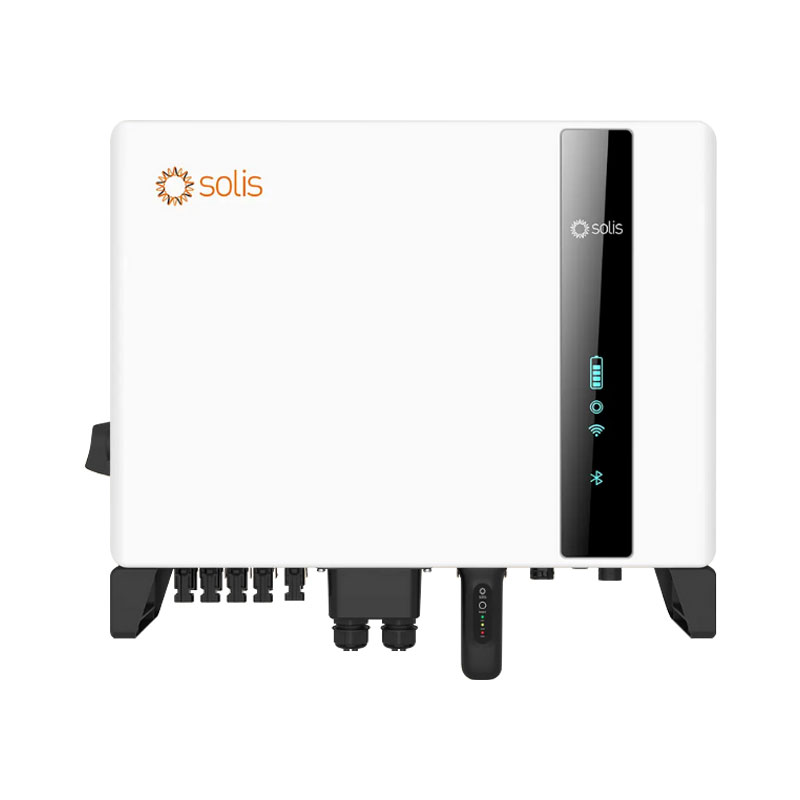

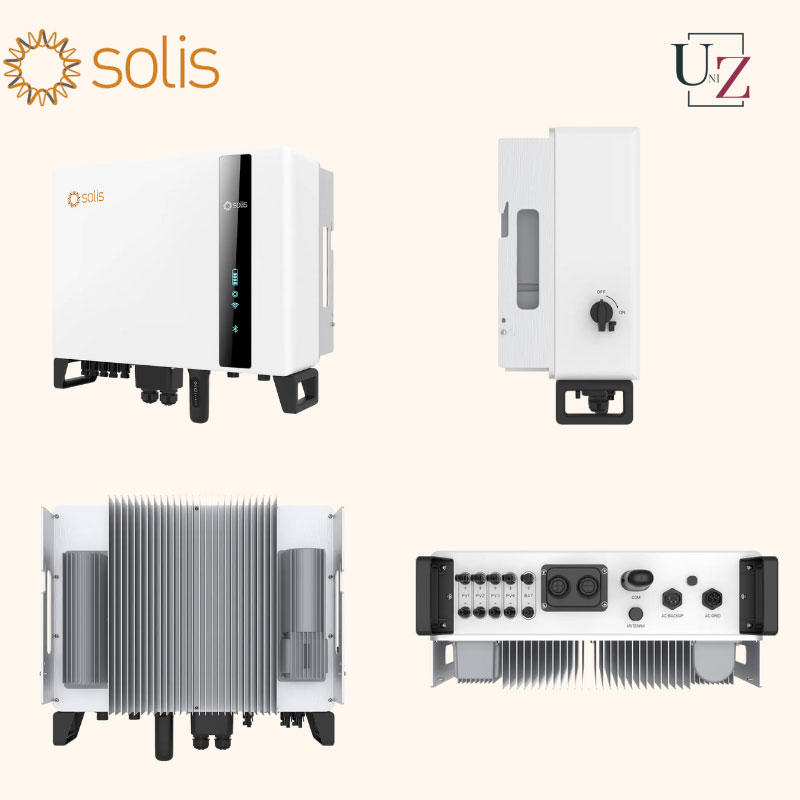

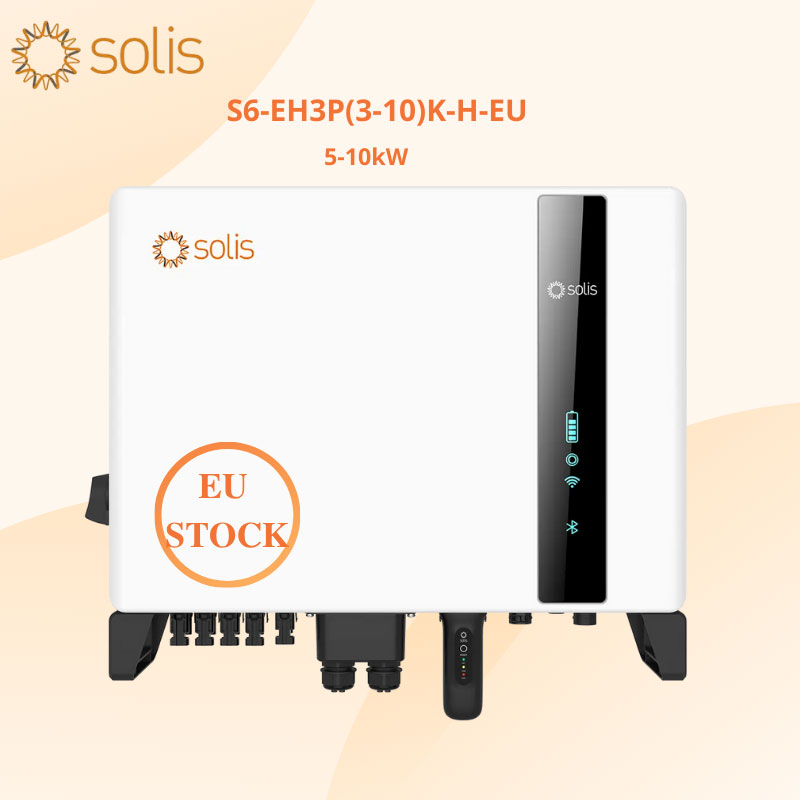

Solis S6-EH3P5K-H-EU Solar Inverter

1130 - 1170 €/pcVAT excluded

Models	5K2	6K2	8K2	10K2	3K-EU	4K-EU	5K-EU	6K-EU	8K-EU	10K-EU
Input DC (PV side)
Recommended max. PV array size	10 kW	12 kW	16 kW	20 kW	6 kW	8 kW	10 kW	12 kW	16 kW	20 kW
Max. usable PV input power	8 kW	9.6 kW	12.8 kW	16 kW	4.8 kW	6.4 kW	8 kW	9.6 kW	12.8 kW	16 kW
Max. input voltage	1000 V
Rated voltage	600 V
Start-up voltage	160 V
MPPT voltage range	200 - 850V
Max. input current	16 A/16 A				16 A/16 A		16 A / 16 A / 16 A		4 x 16 A
Max. short circuit current	24 A / 24 A				24 A / 24 A		24 A / 24 A / 24 A		4 x 24 A
MPPT number /Max.input strings number	2/2				2/2		3/3		4/4
Battery
Battery type	Li-ion
Battery voltage range	120 - 600 V ①
Max. charge/discharge power	5 kW	6 kW	8 kW	10 kW	3 kW	4 kW	5 kW	6 kW	8 kW	10 kW
Max. charge/discharge current	25 A		50 A		25 A				50 A
Communication	CAN / RS485
Output AC (Grid side)
Rated output power	5 kW	6 kW	8 kW	10 kW	3 kW	4 kW	5 kW	6 kW	8 kW	10 kW
Max. apparent output power	5 kVA	6 kVA	8 kVA	10 kVA	3 kVA	4 kVA	5 kVA	6 kVA	8 kVA	10 kVA
Rated grid voltage	3/N/PE, 380 V / 400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	7.6 A/7.2 A	9.1 A/8.7 A	12.2 A/11.5 A	15.2 A/14.4 A	4.6 A/4.3 A	6.1 A/5.8 A	7.6 A/7.2 A	9.1 A/8.7 A	12.2 A/11.5 A	15.2 A/14.4 A
Max.output current	7.6 A/7.2 A	9.1 A/8.7 A	12.2 A/11.5 A	15.2 A/14.4 A	4.6 A/4.3 A	6.1 A/5.8 A	7.6 A/7.2 A	9.1 A/8.7 A	12.2 A/11.5 A	15.2 A/14.4 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Input AC (Grid side)
Input voltage range	304 - 437 V / 320 - 460 V
Max. input current	11.4 A / 10.9 A	13.6 A / 13.0 A	18.2 A / 17.4 A	22.7/21.7 A	6.8 A /6.5 A	9.1 A/8.7 A	11.4 A/10.9 A	13.6 A/13.0 A	18.2 A/17.4 A	22.7 A/21.7 A
Rated grid frequency	50 Hz / 60 Hz
Frequency range	45 - 55 Hz / 55 - 65 Hz
Output AC (Back-up)
Rated output power	5 kW	6 kW	8 kW	10 kW	3 kW	4 kW	5 kW	6 kW	8 kW	10 kW
Max. apparent output power	1.6 times of rated power, 60 s
Back-up switch time	< 10 ms
Rated output voltage	3/N/PE, 380 V / 400 V
Rated frequency	50 Hz / 60 Hz
Rated output current	7.6 A / 7.2 A	9.1 A / 8.7 A	12.2 A / 11.5 A	15.2 A / 14.4 A	4.6 A / 4.3 A	6.1 A / 5.8 A	7.6 A / 7.2 A	9.1 A / 8.7 A	12.2 A / 11.5 A	15.2 A / 14.4 A
THDv (@linear load)	< 2%
Efficiency
Max. efficiency	96.50%	97.00%	97.50%	97.90%	95.50%	96.00%	96.50%	97.00%	97.50%	97.90%
EU efficiency	96.77%	97.10%	97.41%	97.51%	95.51%	96.03%	96.77%	97.10%	97.41%	97.51%
BAT charged by PV max. efficiency	98.37%	98.45%	98.22%	98.31%	95.96%	96.57%	98.37%	98.45%	98.22%	98.31%
BAT charged/discharged to AC max. efficiency	97.32%	97.34%	97.50%	97.50%	97.04%	97.29%	97.32%	97.34%	97.50%	97.50%
Protection
Anti-islanding protection	Yes
Output over current protection	Yes
Short circuit protection	Yes
Surge protection	/				DC Type II / AC Type II (Optional)
Integrated AFCI 2.0	Optional
Integrated DC switch	Yes
DC reverse-polarity protection	Yes
PV over voltage protection	Yes
Battery reverse protection	Yes
General Data
Max. allowable phase imbalance (grid & back-up)	100%
Max. power per phase (grid & back-up)	50% rated power
Dimensions (W x H × D)	600 x 500 x 210 mm		600 x 500 x 230 mm		600 x 500 x 210 mm				600 x 500 x 230 mm
Weight	27.6 kg		30.2 kg		26.4 kg		27.6 kg		30.2 kg
Topology	Transformerless
Self-consumption (night)	< 25 W
Operating ambient temperature range	-25~+60°C
Relative humidity	0 - 100%
Ingress protection	IP66
Noise emission (typical)	< 46.9 dB(A)
Cooling concept	Natural cooling
Max. operation altitude	4000 m
Grid connection standard	G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/ UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Safety /EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3
Features
PV connection	MC4 connector
Battery connection	Quick connection plug
AC connection	Quick connection plug
Display	LED indicator & Bluetooth + APP
Communication	CAN, RS485, Optional: Wi-Fi, Cellular, LAN
