Deye AI-W5.1-3P1-EU-B ALL-IN-ONE HYBRID LV SOLAR INVERTER 1PH
617~740 €/pcVAT excluded
- Product Description
+39 3444606026/+31610999937
Deye LV All-in-one Residential ESS
Safe & Reliable / Smart / User-friendly
Integrated 3.6kW~8kW Single Phase hybrid
5-12kw 3PH
Inverter and capacity of 5kWh~30kWh battery

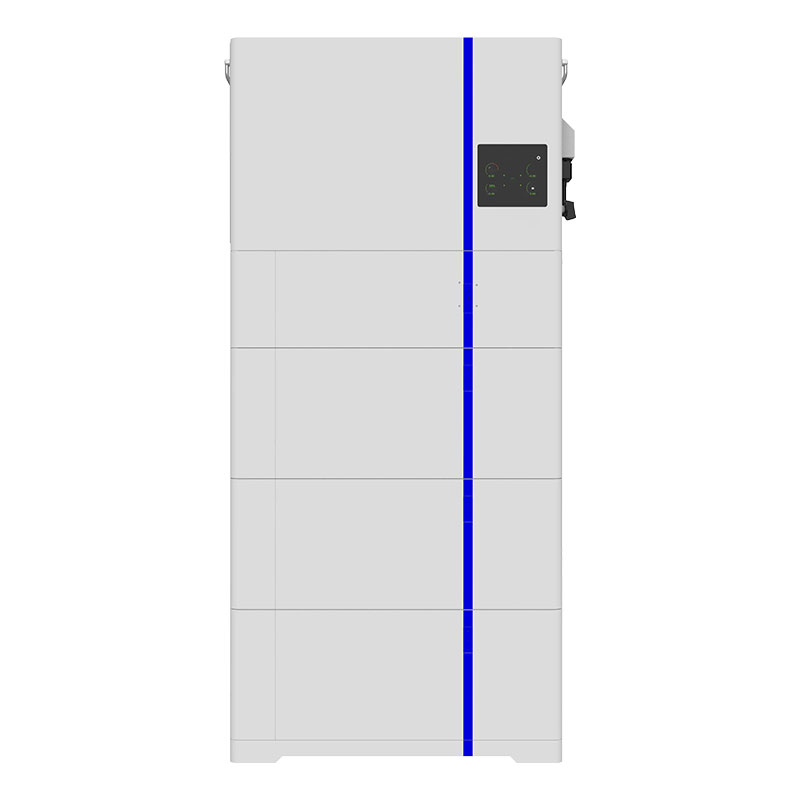

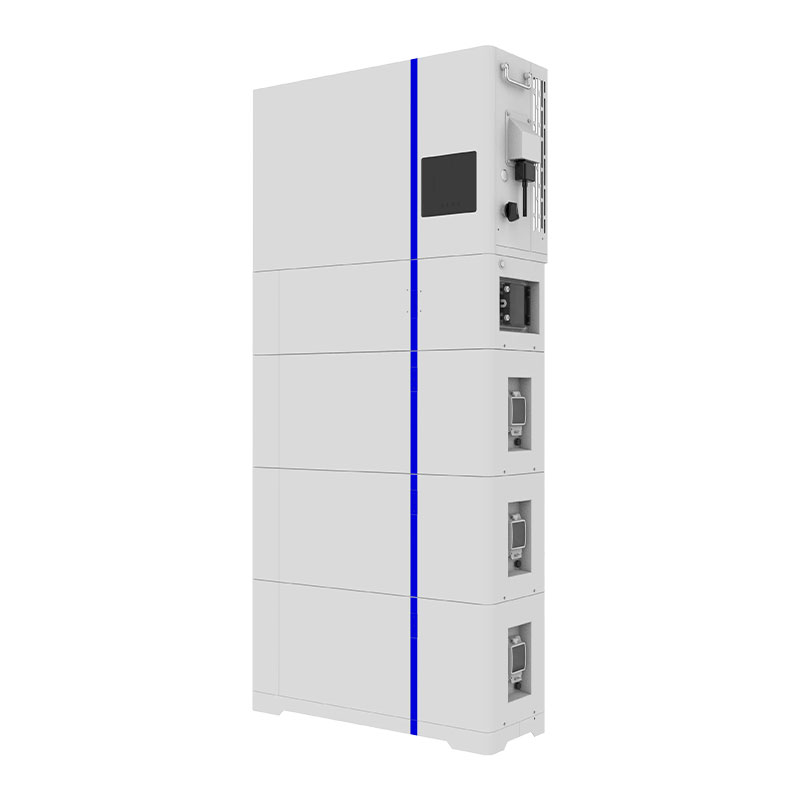

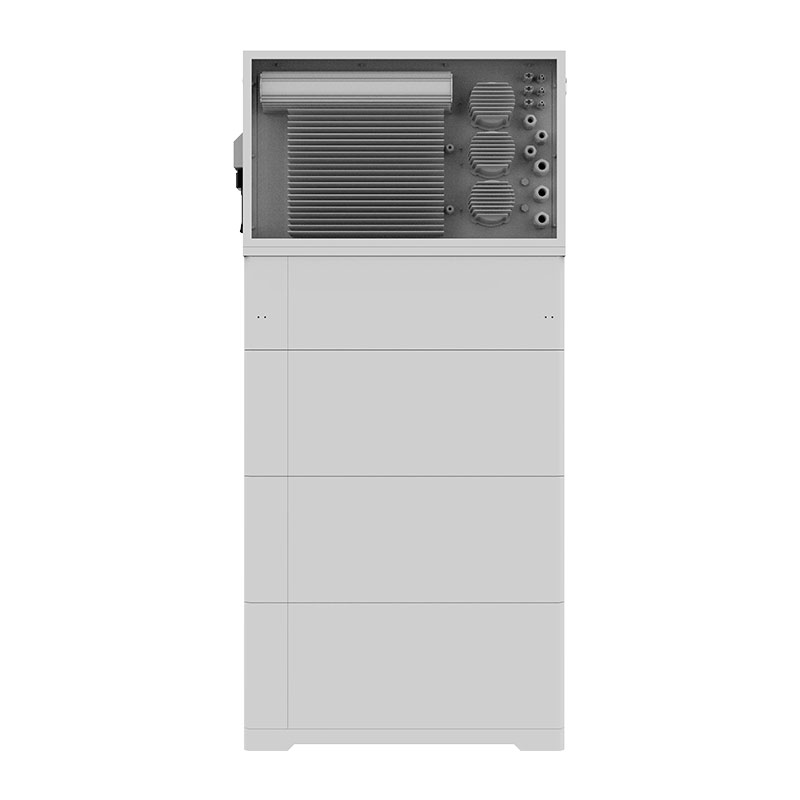

The AI-W5.1-B-ESS is an all-in-one battery storage system designed for home storage and backup power.
All-in-one integrated design with a hybrid inverter and modular battery storage
Output power ranges from 3.6 kW to 8 kW
Modular battery from 5 kWh to 30 kWh capacity
6000+ cycles and 10-year warranty
Floor-mounted, stackable panels for flexible installation
| Model | AI-W5.1-3.6P1-EU-B | AI-W5.1-5P1-EU-B | AI-W5.1-6P1-EU-B | AI-W5.1-7.6P1-EU-B | AI-W5.1-8P1-EU-B |
| System Specification | |||||
| Nominal Output Power/UPS Power (W) | 3600/3600 | 5000 / 5000 | 6000 / 6000 | 7600/7600 | 8000 / 8000 |
| AC Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac | ||||
| Grid Type | Single Phase | ||||
| Recommended Energy Configuration | 5kWh(Min.) | 10kWh(Min.) | |||
| Max. Charging/Discharging Current (A) | 90 | 120 | 135 | 190 | 190 |
| Battery Operating Voltage (V) | 43.2 ~ 57.6 | ||||
| Battery Chemistry | LiFePO4 | ||||
| IP Rating of Enclosure | IP65 (after stacking) | ||||
| System Certification | IEC62619, IEC60730, CE, VDE2510-50, CEI 0-21 | ||||
| Warranty[1] | Battery 10 years (Inverter 5 years) | ||||
| Inverter Technical Specification | |||||
| Max. PV Input Power (W) | 4680 | 6500 | 7800 | 9880 | 10400 |
| Rated PV Input Voltage (Vdc) | 370 (125~500) | ||||
| Start Up DC Voltage (Vdc) | 125 | ||||
| MPPT Voltage Range (Vdc) | 150-425 | ||||
| Full Load DC Voltage Range (V) | 300~425 | 200~425 | |||
| Max. PV Input Current (A) | 13+13 | 26+26 | |||
| Max. PV Short-circuit Current (A) | 17+17 | 34+34 | |||
| No. of MPP Trackers | 2 | ||||
| Peak Power (off grid) | 2 time of rated power, 10s | ||||
| Power Factor | 0.8 leading to 0.8 lagging | ||||
| DC injection current (mA) | THD<3% (Linear load<1.5%) | ||||
| Display | LCD | ||||
| Relative Humidity | 15% ~ 85% (No Condensing) | ||||
| Dimension (W x D x H,mm) | 720x255x330 | ||||
| Weight (kg) | 34 | ||||
| Communication with BMS | CAN2.0 | ||||
| Safety | IEC/EN 62109-1,IEC/EN 62109-2,IEC/EN 61000-6-1, IEC/EN 61000-6-2,IEC/EN 61000-6-3,IEC/EN 61000-6-4 |
||||
| Grid Regulation | VDE4105,IEC61727/62116,VDE0126,AS4777.2,CEI 0-21,EN50549-1, G98,G99,C10-11,UNE217002,NBR16149/NBR16150 |
||||
| Max. Efficiency | 97.6% | ||||
| Max. charging/discharging efficiency | 95.5% | ||||
| Battery Technical Specification | |||||
| Nominal Voltage (V) | 51.2 | ||||
| Battery Module Energy (kWh) | 5.12 | ||||
| Module Scalability | Max.36 pcs in parallel(Max. capacity of 184kWh) | ||||
| Battery Module Dimension | 720*255*300(W x D x H, mm) | ||||
| Battery Base Dimension | 720*255*68(W x D x H, mm) | ||||
| Battery PDU3 Dimension | 720*255*228(W x D x H, mm) | ||||
| Battery Module Weight (kg) | 53 | ||||
| Operating Temperature Range | Charge: 0～55℃ / Discharge: -20℃～+55℃ | ||||
| Cycle Life | ≥6000(25℃ ±2℃,0.5C/0.5C,90%DOD,70%EOL) | ||||
| Battery Module Certification | IEC62619, CE, UK, VDE2510-50, CEI 0-21, UN38.3, CE-LVD, CEC | ||||
| Model | Accessories Parts Description | Remark |
| AI-W5.1-B Module (individual package) |
5.12kWh Battery Module (Standard Configuration) |
Stacked battery modules, each 5.12kWh, a single inverter can be stacked and installed 1~6 (battery capacity 5~30kWh), the maximum expansion of 36 modules to 184kWh. |
| AI-W5.1-PDU3-B+Base (individual package) (Optional 1) |
Power Distribute Unit Ⅲ (Included) |
Battery power and communication quickly interface connect with Inverter and LED display system status, only support 2~6 modules expansion, capacity 10~30kWh. |
| AI-W5.1-Base (Included) |
The bottom support seat | |
| AI-W5.1-PDU2-B+Base (individual package) (Optional 2) |
Power Distribute Unit Ⅱ (Included) |
Battery power and communication quickly interface connect with Inverter and LED display system status, If the system is configured with more than 6 modules and less than 36 modules, this accessory is required, and PDU3 is not required. |
| AI-W5.1-Base (Included) |
The bottom support seat | |
| AI-W5.1-BCable1500 (Included) |
Battery power and communication cable for external battery parallel expansion. This line is not needed for 2~6 modules, and this line is required for parallel connection when there are more than 6 modules. |
