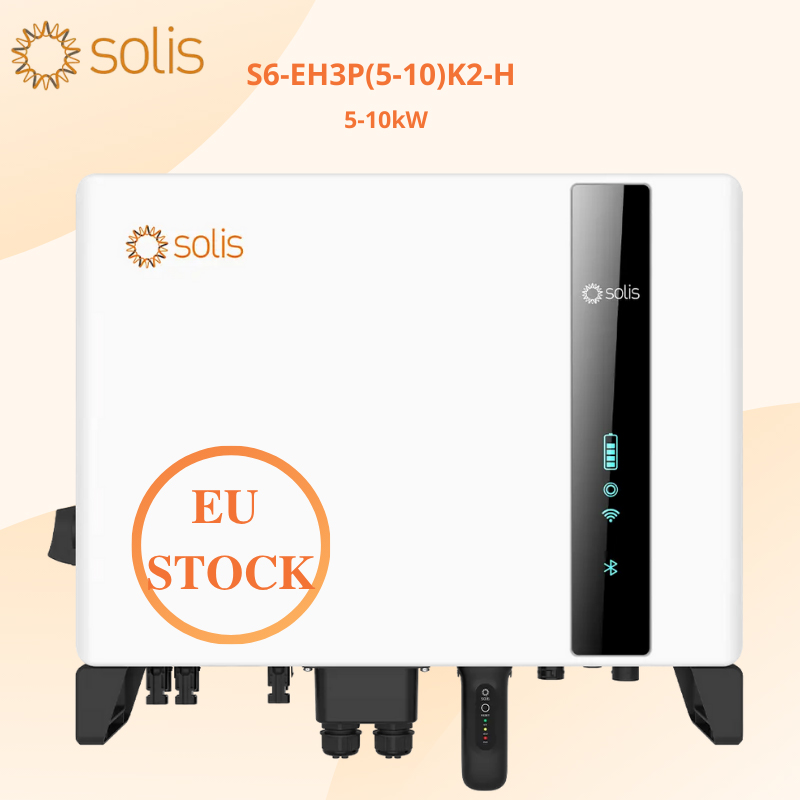

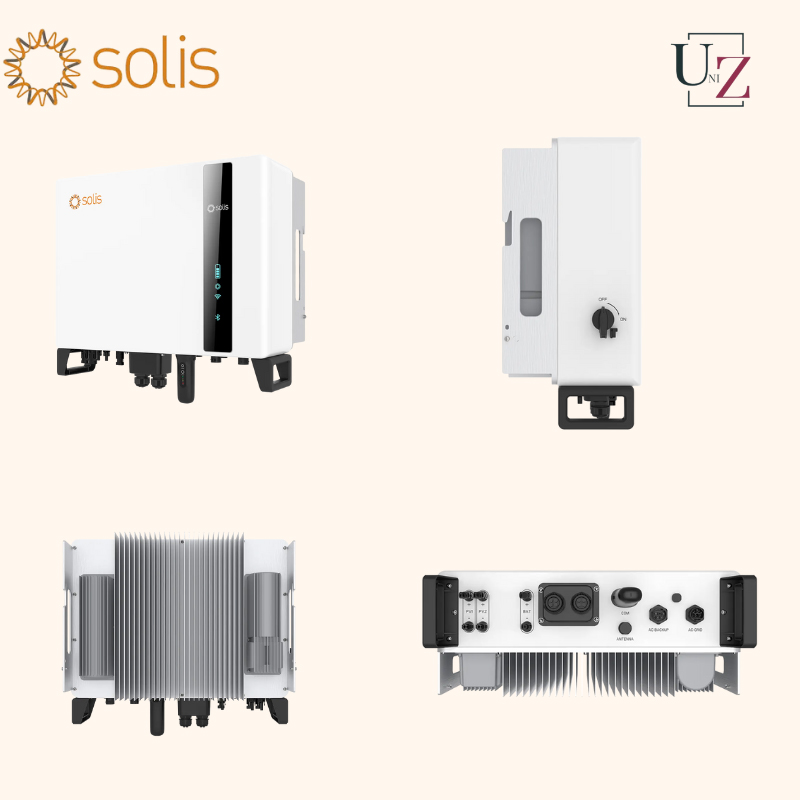

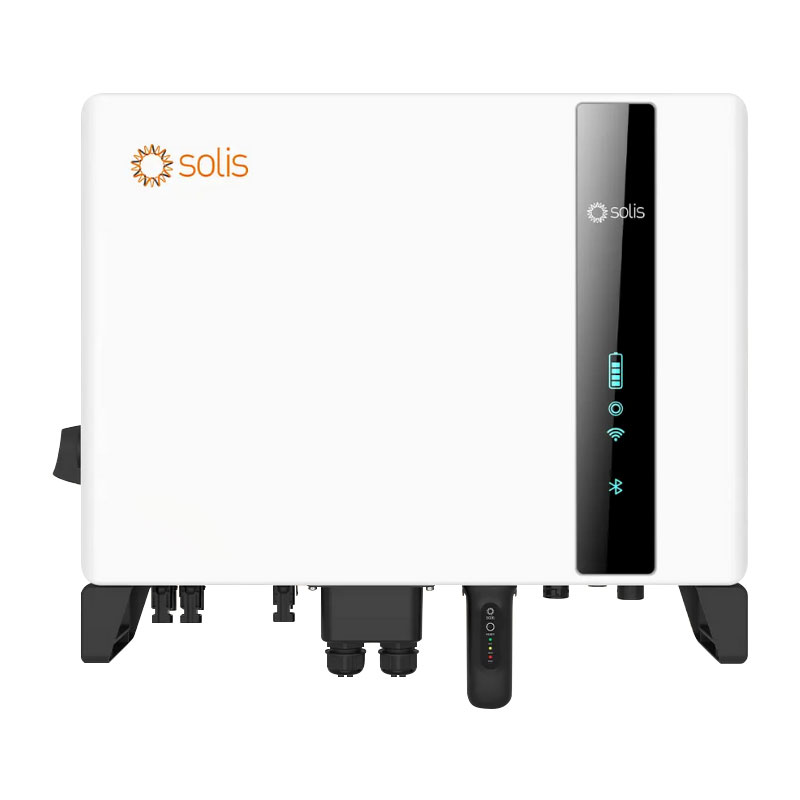

Solis S6-EH3P6K2-H Three-phase Energy Storage Inverter
1040 - 1080 €/pcVAT excluded
- Product Description
+39 3444606026/+31610999937
The S6-EH3P6K2-H three-phase energy storage inverter is tailored for high-capacity home systems and small business PV storage setups. Its 50A/10kW charge/discharge ability ranks at the top of this power segment, maximizing solar energy utilization during daylight hours. With a continuous load support of 10kW, it can handle virtually all residential energy requirements. Built with multiple layers of protection and certified IP66, it guarantees safe and stable performance in demanding environments.
| Models | 5K | 6K | 8K | 10K |
| Input DC(PV side) | ||||
| Recommended max. PV array size | 10 kW | 12 kW | 16 kW | 20 kW |
| Max. usable PV input power | 8 kW | 9.6 kW | 12.8 kW | 16 kW |
| Max. input voltage | 1000 V | |||
| Rated voltage | 600 V | |||
| Start-up voltage | 160 V | |||
| MPPT voltage range | 200-850 V | |||
| Max. input current | 16 A/16 A | |||
| Max. short circuit current | 24 A / 24 A | |||
| MPPT number/Max.input strings number | 2/2 | |||
| Battery | ||||
| Battery type | Li-ion | |||
| Battery voltage range | 120-600V | |||
| Max. charge/ discharge power | 5 kW | 6 kW | 8 kW | 10 kW |
| Max. charge/ discharge current | 25 A | 50 A | ||
| Communication | CAN/RS485 | |||
| Output AC (Grid side) | ||||
| Rated output power | 5 kW | 6 kW | 8 kW | 10 kW |
| Max. apparent output power | 5 kVA | 6 kVA | 8 kVA | 10 kVA |
| Rated grid voltage | 3/N/PE, 380 V / 400 V | |||
| Rated grid frequency | 50 Hz / 60 Hz | |||
| Rated grid output current | 7.6 A / 7.2 A | 9.1 A / 8.7 A | 12.2 A / 11.5 A | 15.2 A / 14.4 A |
| Max. output current | 7.6 A / 7.2 A | 9.1 A / 8.7 A | 12.2 A / 11.5 A | 15.2 A / 14.4 A |
| Power factor | >0.99 (0.8 leading - 0.8 lagging) | |||
| THDi | <3% | |||
| Input AC (Grid side) | ||||
| Max. input power | 7.5 kW | 9 kW | 12 kW | 15 kW |
| Rated input current | 11.4 A | 13.8 A | 18.2 A | 22.8 A |
| Rated input voltage | 3/N/PE, 380 V / 400 V | |||
| Rated input frequency | 50 Hz / 60 Hz | |||
| Output AC (Back-up) | ||||
| Rated output power | 5 kW | 6 kW | 8 kW | 10 kW |
| Max. apparent output power | 8 kVA, 60 sec | 9.6 kVA, 60 sec | 12.8 kVA, 60 sec | 16 kVA, 60 sec |
| Back-up switch time | <10 ms | |||
| Rated output voltage | 3/N/PE, 380 V / 400 V | |||
| Rated frequency | 50 Hz / 60 Hz | |||
| Rated output current | 7.6 A / 7.2 A | 9.1 A / 8.7 A | 12.2 A / 11.5 A | 15.2 A / 14.4 A |
| THDv (@linear load) | <2% | |||
| Efficiency | ||||
| Max. efficiency | 96.50% | 97.00% | 97.50% | 97.90% |
| EU efficiency | 96.80% | 97.10% | 97.40% | 97.50% |
| BAT is charged by PV Max. efficiency | 98.40% | 98.50% | 98.20% | 98.30% |
| BAT charged/discharged to AC Max. efficiency | 97.30% | 97.30% | 97.50% | 97.50% |
| Protection | ||||
| Anti-islanding protection | Yes | |||
| Output over current protection | Yes | |||
| Short circuit protection | Yes | |||
| Integrated AFCI 2.0 | Optional | |||
| Integrated DC switch | Yes | |||
| DC reverse-polarity protection | Yes | |||
| PV over voltage protection | Yes | |||
| Battery reverse protection | Yes | |||
| General Data | ||||
| Dimensions (W*H*D) | 600*500*210 mm | 600*500*230 mm | ||
| Weight | 27.6 kg | 30.2 kg | ||
| Topology | Transformerless | |||
| Self-consumption (night) | <25 W | |||
| Operating ambient temperature range | -25 ~ +60°C | |||
| Relative humidity | 0-95% | |||
| Ingress protection | IP66 | |||
| Cooling concept | Natural convection | |||
| Max. operation altitude | 4000 m | |||
| Grid connection standard | G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15/VFR:2019, RD 1699/RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA |
|||
| Safety/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3 | |||
| Features | ||||
| PV connection | MC4 connector | |||
| Battery connection | Quick connection plug | |||
| AC connection | Quick connection plug | |||
| Display | LED + Bluetooth + APP | |||
| Communication | CAN, RS485, Optional: Wi-Fi, Cellular, LAN | |||
