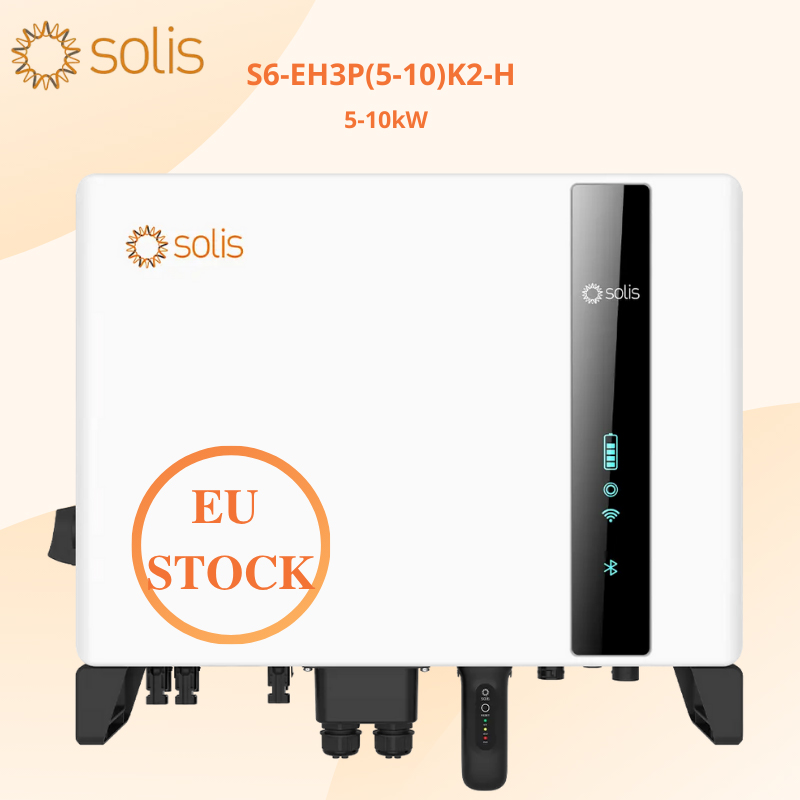

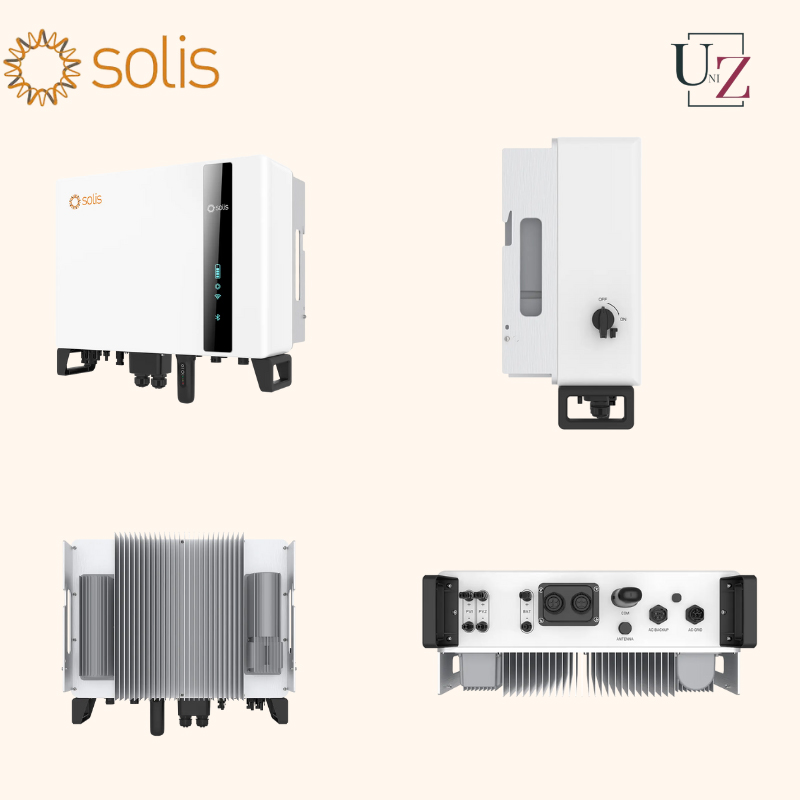

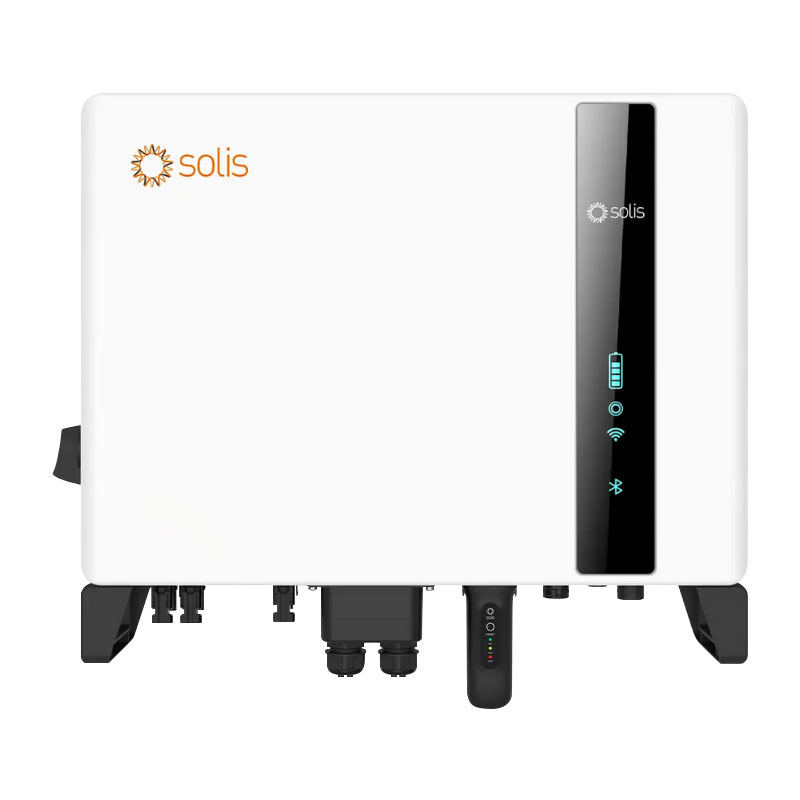

Solis S6-EH3P8K2-H Commercial Energy Storage Inverter

1090 - 1140 €/pcVAT excluded

Models	5K	6K	8K	10K
Input DC(PV side)
Recommended max. PV array size	10 kW	12 kW	16 kW	20 kW
Max. usable PV input power	8 kW	9.6 kW	12.8 kW	16 kW
Max. input voltage	1000 V
Rated voltage	600 V
Start-up voltage	160 V
MPPT voltage range	200-850 V
Max. input current	16 A/16 A
Max. short circuit current	24 A / 24 A
MPPT number/Max.input strings number	2/2
Battery
Battery type	Li-ion
Battery voltage range	120-600V
Max. charge/ discharge power	5 kW	6 kW	8 kW	10 kW
Max. charge/ discharge current	25 A		50 A
Communication	CAN/RS485
Output AC (Grid side)
Rated output power	5 kW	6 kW	8 kW	10 kW
Max. apparent output power	5 kVA	6 kVA	8 kVA	10 kVA
Rated grid voltage	3/N/PE, 380 V / 400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	7.6 A / 7.2 A	9.1 A / 8.7 A	12.2 A / 11.5 A	15.2 A / 14.4 A
Max. output current	7.6 A / 7.2 A	9.1 A / 8.7 A	12.2 A / 11.5 A	15.2 A / 14.4 A
Power factor	>0.99 (0.8 leading - 0.8 lagging)
THDi	<3%
Input AC (Grid side)
Max. input power	7.5 kW	9 kW	12 kW	15 kW
Rated input current	11.4 A	13.8 A	18.2 A	22.8 A
Rated input voltage	3/N/PE, 380 V / 400 V
Rated input frequency	50 Hz / 60 Hz
Output AC (Back-up)
Rated output power	5 kW	6 kW	8 kW	10 kW
Max. apparent output power	8 kVA, 60 sec	9.6 kVA, 60 sec	12.8 kVA, 60 sec	16 kVA, 60 sec
Back-up switch time	<10 ms
Rated output voltage	3/N/PE, 380 V / 400 V
Rated frequency	50 Hz / 60 Hz
Rated output current	7.6 A / 7.2 A	9.1 A / 8.7 A	12.2 A / 11.5 A	15.2 A / 14.4 A
THDv (@linear load)	<2%
Efficiency
Max. efficiency	96.50%	97.00%	97.50%	97.90%
EU efficiency	96.80%	97.10%	97.40%	97.50%
BAT is charged by PV Max. efficiency	98.40%	98.50%	98.20%	98.30%
BAT charged/discharged to AC Max. efficiency	97.30%	97.30%	97.50%	97.50%
Protection
Anti-islanding protection	Yes
Output over current protection	Yes
Short circuit protection	Yes
Integrated AFCI 2.0	Optional
Integrated DC switch	Yes
DC reverse-polarity protection	Yes
PV over voltage protection	Yes
Battery reverse protection	Yes
General Data
Dimensions (WHD)	600500210 mm		600500230 mm
Weight	27.6 kg		30.2 kg
Topology	Transformerless
Self-consumption (night)	<25 W
Operating ambient temperature range	-25 ~ +60°C
Relative humidity	0-95%
Ingress protection	IP66
Cooling concept	Natural convection
Max. operation altitude	4000 m
Grid connection standard	G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15/VFR:2019, RD 1699/RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Safety/EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3
Features
PV connection	MC4 connector
Battery connection	Quick connection plug
AC connection	Quick connection plug
Display	LED + Bluetooth + APP
Communication	CAN, RS485, Optional: Wi-Fi, Cellular, LAN
