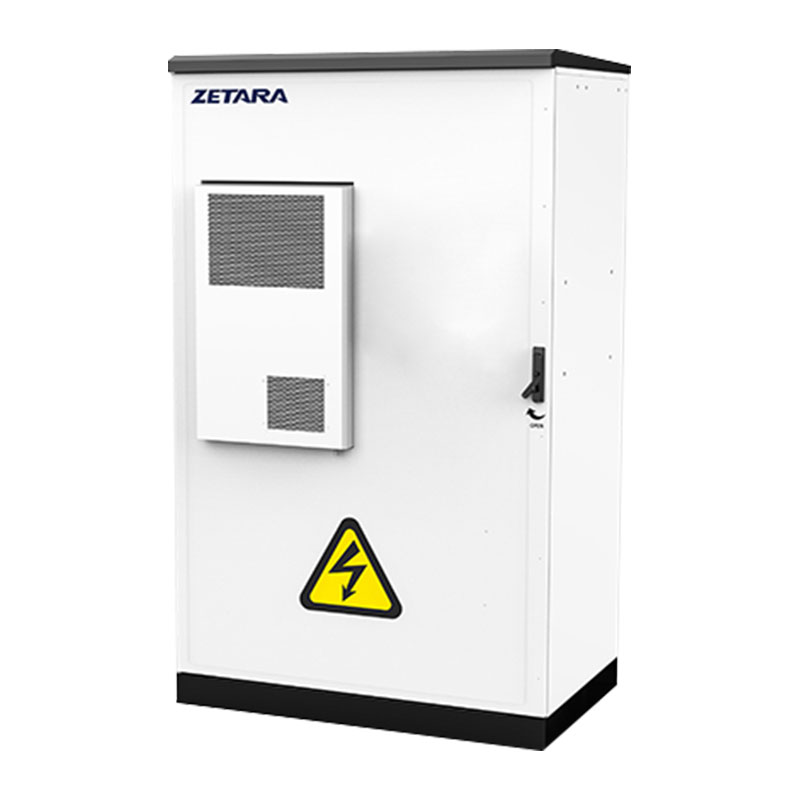

Zetara Magic - ZBox100（100kwh battery）

16,500~17,500 €VAT excluded

Inquiry Us Add Product

PREV: 4.8MWh Walk-In BESS NEXT: Zetara Magic -Zbox200-768V280Ah

Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

The ZBox100 system is designed for outdoor high-voltage battery applications. Equipped with industrial-grade air conditioning, it maintains optimal operating temperature for stable system performance. Supporting 1C charge/discharge, it is well-suited for small to medium-sized industrial and commercial scenarios, such as enhancing solar self-consumption and providing backup power.

Economical & Efficient
·High energy efficiency for optimized performance
·Factory pre-assembled, fast deployment and easy transportation
·Advanced thermal management improves battery lifespan and system discharge capacity

Real-time Monitoring And Control
·24/7 real-time monitoring and control, both remote and on-site
·Intelligent early warning system, automated safety checks and elimination of potential hazards

Safety & Reliable
·Multi-stage overcurrent protection with no blind spots in electrical safety
·Integrated multi-layer fire protection to prevent fire and explosion risks
·IP55-rated waterproof and anti-corrosion design for long-term outdoor use, 15 years of reliability

Model	Magic-ZBox100 （ZBox100RN）
	50KWh	70KWh	87KWh	100KWh
Battery Parameter
Cell Type	LFP
Battery Moudule Nominal Voltage	51.2V
Battery Module Energy (Wh)	5120
Rated Voltage (V)	512	716.8	870.4	512
Voltage Range (V)	448-576	627.2-806.4	761.6-979.2	448-576
Rated Capacity (Ah)	100			200
Recommend Charge/Discharge Current (A)	50/50			100/100
Rated Energy (kWh)	51.2	71.68	87.04	102.4
Max. Continuous Charge/ Discharge Current (A)	100/100			200/200
General Parameter
Dimension(WDH) (mm)	12009002060
IP Rating	IP55
Anticorrosion Grade	StandardC4
Total Weight (kg)	670	850	980	1140
Cooling Mode	HVAC
Fire Fighting	Integrated
Operating Temperature (°C)	-20- 50
Operating Humidity	0%-95%R.H
Communication Port	CAN, RS485, ETH
Parallel	Max. 3 cabinets			Max. 2 cabinets
Compliance
Safety & Certification	IEC62619, CE, EMC, UN38.3, UN3480
