Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

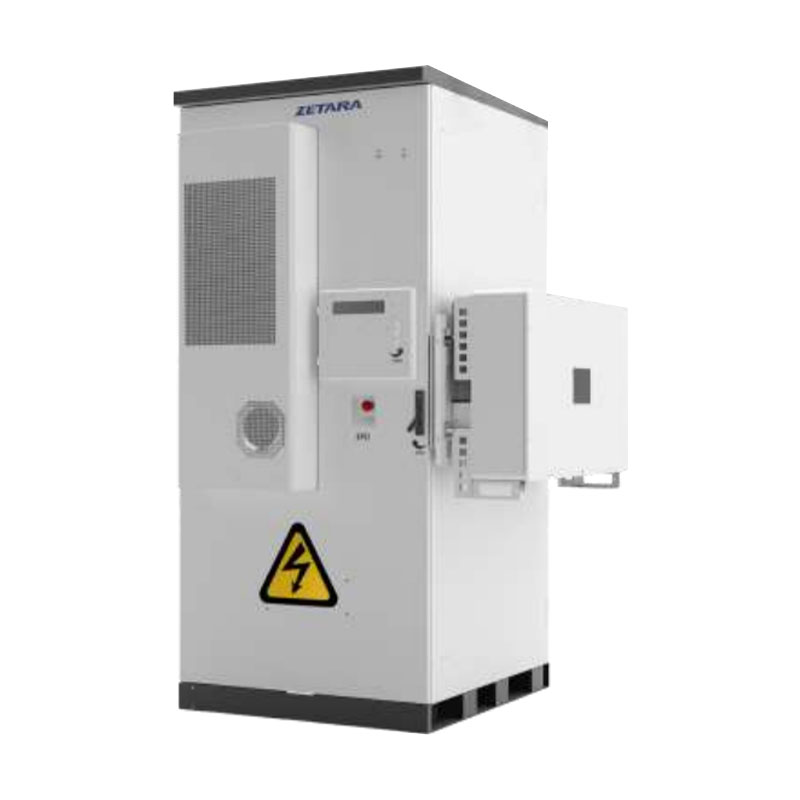

The Magic-ZBox200-DC is an enhanced energy storage system specially designed for retrofitting existing PV systems via DC-side coupling. It ensures reliable power supply and energy security in upgraded solar applications.

Multi-Scenario Adaptability
·Supports retrofit of existing on-systems into hybrid energy storage systems

Real-time monitoring and Control
·24/7 real-time monitoring and control,
·both remote and on-site Intelligent early warning system, automated safety checks and elimination of potential hazards

Flexible & expandable
·DC-coupled architecture with 24 MPPT inputs and 12 MPPT outputs
·Supports one PV controller matched with multiple battery cabinets

Economical & Efficient
·High energy efficiency for optimized performance
·Factory pre-assembled, fast deployment and easy transportation
·Advanced thermal management improves battery lifespan and system discharge capacity

Model	Magic-ZBox200-DC
PV Parameter
Max. Input Power (kW)	200
Input Voltage Range (V)	300-1000
Rated Input Voltage (V)	630
Max Current per MPPT Input (A)	26
Number of MPPT Tracks/Strings	12/24
Rated Output Power (kW)	100
Output Voltage Range (V)	500-1000
Max Output Current (A)	26
Output Strings/Tracks	12/12
Battery Parameter
Cell Type (Ah)	LFP280
Battery Module Rated Voltage (V)	51.2
Battery Module Energy (kWh)	14.336
Rated Voltage (V)	768
Voltage Range (V)	672-864
Battery Energy (kWh)	215
General Parameter
Max Efficiency	≥ 92%
IP Rating	Battery: IP55 DC/DC: IP65
Anticorrosion Grade	StandardC4
Cooling Mode	Battery: HVAC DC/DC:Air Cooling
Operating Temperature (C)	-20- 50
Operating Humidity	0%-95%R.H
Elevation (m)	<2000
Fire Fighting	Integrated
Dimension(WDH) (mm)	141011502340
Total Weight (kg)	2300
Max. charging/discharging rate	0.5C/0.5C
Communication port	CAN, RS485, ETH
