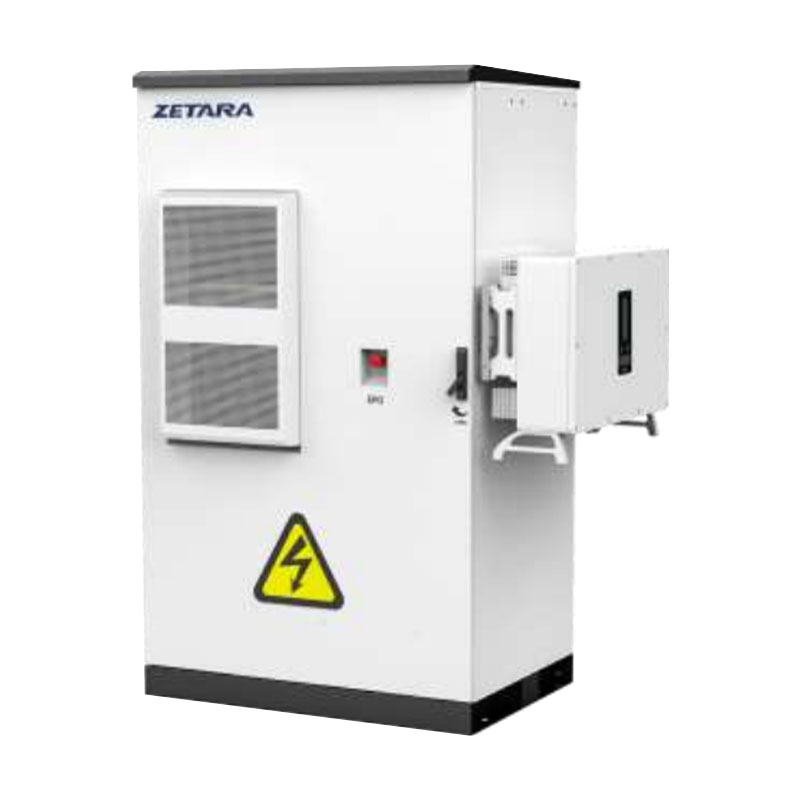

Zetara Magic – ZBox100-HS

customizedVAT excluded

Inquiry Us Add Product

PREV: Zetara Magic -Zbox200-768V280Ah NEXT: Zetara Magic – ZBox200-DC

Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

The Magic-ZBox100-HS is a power storage system specially designed for regional microgrids, such as small CBDs, farms, islands, and outdoor photovoltaic stations. It ensures a reliable power supply and energy security for off-grid or semi-grid scenarios.

Multi-Scenario Adaptability
·Multifunctional integration supporting access to PV and diesel generators
·Seamless on-grid/off-grid switching in under 20 ms

Real-time monitoring and Control
·24/7 real-time monitoring and control,
·Both remote and on-site Intelligent early warning system, automated safety checks and elimination of potential hazards

Flexible and expandable
·Single unit capacity ranging from50 kWh to 100 kWh
·Parallel expansion supports up to 600 kWh total system capacity

Economical & Efficient
·High energy efficiency for optimized performance
·Factory pre-assembled, fast deployment and easy transportation
·Advanced thermal management improves battery lifespan and system discharge capacity

Model	Magic-ZBox100-HS
AC Parameter
Rated Output Power (kW)	50
Rated AC Voltage (V)	220/380; 230/400; 240/415
Max. Output Current (A)	83
Rated AC Frequency (Hz)	50/60
Over Power	110%long time
PV Parameter
Max Input Power (kW)	75
MPPT Voltage Range (V)	200-850
No. of MPP Trackers	4
Max. Input Current (A)	30x4
Battery Parameter
Cell Type (Ah)	LFP100
Battery Module Rated Voltage (V)	51.2
Battery Module Energy (kWh)	5.12
Rated Voltage (V)	512
Voltage Range (V)	448-576
Battery Energy (kWh)	102
General Parameter
Max system Efficiency	≥90%
IP Rating	Battery Cabinet: IP55 Hybrid Inverter: IP65
Anticorrosion Grade	StandardC4
Cooling Method	HVAC
Operating Temperature Range	-20~50°℃
Operating Humidity	0%-95%R.H
Elevation (m)	<2000
Firefighting System	Integrated
Dimension (WDH) (mm)	15609002060
Total Weight (kg)	1220
Communication port	CAN, RS485, ETH
