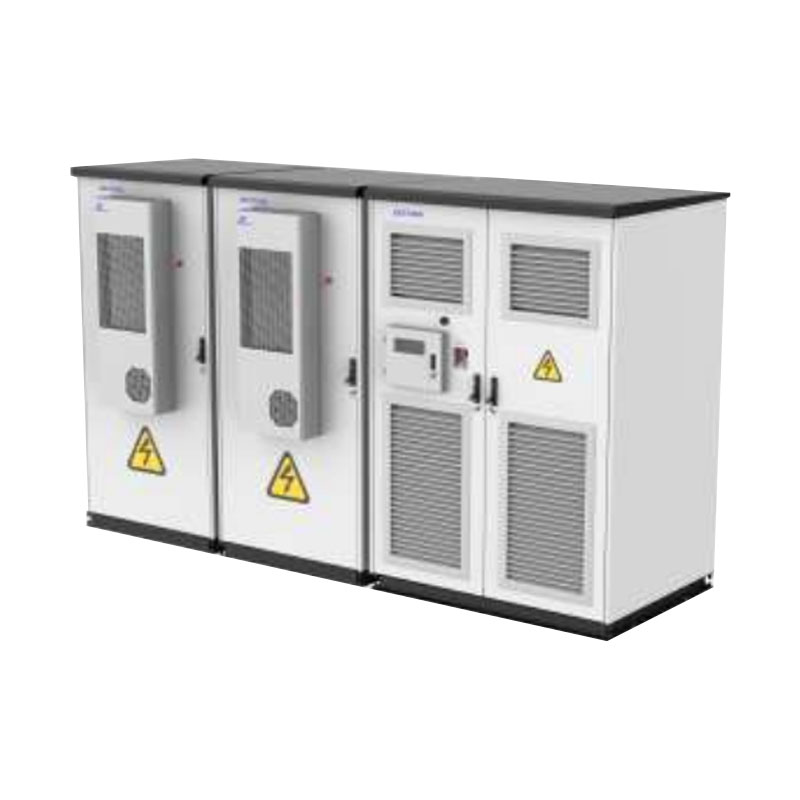

Zetara Magic – ZBox200-HF

customizedVAT excluded

Inquiry Us Add Product

PREV: Zetara Magic – ZBox200-DC NEXT: Zetara Magic – ZBox200-MF

Product Description

Uni Z International B.V. +39 3444606026/+31610999937

Uni Z International B.V. [email protected]

The ZBox200-HF integrates an energy storage converter, battery, BMS, thermal management, power distribution, fire protection, and more into a compact solution. Combining storage, power conversion, and intelligent operation and maintenance, it simplifies installation and operation. Its outdoor cabinet design allows flexible configuration, and multiple units can be connected in parallel for industrial and commercial system expansion.

Flexible Configuration
·Scalable power output from 62.5 kW to 500 kW using 1 to 8 power modules
·3P3W AC output, compatible with 400V / 480V / 208V / 690V systems via external transformer

Extensive Use
·Multiple battery strings can operate in parallel or independently, enabling flexible power and energy expansion(a 215 kWh battery cabinet supports up to 10 units in parallel)

Compliance & Compatibility
·Certified for global grid standards
·Widely listed for international market access

High Efficiency & Stability
·Maximum system efficiency up to 98.2%
·Multi-string technology enhances battery safety and overall performance

Model	Magic-ZBox200-HF
	500KW	2150KWh
AC Parameter
Rated Power (KVA)	500
AC Max Power (KVA)	550
AC Frequency (Hz)	50/60(-2.5~2.5)
AC Voltage (V)	400(-15%~15%)AC
AC PF	0.1~1 Leading or Lagging
Battery Parameter
Battery Voltage (V)	768(720~840)DC
Recommend Charge/Discharge (A)	1400/1400
Battery Capacity (KWh)	2150
Max Charge Discharge (A)	1400/2000
General	PCS: IP54 Battery: IP55
IP Grade
Dimension:WDH(mm)-PCS	160012502480
Dimension: WDH(mm)-Battery	105013102340
Anticorrosion Grade	C4
Fire Fighting	Integrated
Cooling Mode	PCS: Nature, Battery: Air Cooling
Operating Temperature(C)	-20~50
Storage Temperature(C)	-40~60
Auxiliary Power Supply(V)	230AC
Communication Protocol	CAN, RS485, Modbus TCP/IP
