Product Description

Uni Z International B.V. +39 3444606026

Uni Z International B.V. [email protected]

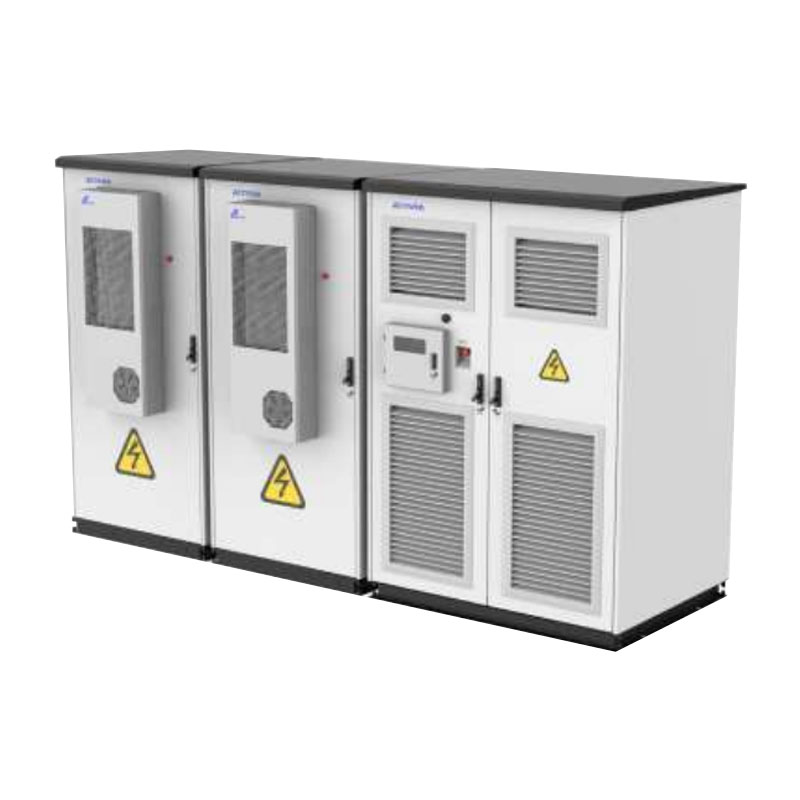

The Magic-ZBox200-MF is a power storage system specially designed for regional microgrids, including small CBDs, farms, islands, and outdoor photovoltaic stations. It ensures stable power supply and energy security in distributed and off-grid scenarios.

Multi-Scenario Adaptability
·Multifunctional integration with support for
·PV and generator access Seamless on-grid to off-grid switching in less than 20 ms

Real-time monitoring and Control
·24/7 real-time monitoring and control,
·both remote and on-site Intelligent early warning system, automated safety checks and elimination of potential hazards

Economical & Efficient
·High energy efficiency for optimized performance
·Factory pre-assembled, fast deployment, and easy transportation
·Advanced thermal management improves battery lifespan and system discharge capacity

Flexible & expandable
·Single unit capacity ranging from 100 kWh to 215 kWh
·Parallel expansion supports up to 2 MWh total battery capacity

Model	Magic-ZBox200-MF
	50P [1]	100P [2]	150P [2]	250P [3]	500P [3]
AC Parameter
Rated Power (kVA)	50	100	150	250	500
Rated Voltage (V)	400
Voltage Range(V)	320-460
Rated Current(A)	72	144	216	361	722
Rated Frequency (Hz)	50/60
Over Power	110%long time;120% 1min
PV Parameter
Rated MPPT Quantity	1	2	3	5	10
Rated MPPT Module Power (kW)	50
Max. Output Power (kW)	60	120	180	300	600
MPPT Voltage Range	250-850V
MPPT Voltage Range@full load (V)	450-850
Battery Parameter
Cell Type (Ah)	LFP 280
Rated Voltage (V)	768
Voltage Range(V)	672-850
Rated Energy (kWh)	215	215-430	215-645	430-1075	860-2150
General
Max System Efficiency	≥ 90%
IP Rating	Battery Cabinet: IP55 Hybrid Inverter: IP54
Anticorrosion Grade	StandardC4
Cooling Method	Battery: HVAC Hybrid Inverter: Forced air Cooling
Operating Temperature Range	-20-50℃
Operating Humidity	0%-95%
Elevation (m)	<2000
Firefighting System	Integrated
Communication Port	CAN, RS485, ETH

Note:

[1]ZBlock200-MF-50P is all-in-one cabinet, 2150*1320*2340mm,IP55;
[2]ZBlcok200-MF-100P/150P are separate cabinets, inverter cabinet 1600*1430*2340mm,IP54;battery cabinet 1050*1100*2340mm,IP55;
[3]ZBlock200-MF-250P/500P are separate cabinets, inverter cabinet 2100*1430*2340mm,IP54;MPPT cabinet 1600*1100*2340mm, IP54; battery cabinet 1050*1100*2340mm,IP5
