Product Description

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

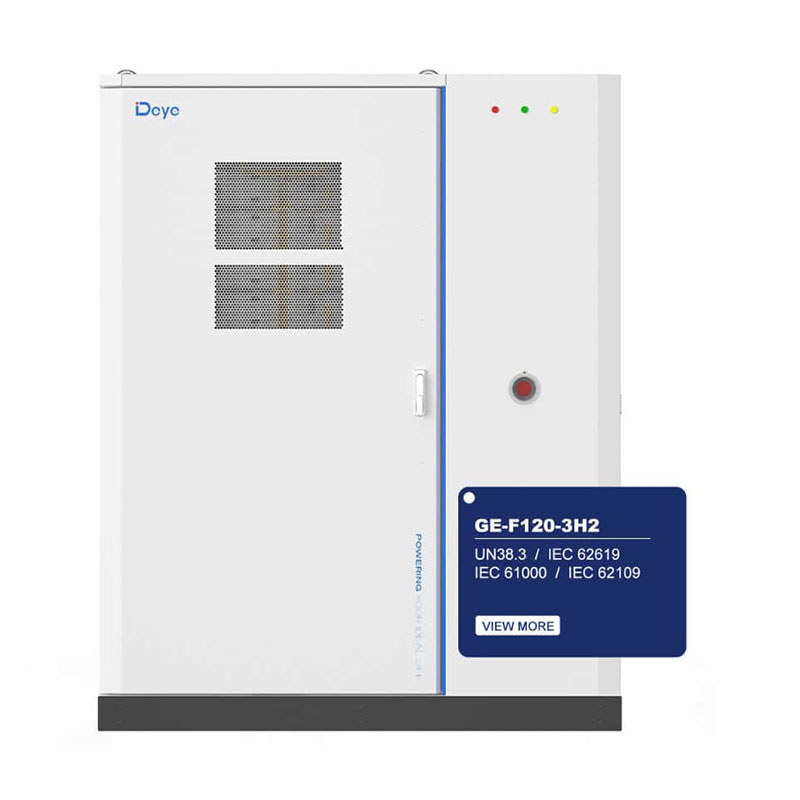

GE-F120-3H2 is a higher-power configuration in the GE-F120 cabinet family, combining a 122.8 kWh LFP battery with a 40 kW output stage to better match sites with higher demand while still delivering meaningful backup and cycling capability. It supports standard three-phase commercial voltages, offers parallel scalability for larger installations, and is packaged in an IP55 floor-mounted enclosure intended for practical C&I deployment. This configuration is a fit for customers who want stronger power delivery without moving to a larger cabinet platform.

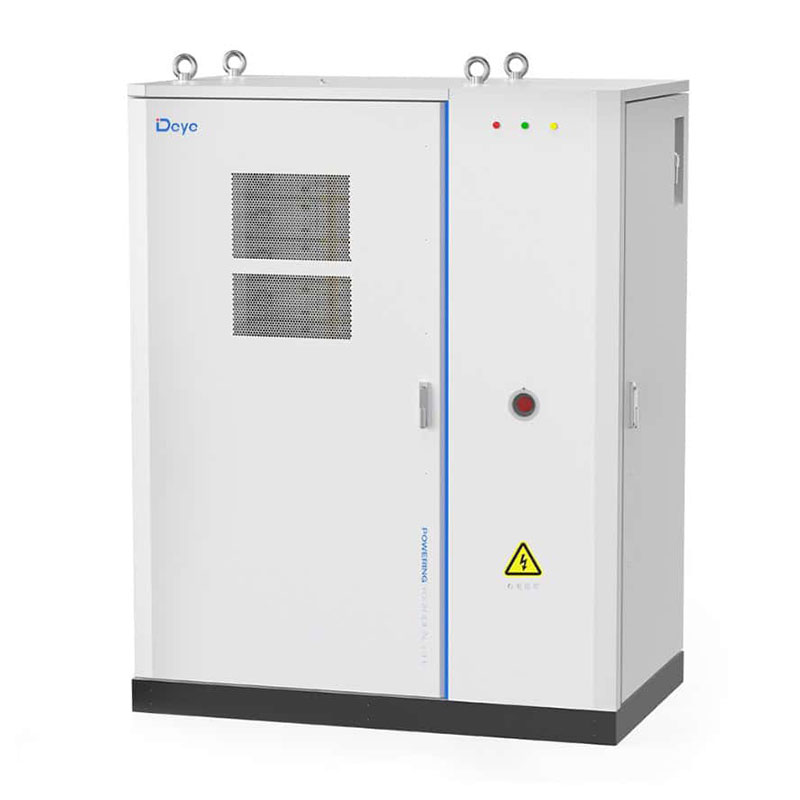

GE-F120-4H2 is an all-in-one high-voltage commercial storage cabinet configured for applications that prioritize longer discharge duration. It pairs a 122.8 kWh LFP battery system with a 30 kW power stage, supporting three-phase commercial voltages and multi-unit parallel operation for scalable projects. Designed for floor-mounted deployment with an IP55 enclosure, it targets frequent cycling scenarios such as peak-shaving and load shifting, while maintaining a 10-year warranty and defined battery voltage operating window for stable system integration.

GE-F120-3H2
Key parameters (EN)
Nominal output power / UPS power	40 kW
Energy configuration / electrical / enclosure/dimensions/warranty	Same family values (122.8 kWh; 500–700 V; IP55; 1780×1056×2235 mm; ~2090 kg; 10-year warranty)
GE-F120-4H2
Nominal output power / UPS power	30 kW
Energy configuration	122.8 kWh
Grid type	3L / N / PE;
AC output	50/60 Hz; 220/380, 230/400 Vac
Off-grid parallel	up to 10 units
Battery operating voltage	500–700 V
Battery chemistry	LiFePO₄
Max RTE	0.89
IP rating	IP55
installation	floor-mounted
Dimensions	1780 × 1056 × 2235 mm;
weight	~2090 kg
Warranty	10 years
